Cessna 182 1978 - Exhaust System Installation

MODEL
182
&
T182
SERIES
SERVICE
MANUAL
4
14
15
56
1. Right
Exhaust
Risers
2. Cabin Heat Outlet Right Hand
3. Shroud
Right
Hand
4. Clamp
Half
Right
Hand
5.
Exhaust
Stack
Assy
Right
Hand
6. Exhaust
Stack Clamp
7.
Crossover
Pipe
8. Left
Exhaust
Riser
9.
Exhaust
Stack
Assy
Left Hand
10. Turbocharger
Mount
11. Exhaust
Stack Clamp
Left Hand
12.
Crossover
Pipe
13.
Heat Guard
14.
Waste
Gate
Inlet
15. Tail Pipe

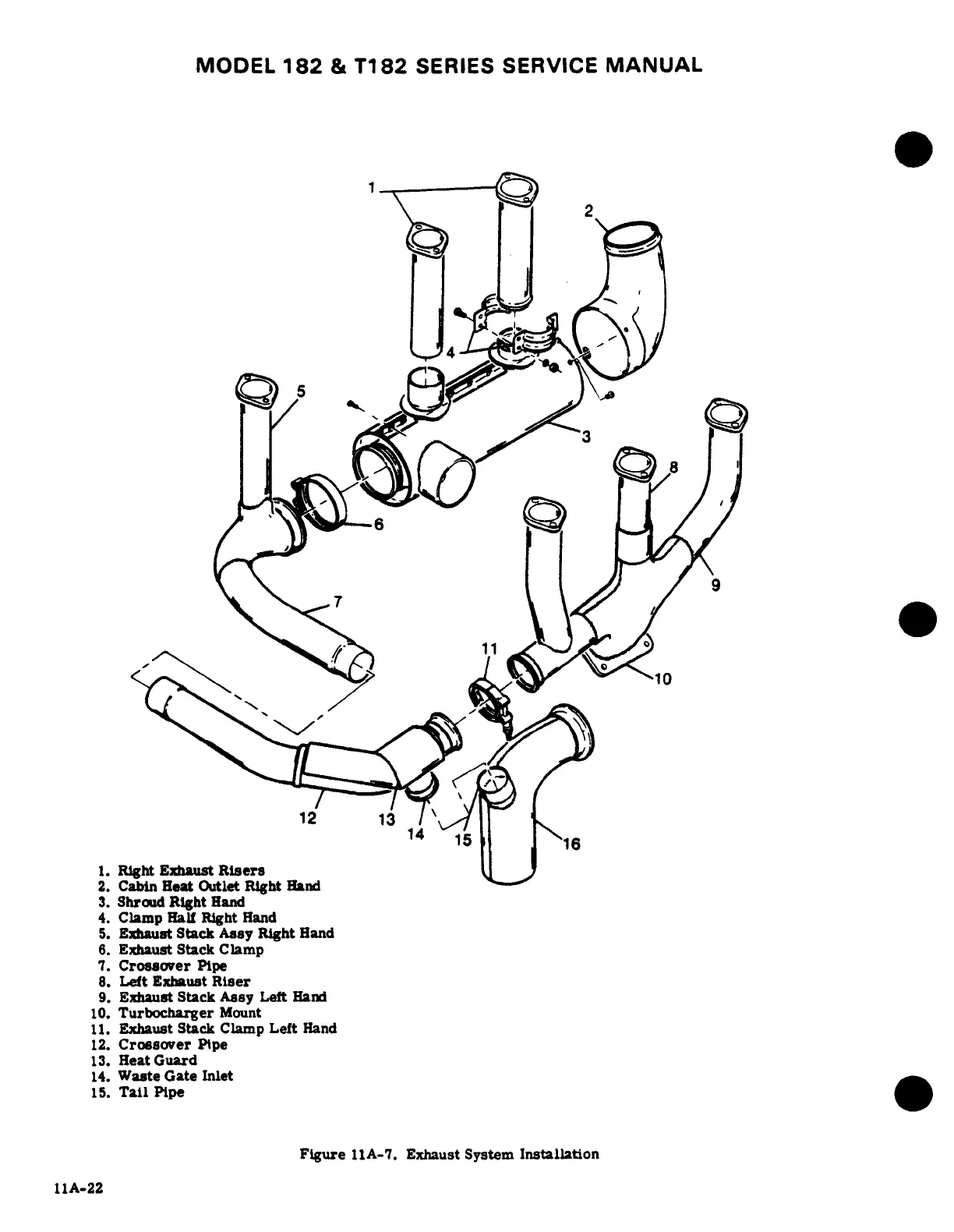

Figure
11A-7.
Exhaust
System
Installation
1 A-22
