Cessna 182 1978 - Vacuum System Installation

MODEL 182 &
T182 SERIES SERVICE
MANUAL
7
10
SERIAL 18265176 THRU 18267715
F18200026 THRU F18200169
1.
Suction Gage
8.
Bolt
2.
Directional Gyro
9. Suction Relief
Valve
3. Gyro Horizon
10. Firewall
4. Bracket
11.
Tube Locator
5. Cabin Skin
12. Overboard
Line
6.
Filter
13.
Hose
7. Washer
14. Vacuum
Pump

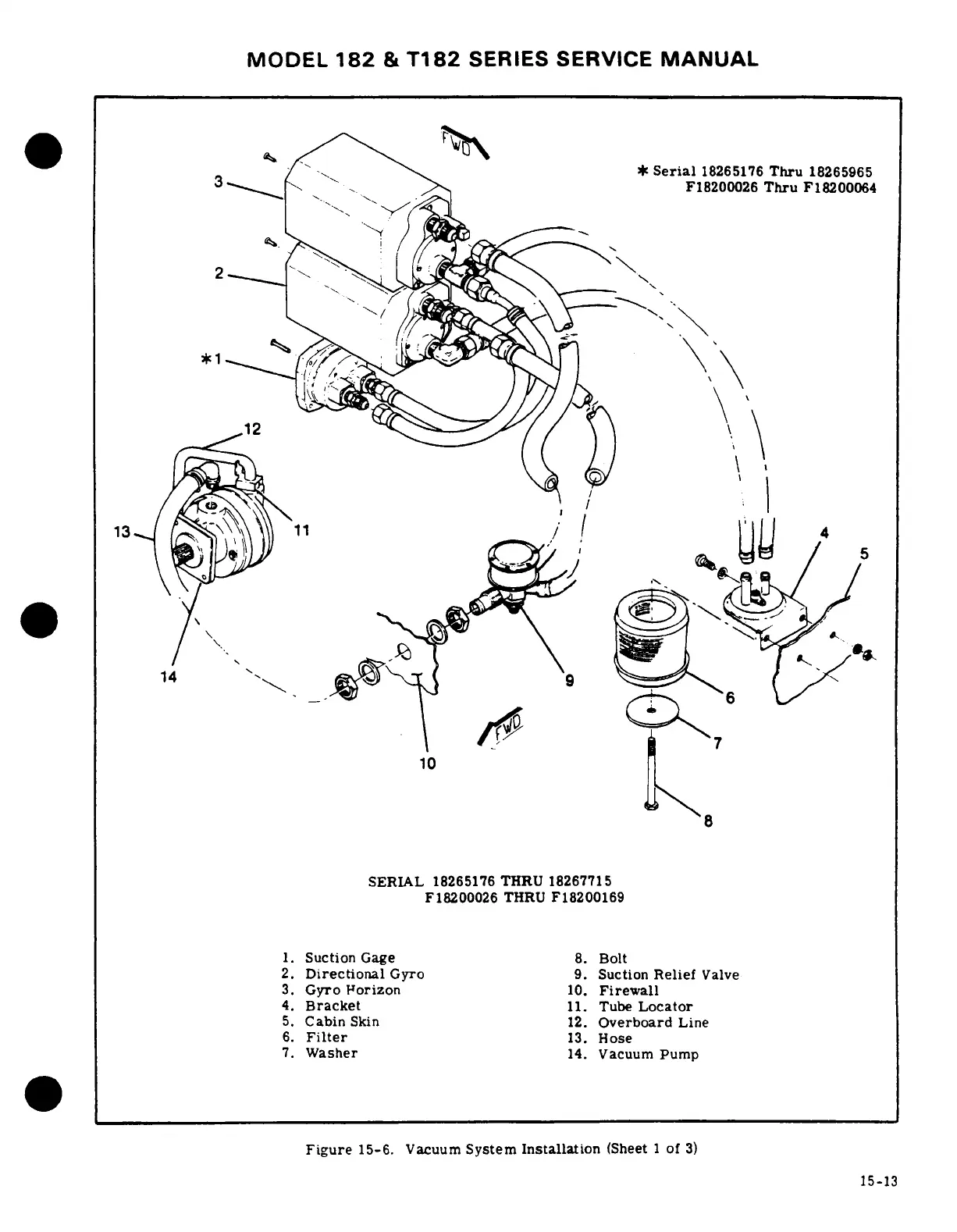

Figure 15-6. Vacuum System Installation (Sheet 1 of 3)
15-13
