Cessna 182 1978 - Page 385

MODEL 182 &
T182 SERIES SERVICE
MANUAL
12*
Beginning
With
18265966
F18200065 Thru F18200169
182 ONLY
*Thru
18268293
T
10
12*
11
BEGINNING
WITH
18268404
8.
Suction
Relief Valve
1.
Gyro Horizon
9. Firewall
2.
Directional Gyro
10. Hose
3. Suction Gage
11. Vacuum
Pump
4. Bracket
12.
Overboard Tube
5.
Filter
13. Vacuum Switch
7
6. Washer 14. Overboard Hose
7.
Bolt
15. Cover
18267716
THRU
18268434

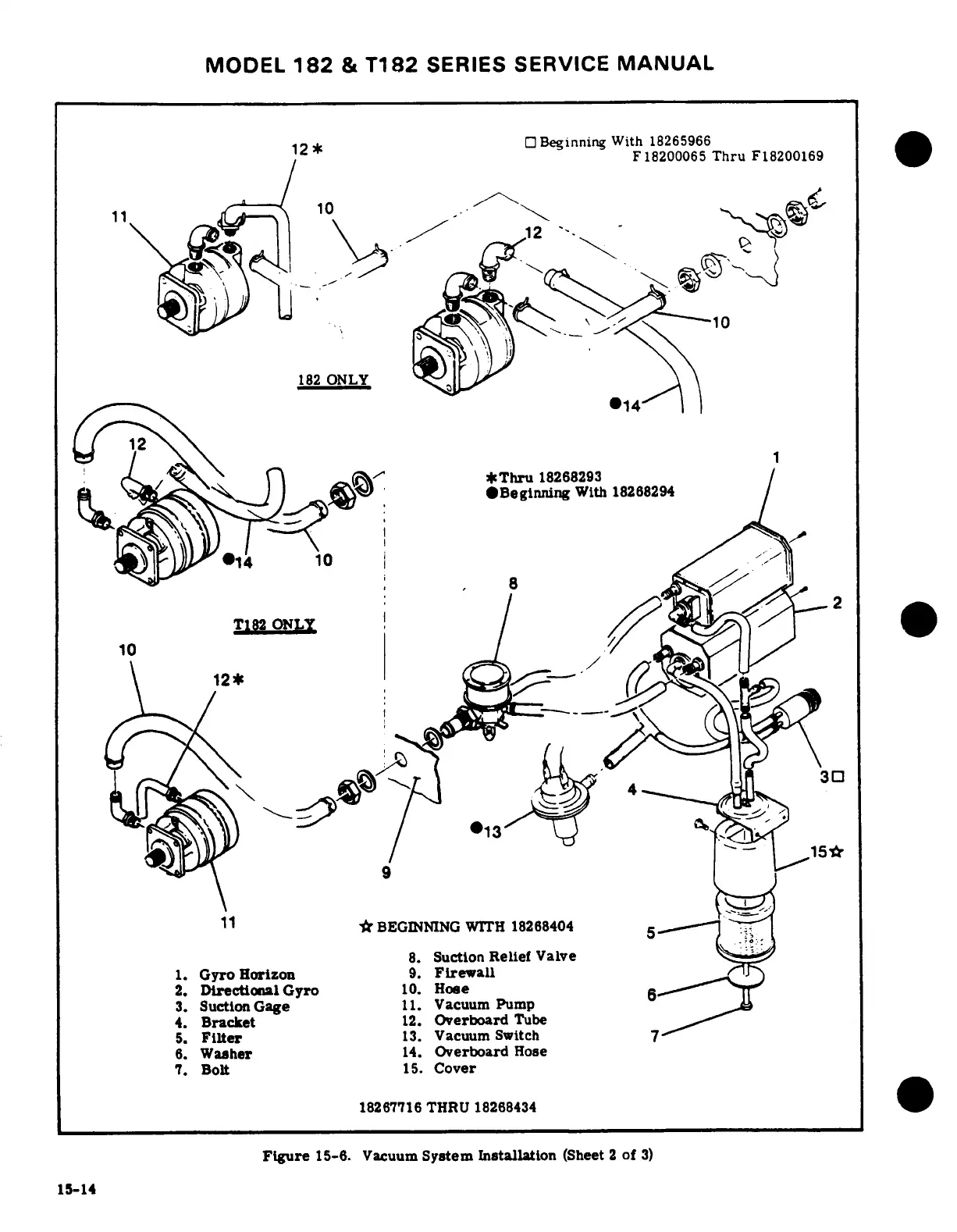

Figure 15-6.
Vacuum
System Installation
(Sheet
2 of 3)
15-14
