MODEL
182 & T182
SERIES
SERVICE
MANUAL
13
14
0^^
11
1.
Gyro Horizon
8.
Suction Relief
Valve
2. Directional Gyro 9. Firewall
3.
Suction Gage
10.
Hose
4. Bracket
11. Vacuum
Pump
5. Filter 12. Overboard Line
6. Washer 13. Vacuum Switch
7. Bolt
14.
Cover
BEGINNING WITH 18268435

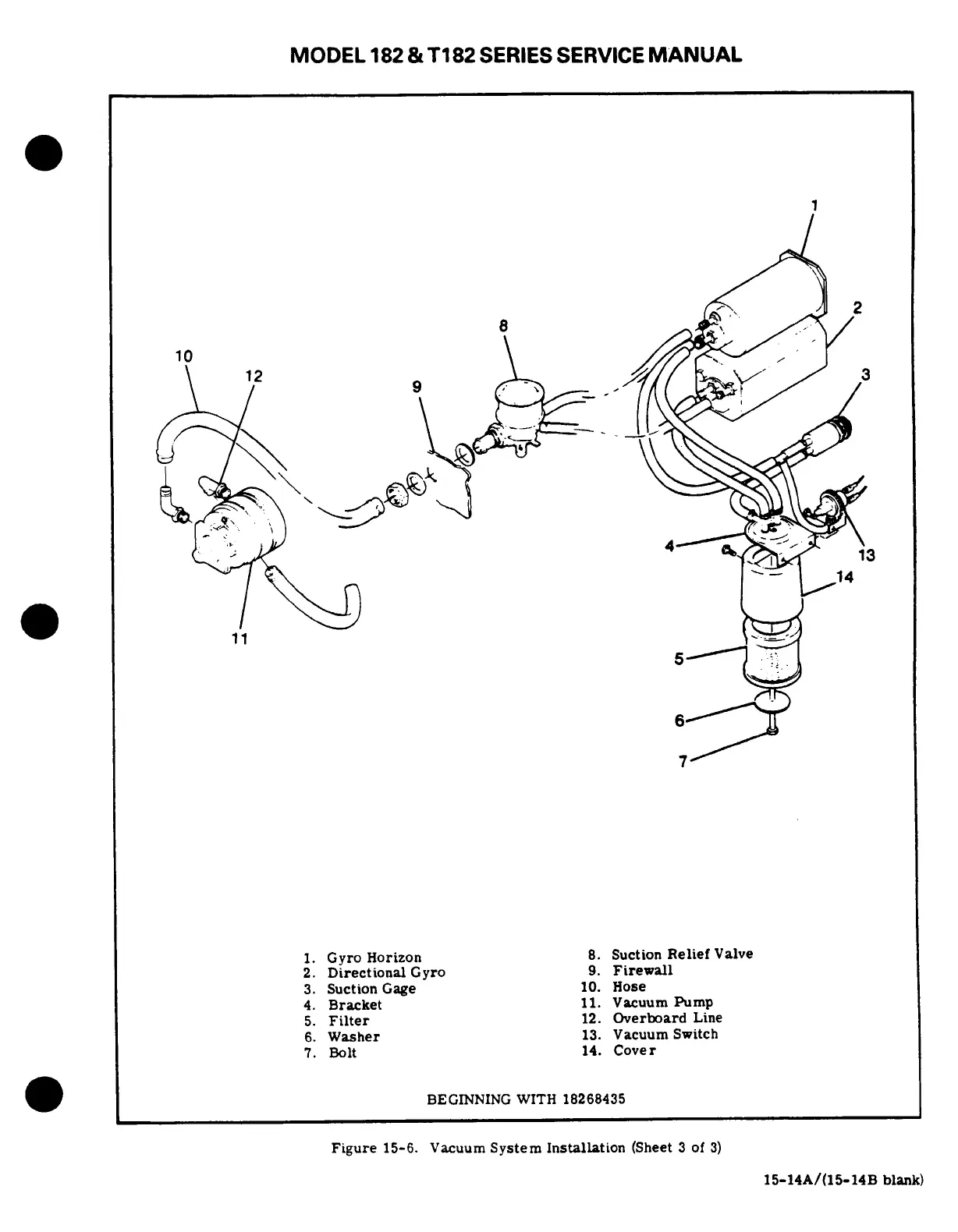

Figure 15-6. Vacuum
System Installation
(Sheet 3 of 3)
15-14A/(15-14B
blank)
