Cessna 182 1978 - Rudder Pedals Installation

MODEL
182
& T182
SERIES
SERVICE
MANUAL
NOTE
*20
Brake links (5), bellcranks (17). brake
torque
2 1
tubes
(14)
and attaching
parts
are not
required
unless
dual
controls
ARE installed.
When
dual
controls
ARE
NOT
installed,
hubs
(18)
are
at-
tached
to each end of forward and aft rudder
bars.
SINGLE
CONTROLS
HUB
CLEARANCE
HUB
CLEARANCE
HOLE
AFT
1. Anti-Rattle Spring
2.
Pedal
3.
Shaft
4. Spacer
5. Brake Link
6. Right Forward
Cable
7. Left
Forward
Cable
15
8.
Rudder
Bar
Arm
(For
wiffletree
-
push-pull
rod attachment)
13
9. Aft Rudder Bar
10.
Bearing
Block
11.
Rudder
Bar Arm
(For wiffletree
push-pull
rod attachment)
*THRU
18268101
12.
Forward
Rudder
Bar
13. Bracket
18268102
14.
Brake
Torque
Tube
15.
Master
Cylinder
16. Bearing
17.
Bellcrank
4
18.
Single
Controls
Hub
Detail
B
19. Rudder
Pedal
Extension
20.
Pedal
Shaft

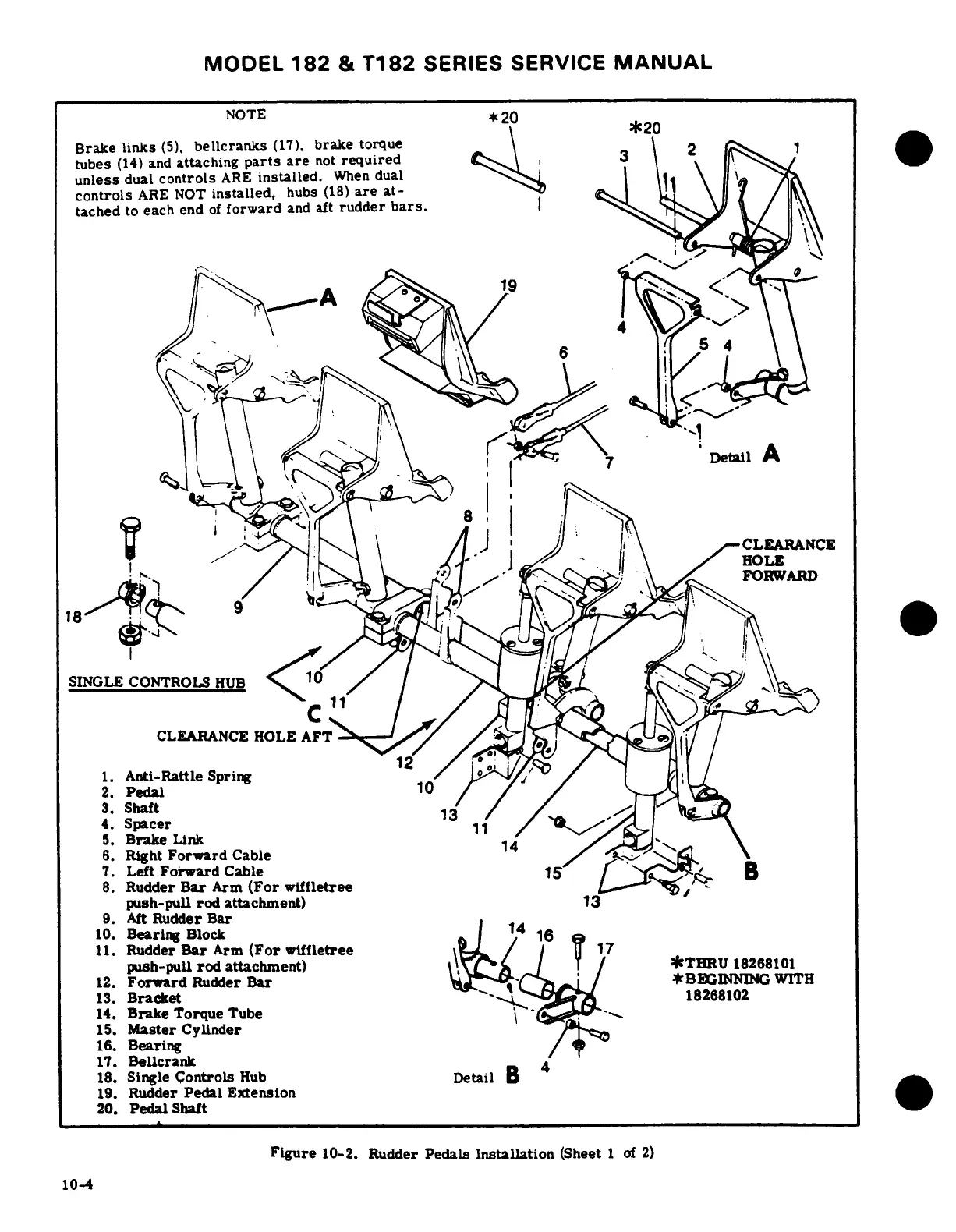

Figure 10-2.
Rudder
Pedals Installation
(Sheet
1 of 2)
10-4
