Cessna 182 1978 - Battery and Electrical Equipment Installation

MODEL
182 & T182 SERIES
SERVICE MANUAL
25
26
24
6
123
\y wJ~y\ Tf a ^ 211
19
1
1
5
/'
1. Bolt 11. Battery Contactor 21. Negative Ground Strap
2. Washer
12. Positive Battery Cable 22.
Insulating Washer
3. Lockwasher
13. Diode Wire
23. Fuse - Battery
Contactor
4. Nut
14. Wire
to Fuses
Closing
Circuit
5. Diode
Board 15. Nylon
Cover 24. Fuse
- Clock
6. Bracket - Relay
Mounting 16.
Master Switch Wire
25. Bracket
- Fuse Mounting
7. Split Bus Power
Relay
17. Wire to Battery
Contactor
26. Resistor
8. Battery
Closing
Circuit
27. Diode
9. Battery Box Lid
18.
External Power
Cable 28.
Solder Terminal
10. Battery
Box
19. Battery
Drain Tube
29. Spacer
20. Clamp 30. Screw
THRU 18266075
AND F18200085

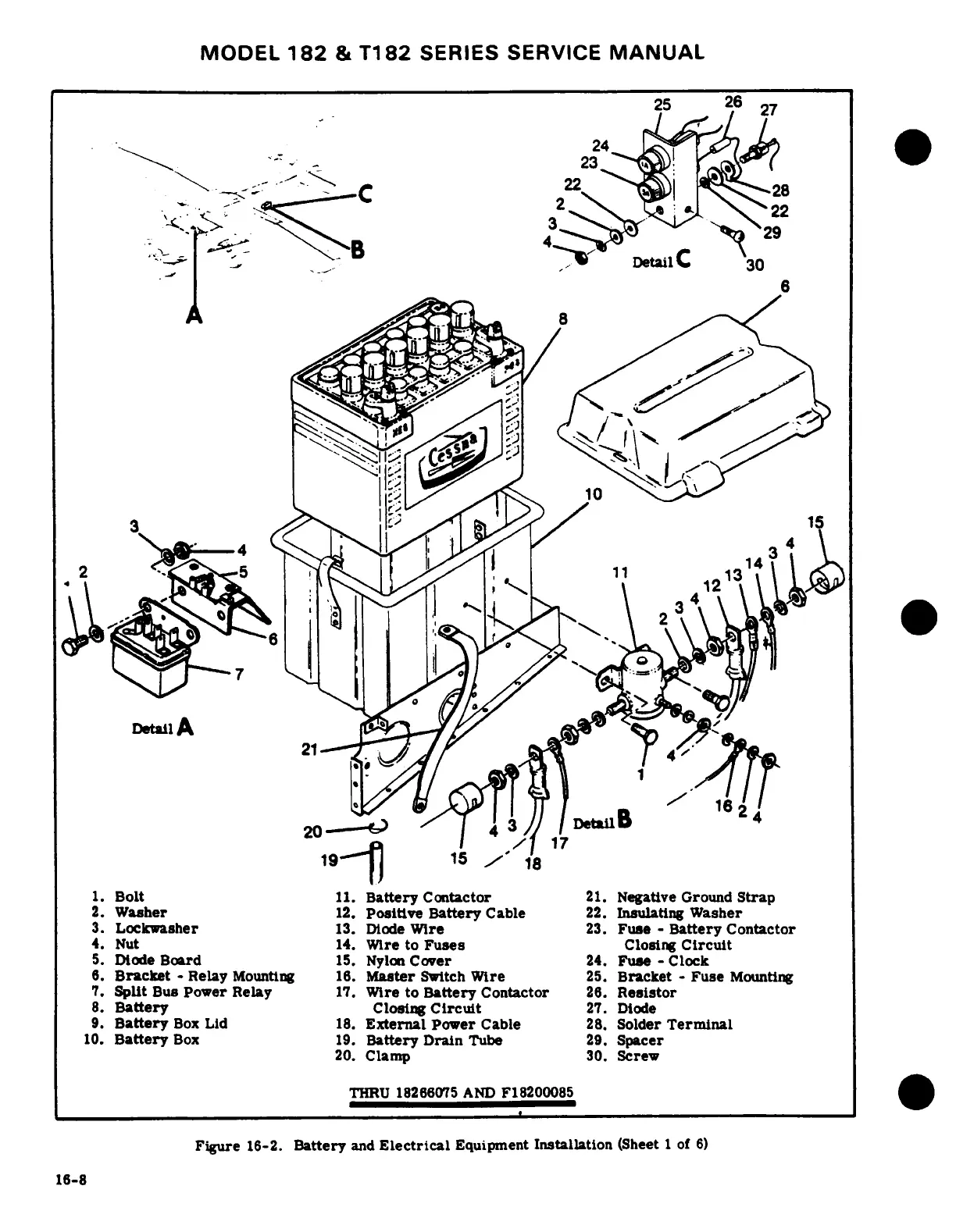

Figure 16-2.
Battery and
Electrical Equipment
Installation
(Sheet 1
of 6)
16-8
