Cessna 182 1978 - Alternator Installation

MODEL
182
&
T182
SERIES
SERVICE
MANUAL
3
2
1. Alternator
2. Adjusting
Arm
For
replacement
of alternator
support
3. Washer
bracket
refer
to Cessna
Single-Engine
4.
Rubber
Bushing
Customer
Care
Service
Information
5. Bolt
Letter SE79-58,
Dated
May
12, 1980.
6.
Upper Adjusting
Bolt
7. Drive
Belt
8. Bushing
9. Bonded
Mount
10. Nut
11.
Support
Asembly
THRU
18266408,
18266413,
18266415
THRU
18266418
12.

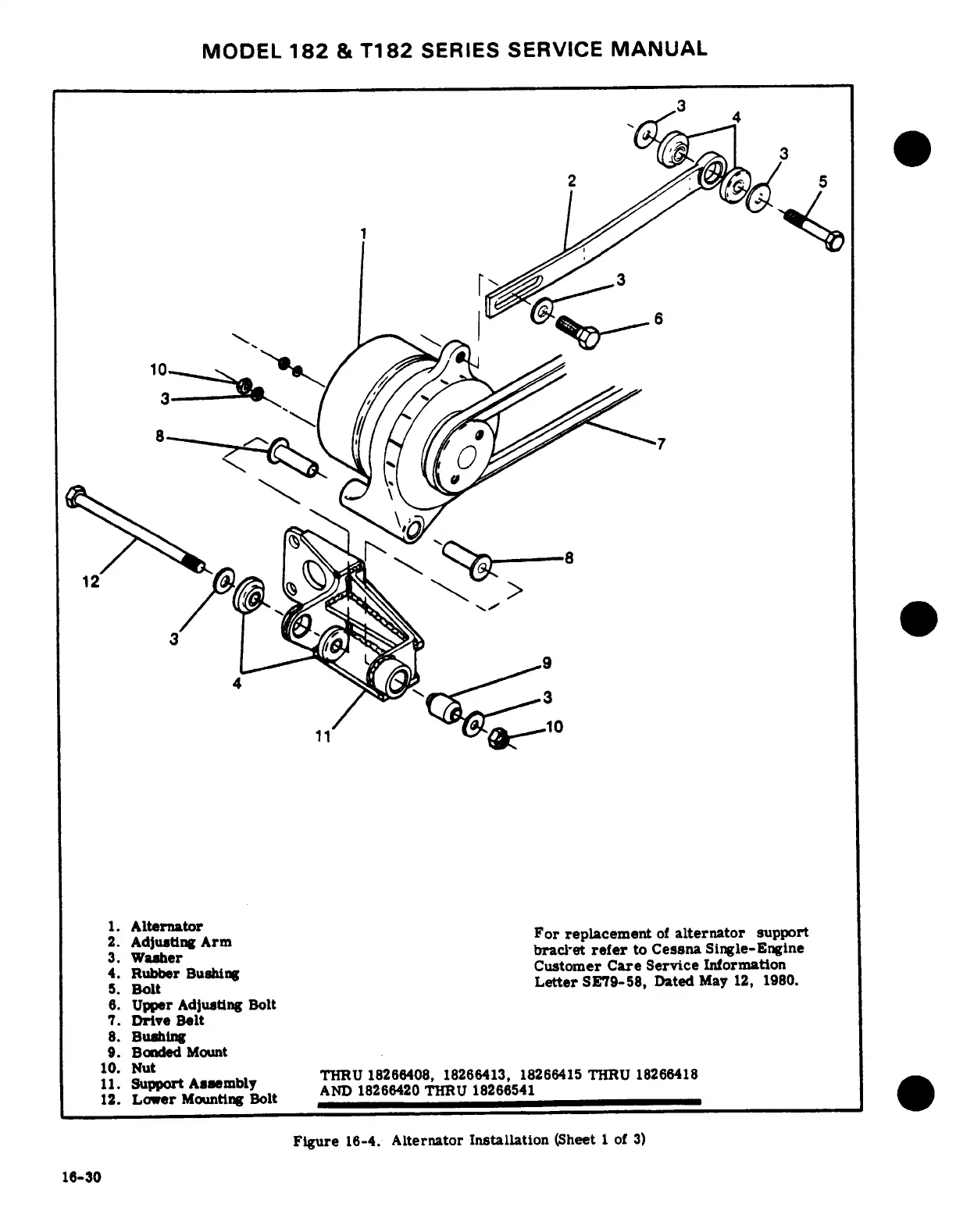

Figure 16-4.
Alternator Installation
(Sheet 1 of 3)
16-30
