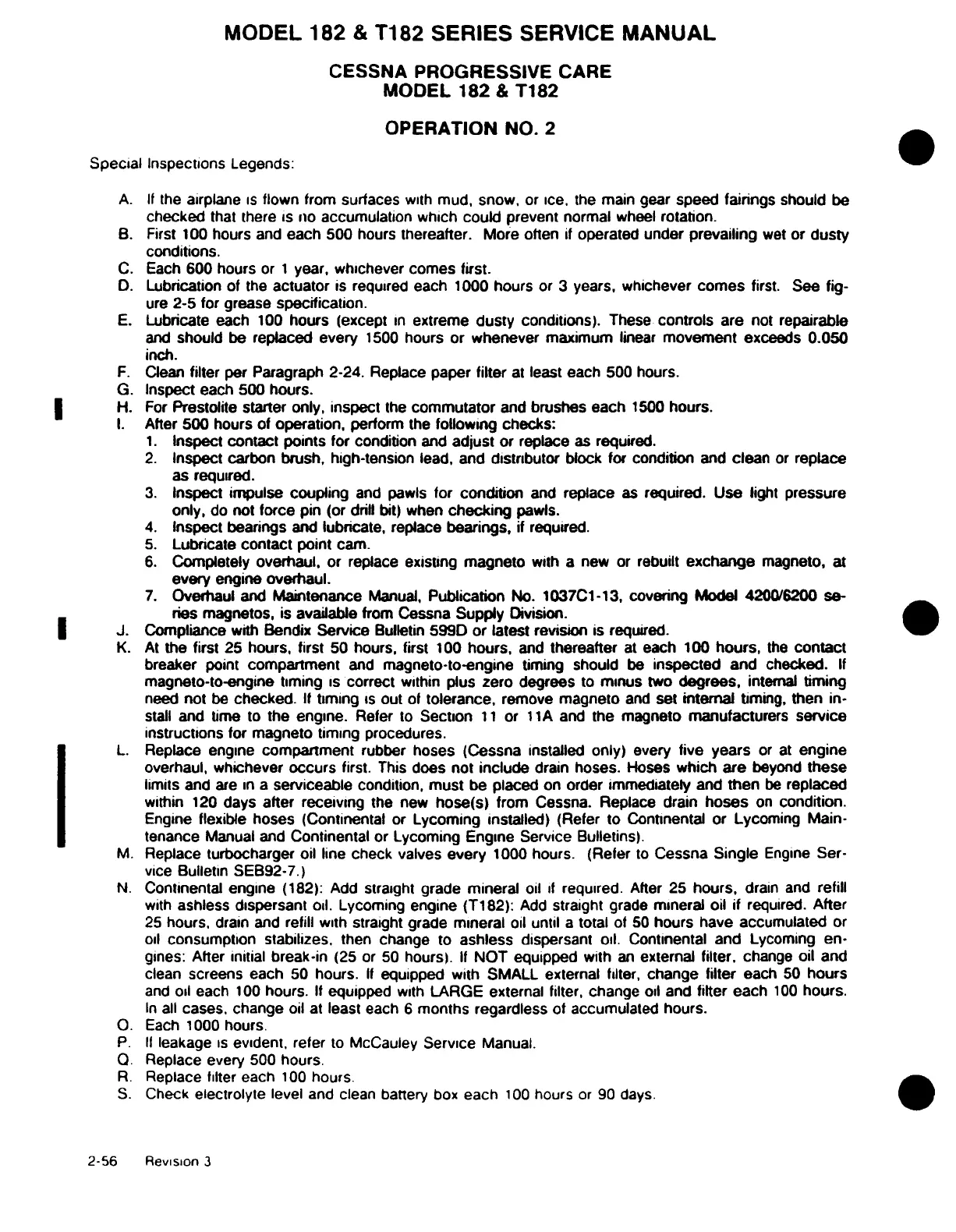

MODEL 182 &
T182 SERIES SERVICE
MANUAL
CESSNA PROGRESSIVE CARE
MODEL 182 & T182
OPERATION NO. 2
Special
Inspections
Legends:
A. If the airplane
is flown from surfaces
with mud, snow,
or ice. the main gear
speed fairings should
be
checked that there is no accumulation which could prevent normal wheel rotation.
B. First 100
hours and each 500 hours thereafter. More
often if operated under prevailing wet or dusty
conditions.
C. Each 600 hours or 1 year, whichever comes first.
D. Lubrication
of the actuator is required each
1000 hours or 3 years, whichever comes first.
See fig-
ure 2-5
for grease
specification.
E. Lubricate
each 100 hours (except in extreme dusty
conditions). These controls are not repairable
and should be replaced
every 1500 hours or whenever maximum
linear movement exceeds 0.050
inch.
F. Clean filter per Paragraph 2-24. Replace paper filter at least each 500 hours.
G. Inspect each 500 hours.
H. For Prestolite
starter
only, inspect
the commutator
and
brushes
each 1500 hours.
I. After 500
hours of operation, perform
the following checks:
1. Inspect contact
points for condition and adjust
or replace as required.
2. Inspect carbon brush, high-tension lead, and distributor block for condition and clean or replace
as required.
3. Inspect impulse
coupling and pawls for condition
and replace as required. Use light pressure
only, do not force pin (or drill bit) when checking pawls.
4. Inspect bearings and lubricate, replace bearings, if required.
5. Lubricate contact point cam.
6. Completely overhaul, or replace existing magneto with a new or rebuilt exchange magneto, at
every
engine
overhaul.
7. Overhaul and Maintenance Manual,
Publication No. 1037C1-13, covering Model
4200/6200 se-
ries magnetos,
is
available from
Cessna Supply
Division.
J. Compliance
with Bendix
Service Bulletin
599D or latest
revision is required.
K. At
the first 25 hours, first 50 hours, first 100
hours, and thereafter at each 100 hours,
the contact
breaker point compartment and magneto-to-engine timing should be inspected and checked. If
magneto-to-engine timing is correct within plus zero degrees to minus two degrees, internal timing
need not be checked. If timing
is out of tolerance, remove magneto and
set internal timing, then in-
stall and time to the engine. Refer to Section 11 or 11A and the magneto manufacturers service
instructions for magneto
timing procedures.
L. Replace engine compartment rubber hoses (Cessna installed only) every five years or at engine
overhaul, whichever occurs first. This does not include drain hoses. Hoses which are beyond these
limits and are in a serviceable condition, must be placed on order immediately and then be replaced
within 120 days after receiving the new hose(s) from Cessna. Replace drain hoses on condition.
Engine flexible hoses (Continental or
Lycoming installed) (Refer to Continental
or Lycoming Main-
tenance Manual and Continental or Lycoming Engine Service Bulletins).
M. Replace turbocharger oil line
check valves every 1000 hours. (Refer
to Cessna Single Engine Ser-
vice Bulletin SEB92-7.)
N. Continental engine (182):
Add straight grade mineral oil if required. After
25 hours, drain and refill
with
ashless dispersant oil. Lycoming engine (T182):
Add straight grade mineral oil if required.
After
25 hours, drain and refill with straight grade mineral oil until a total of 50 hours have accumulated or
oil consumption stabilizes, then change to ashless dispersant oil. Continental and Lycoming en-
gines: After initial break-in (25 or 50 hours).
If NOT equipped with an external
filter, change oil and
clean screens each 50 hours. If equipped with SMALL external filter, change filter each 50 hours
and oil each 100 hours. It equipped with LARGE external filter, change oil and filter each 100 hours.
In all cases, change oil at least each 6 months regardless of accumulated hours.
O. Each
1000
hours.
P. If leakage
is evident,
refer to McCauley
Service
Manual.
Q. Replace every 500 hours.
R.
Replace filter
each 100 hours.
S. Check electrolyte level and clean battery box each 100 hours or 90 days.
2-56 Revision 3
