Programmable DC Power Supply (with Solar Array Simulation) 62000H Series
Operating & Programming Manual
connecting wire diameter must be larger than 30AWG and it’s withstand voltage should
be within the specification.
3. Although remote sensing is able to compensate for a voltage drop, if the line loss is too
large (see specification) it will cause a protection error as shown in Figure 2-8 indicating it
is unable to compensate for the voltage drop.

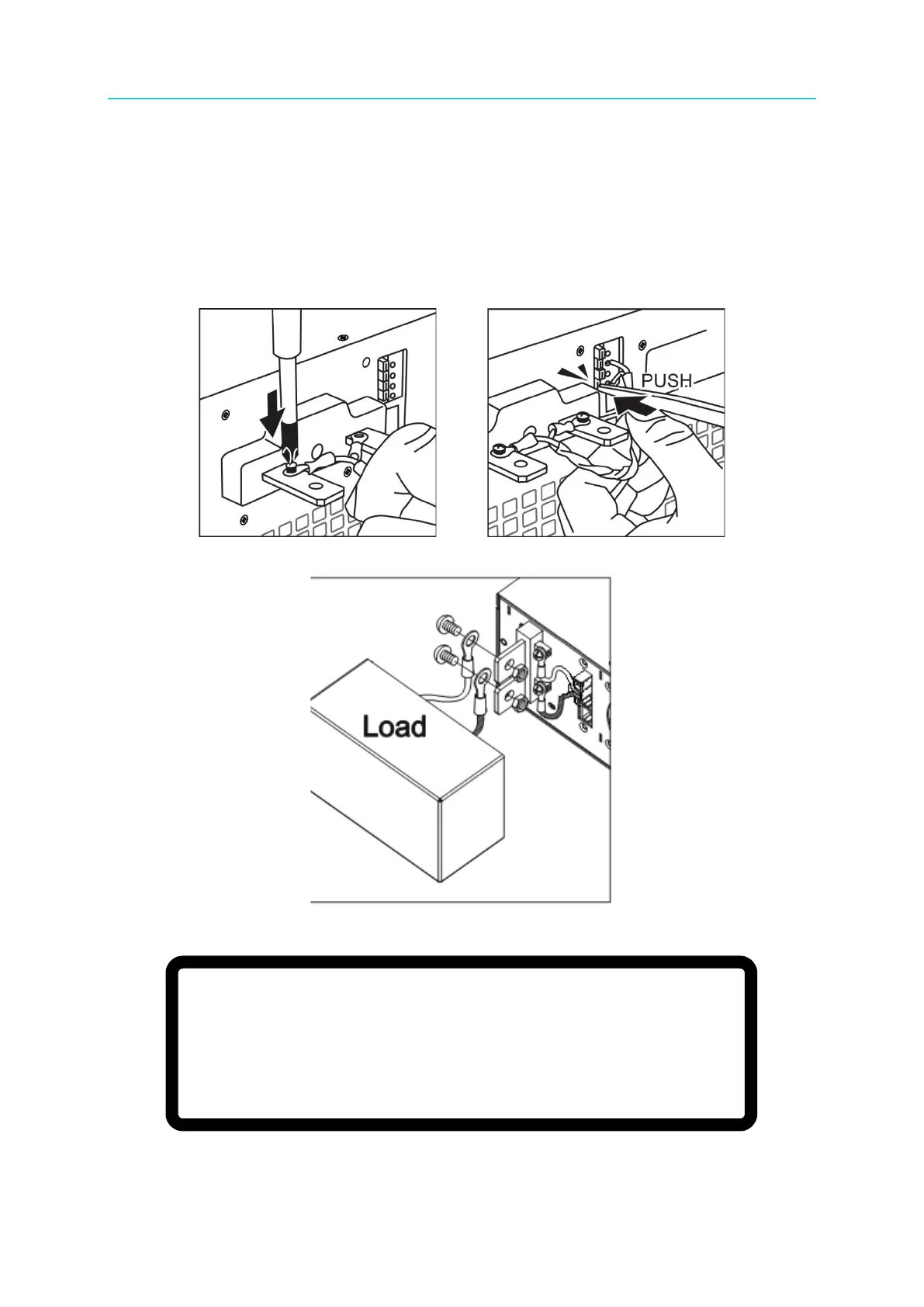

4. Connect the remote sensing wire of the 62020H-150S as shown in Figure 2-7.
5. The remote sensing wire needs to be connected to the DC Power Supply local output or
the remote input of the UUT.
Figure 2-6
Figure 2-7
V = 6 0. 0 0 V I = 1 0. 0 0 _ A O F F
0 . 0 0 0 0 V 0 . 0 0 0 0 A
S E N S E F A U L T 0 . 0 W
S H U T – D N
Figure 2-8
