5.5.3.1.- Expansion modules of Transistor and Relay digital inputs/outputs

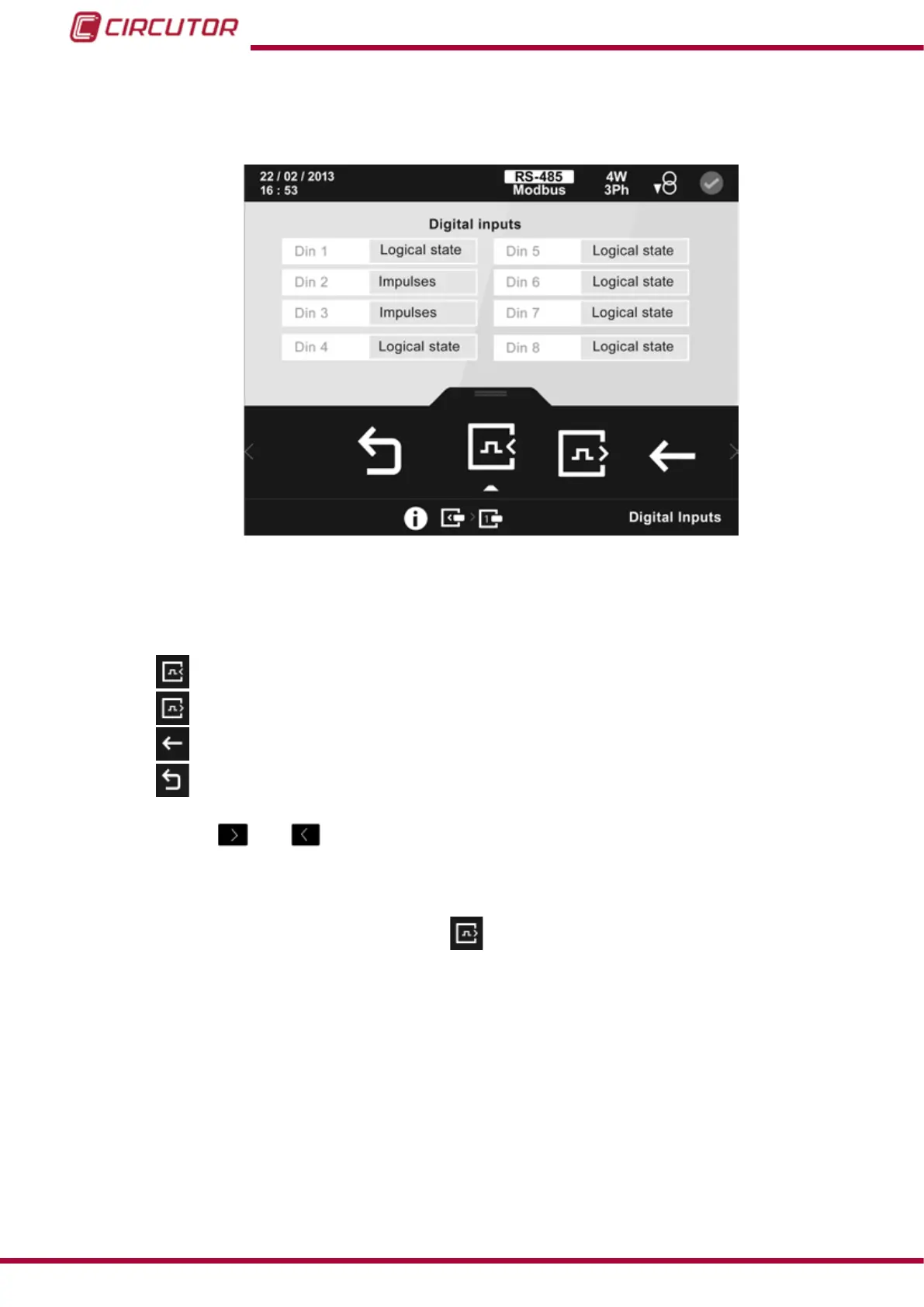

The screen in Figure 99, is one of the information display screens for the expansion module.
Figure 99: Digital inputs information screen (Transistor Digital Inputs/Outputs Module).
This screen displays the conguration of the digital inputs of the module.
The following options appear in the lower area:
Digital inputs, to display how the inputs have been congured.
Digital outputs, to display how the outputs have been congured.
Back, returns to the expansion modules information screen, Figure 98.
Main Menu, back to the main menu, Figure 25.
Use the keys
and to select the different options.
If no key is pressed for 5 minutes, the display screen changes automatically to the default
screen.
When selecting the digital outputs option, , you will view the screen in Figure 100, with the
conguration information for the digital outputs.
