After selecting the output to congure, Figure 130, the following parameters can be congured:
 The variable code that controls the relay.
 The Pre-alarm value.
 The minimum value below which the relay is activated.
 The maximum value above which the relay is activated.
 The delay in connecting and disconnecting the relay.
 The status of the outputs.
 The latch.

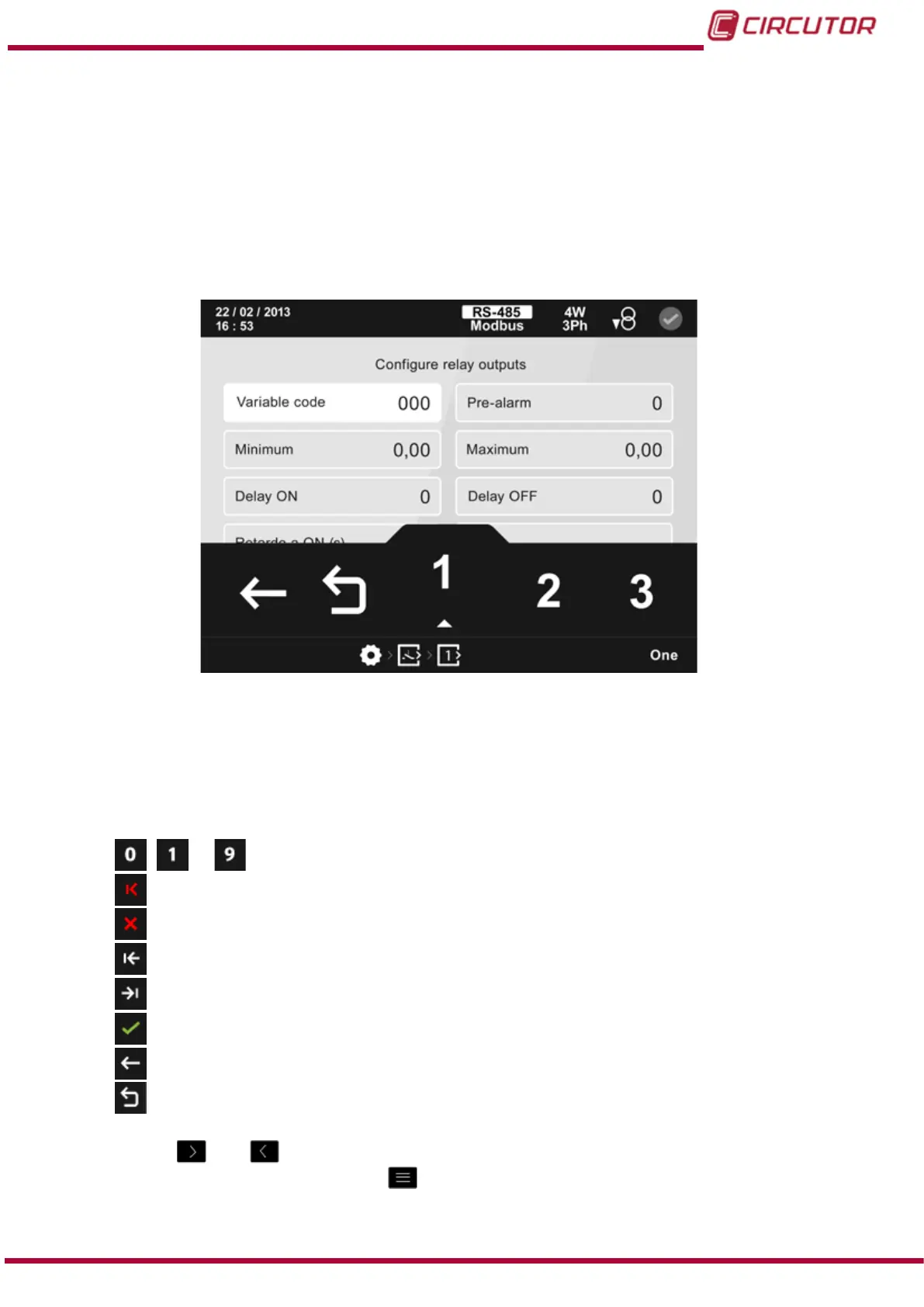

Figure 130: Conguration screen of relay digital outputs.
The parameter selected is indicated in white.
The following options appear in the lower area:
● When programming the variable code which controls the relay digital output (Table 21):
, ... The ten possible digits to program.
Delete character, deletes the selected character.
Delete parameter, deletes the characters of the selected parameter.
Previous, selects the previous parameter.
Next, selects the next parameter.
Conrm, conrms and saves in the memory the values programmed on the screen.
Back, returns to the home screen of the setup menu Figure 114.
Main Menu, back to the main menu, Figure 25.
Use the keys
and to select the different options.
To conrm the selection, press the key
.
145
