Circutor CVM-B100 User Manual

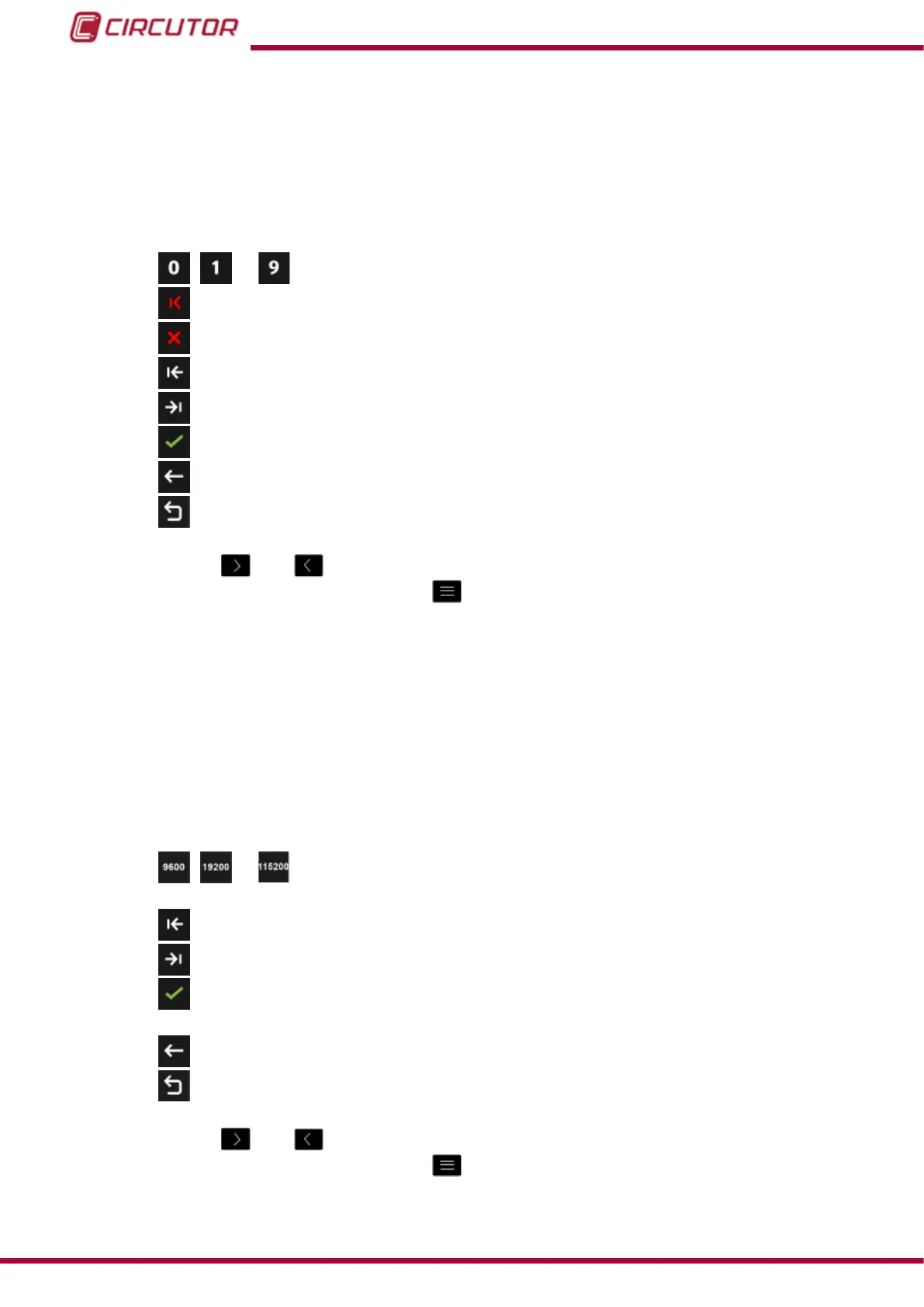

The parameter selected is indicated in white.
The following options appear in the lower area:
● When programming the Np:
The Np is the peripheral number assigned to the unit in the Modbus network.
, ... The ten possible digits to program.
Delete character, deletes the selected character.
Delete parameter, deletes the characters of the selected parameter.
Previous, selects the previous parameter.
Next, selects the next parameter.
Conrm, conrms and saves in the memory the values programmed on the screen.
Back, returns to the main conguration screen for integrated communications.
Main Menu, back to the main menu, Figure 25.
Use the keys
and to select the different options.
To conrm the selection, press the key
.
Np:
Maximum value: 255.
Minimum value: 0.
If no key is pressed for 5 minutes, the display screen changes automatically to the default
screen.
● When programming the transmission speed, Baud rate:
, ... The possible transmission speeds: 9600, 19200, 38400, 57600, 76800
or 115200.
Previous, selects the previous parameter.
Next, selects the next parameter.
Confirm, confirms and saves in the memory the values programmed on the
screen
.
Back, returns to the main conguration screen for integrated communications.
Main Menu, back to the main menu, Figure 25.
Use the keys
and to select the different options.
To conrm the selection, press the key
.
168
CVM-B100 - CVM-B150
Instruction Manual

Circutor CVM-B100 Specifications

General

Type	Power Analyzer
Frequency Measurement Range	45 - 65 Hz
Communication Interface	RS-485 Modbus RTU
Mounting	DIN Rail
Standards	IEC 61010, IEC 61326
Current Measurement Range	Up to 6000 A via external CTs
Power Measurement	Active, Reactive, Apparent Power
Measurements	Voltage, current, power, energy, frequency
Display	LCD
Accuracy	Class 0.5
Power Supply	85-265 V AC / 95-300 V DC
Operating Temperature	-10 to +50 °C
Storage Temperature	-20 to 70 °C
Protection Degree	IP20
