Displayed here are all the expansion modules connected to the unit.
If in the unit there is more than one module of the same type connected, a number will appear
in the icon to differentiate them
; the module with the lowest number has the lowest serial
number.
Use the
and buttons to move to the different options and select the Profibus
communications icon
.
Press the button
to open the main conguration screen of the Probus communications
module, Figure 198.

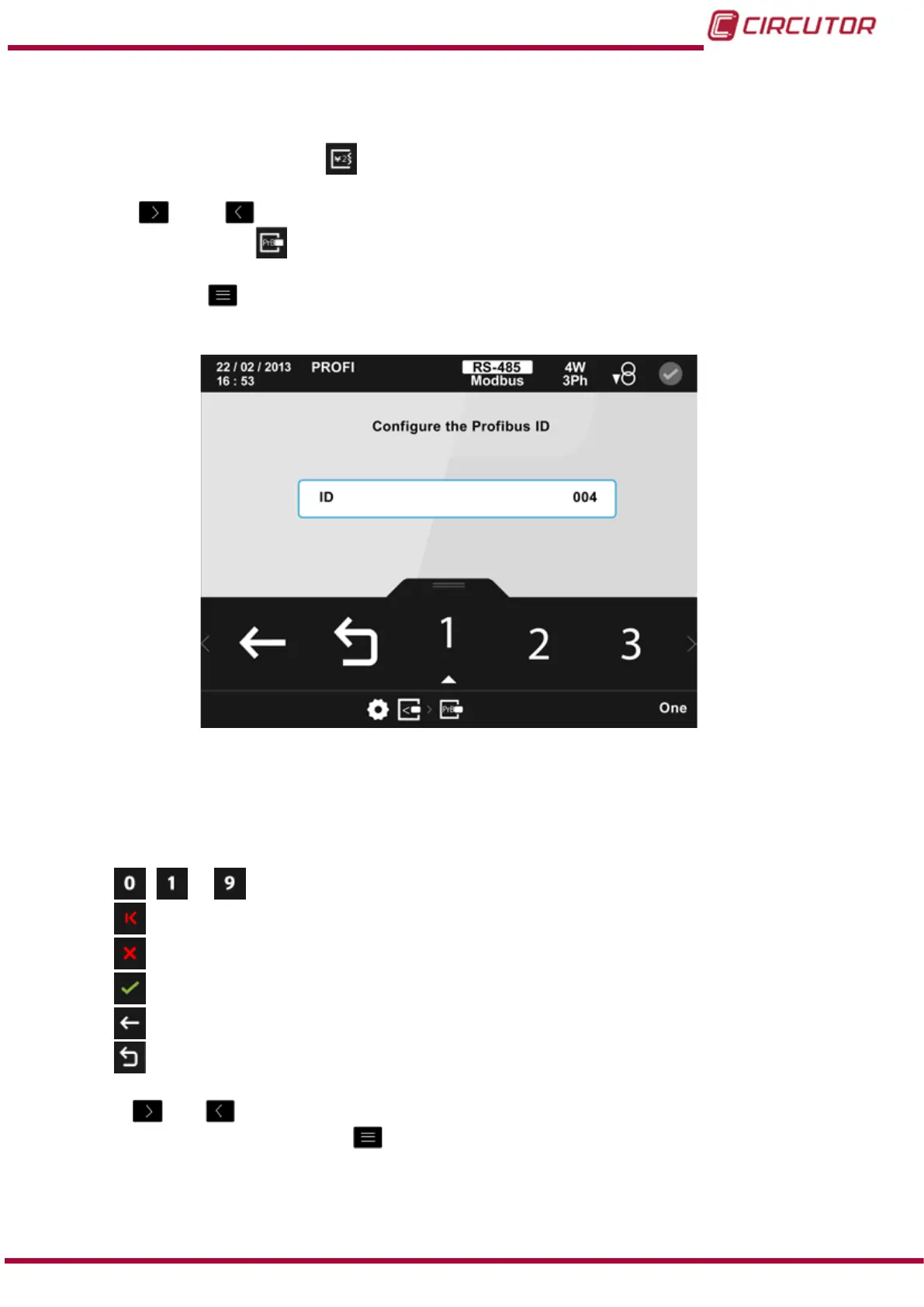

Figure 198: Main conguration screen of the Probus module
The identier of the unit in the Probus network can be selected in this screen.
The following options appear in the lower area:
, ... the ten possible digits to program.
Delete character, deletes the selected character.
Delete parameter, deletes the characters of the selected parameter.
Conrm, conrms and saves the values programmed on the screen in the memory.
Back, returns to the home screen of the expansion modules menu, Figure 197.
Main Menu, returns to the main menu, Figure 25.
Use the
and buttons to select the different options.
To conrm the selection, press the
button.
If no button is pressed for 5 minutes, the display screen changes automatically to the default
screen, which displays the voltage measurement of 4 parameters.
