5.1.1.1.1.- Instantaneous parameters.

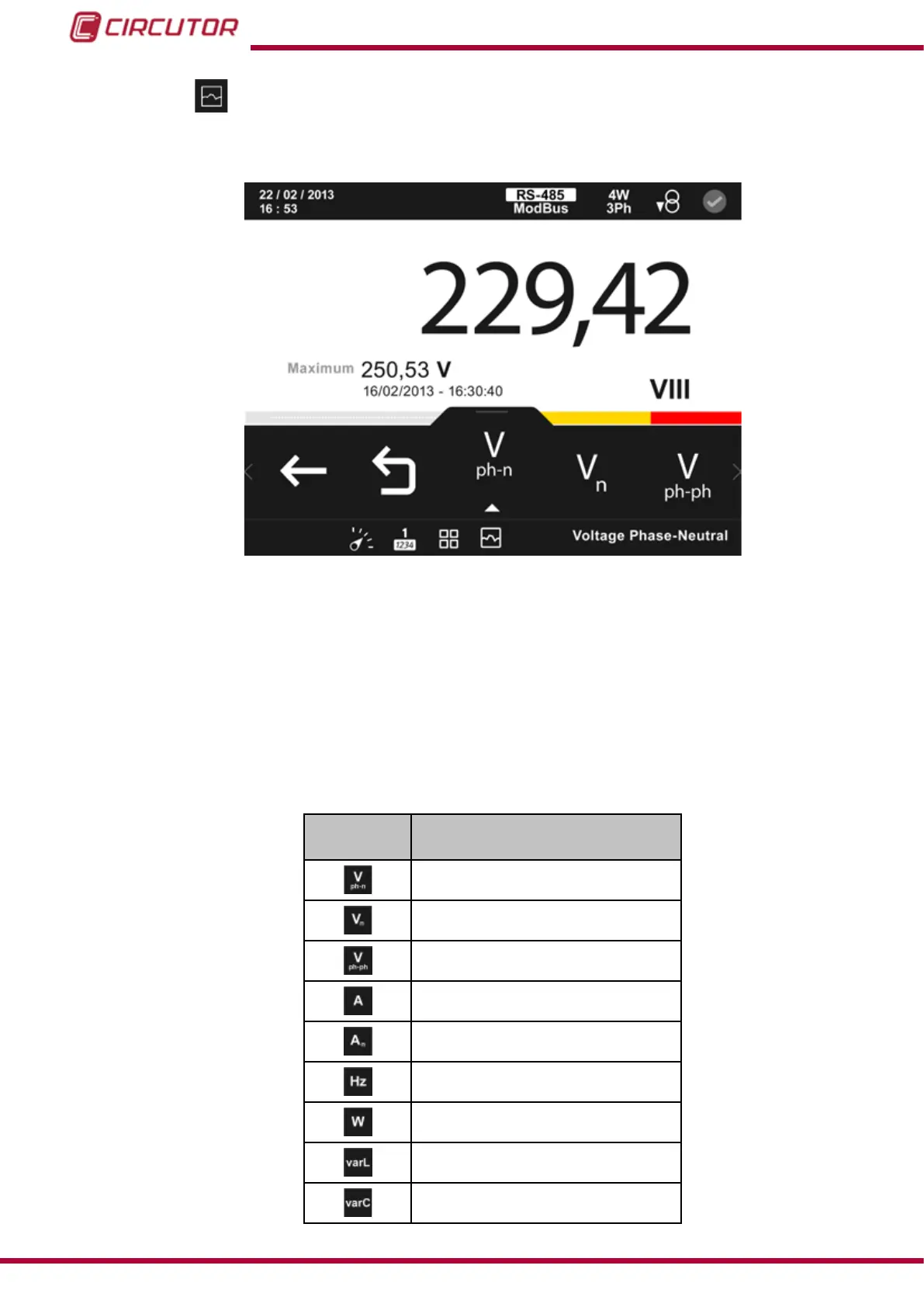

On this screen, Figure 29, you can view all the parameters indicated in Tabla 8.
Figure 29: Instantaneous parameters (display 1 parameter).
For each of the instantaneous parameters you can view:
 The maximum and minimum value, with the date and time when it occurred.
 A bar chart with the indications of the instantaneous value, maximum and minimum
values and alarms, see “4.4.3. CENTRAL AREA”.
 Graphical representation of the parameter.
 The analogue representation of the parameter.
Table 8: Instantaneous parameters.
Icon
Display 1 parameter
Instantaneous parameters
Phase-Neutral Voltage
Neutral voltage
Phase-Phase Voltage
Current
Neutral Current
Frequency
Active power
(1)
Inductive reactive power
(1)
Capacitive reactive power
(1)
40
CVM-B100 - CVM-B150
Instruction Manual
