5.1.1.1.2.- Incremental parameters.
On this screen, Figure 34, you can view all the parameters indicated in Tabla 9.
For each of the incremental parameters you can view:
 The value generated and consumed,
The value for each tariff, T1, T2 and T3 and the total value of the 3 tariffs.
 The graphical representation of the parameter.
 Graphical representation of the energy closes.

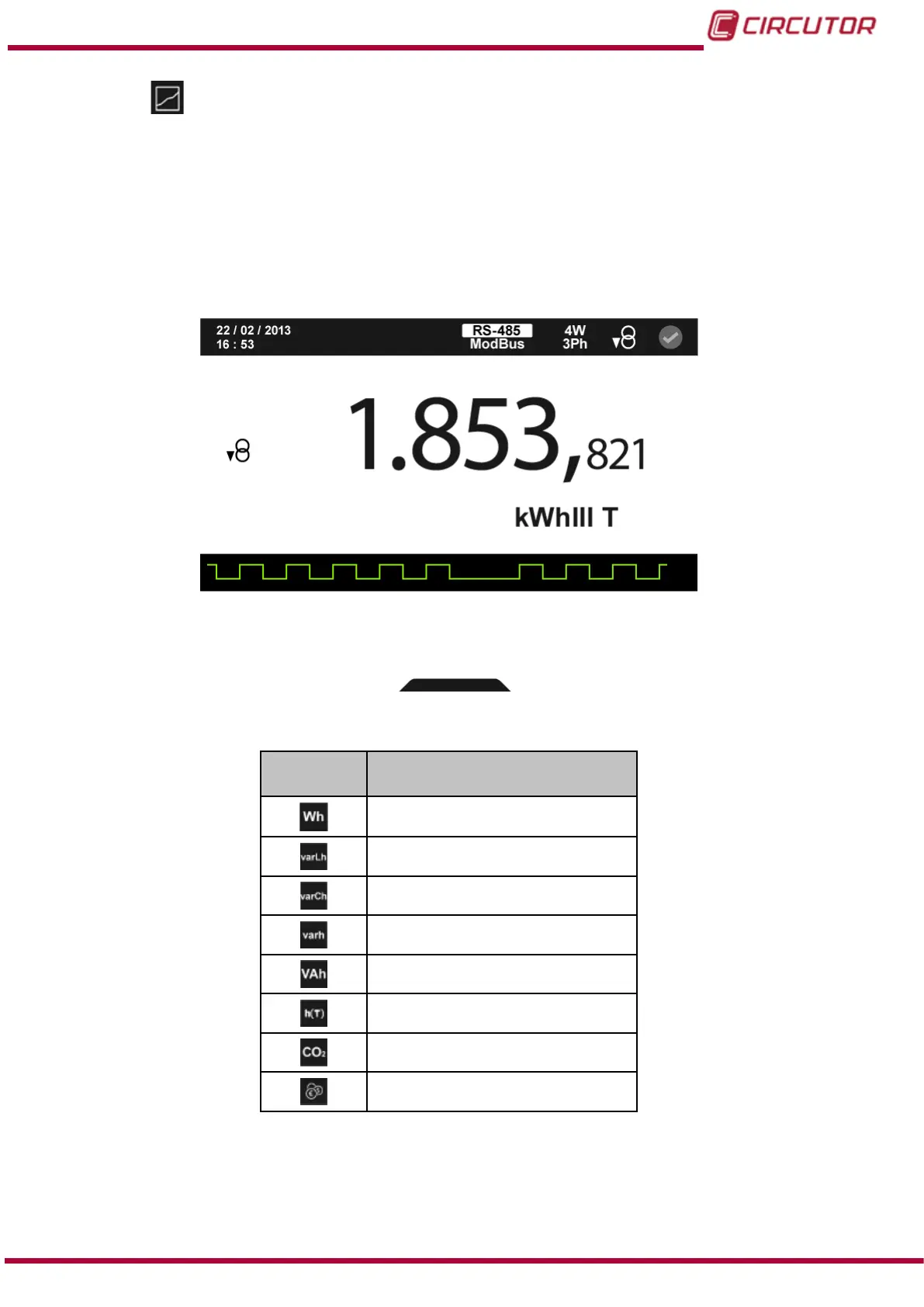

Figure 34: Incremental parameters (display 1 parameter).
Table 9:Incremental parameters (display 1 parameter).
Icon
Display 1 parameter
Incremental parameters
Active energy
(1) (2)(3)
Inductive reactive energy
(1) (2) (3)
Capacitive reactive energy
(1) (2) (3)
Total reactive energy
(1) (2) (3)
Apparent energy
(1) (2) (3)
Active tariff hours
CO
2
Emissions
Cost
(1)
There is a graphical representation for all these parameters on the screen, Figure 35, which
indicates the energy increase: a at line indicates that there is no energy increase and the puls-
es indicate an increase in it.
45
Instruction Manual
CVM-B100 - CVM-B150
