5.1.1.1.1.1.2.- Analog view.
The analogue display screen is shown in
Figure 33.

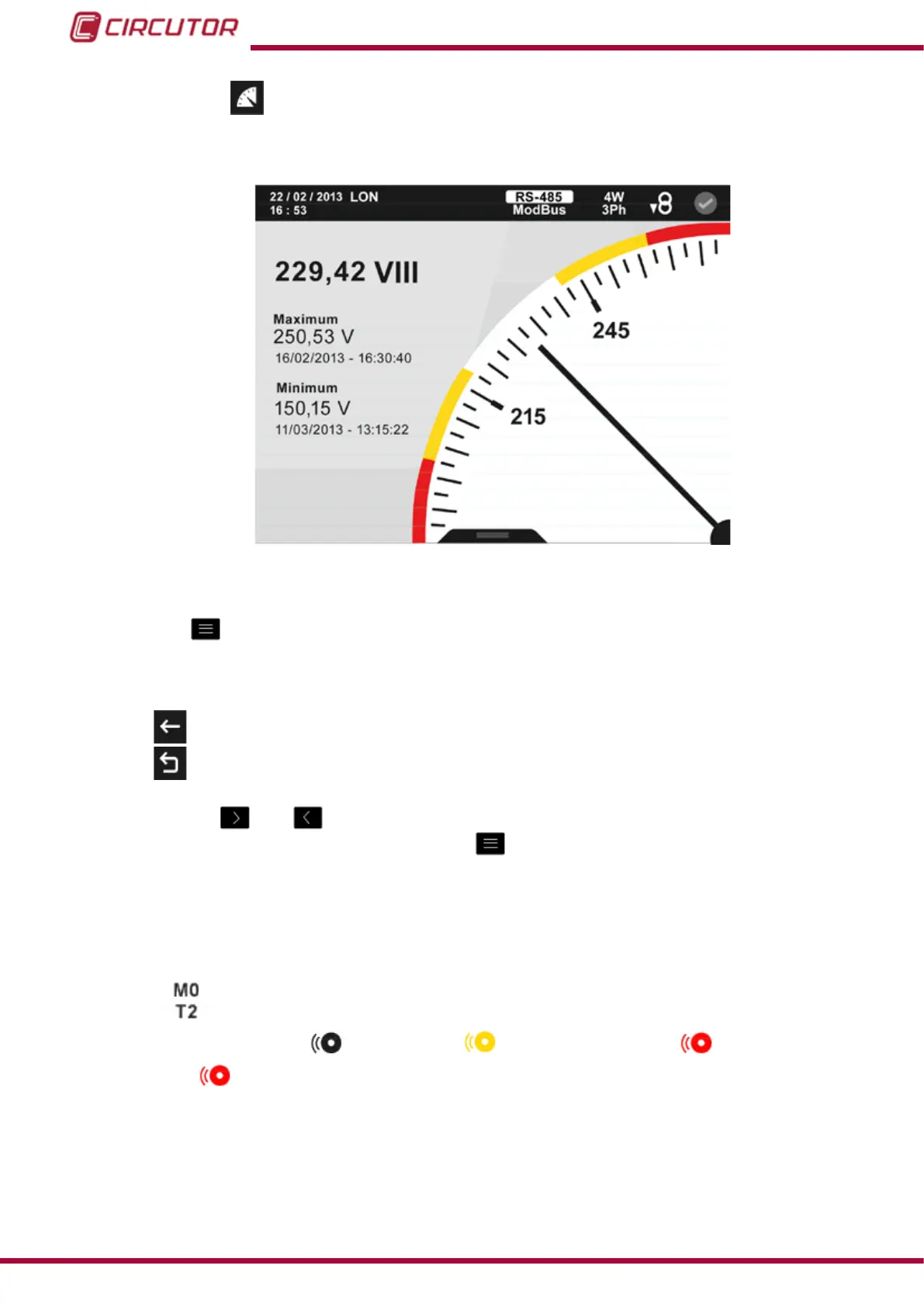

Figure 33:Instantaneous parameters, analog view(display 1 parameter).
The menu in the lower area disappears after 3 seconds.
Press the
key to display the lower area again.
The lower area menu options are:
Back, returns to the instantaneous parameters display menu screen, Figure 31.
Main Menu, back to the main menu, Figure 25.
Use the keys
and to browse the different options.
To access the option selected press the key
.
If you view the current, active power or apparent power, a second red coloured needle will
appear indicating the value of the maximum demand of the parameter being displayed.
If there is an alarm associated with the variable being displayed, the following will be shown:
The module with which the alarm is associated.
The associated output in the module.
The alarm status:
not activated, pre-alarm activated, alarm activated.
The
icon flashes during the delay time in the alarm connection (ON) and
disconnection (OFF).
