Graphic view. (“5.1.1.1.1.1.1.Graphic view.”)
Analog view. ( “5.1.1.1.1.1.2. Analog view.”)
Display of 3 parameters, moves to the 3 parameters display screen.
(
“5.1.2.- Display 3 parameters.”)
Display of 4 parameters, moves to the 4 parameters display screen.
(
“5.1.3.- Display 4 parameters.”)
Back, returns to the instantaneous parameters display screen, Figure 29.
Main Menu, back to the main menu, Figure 25.
5.1.1.1.1.1.1.-
Graphic view

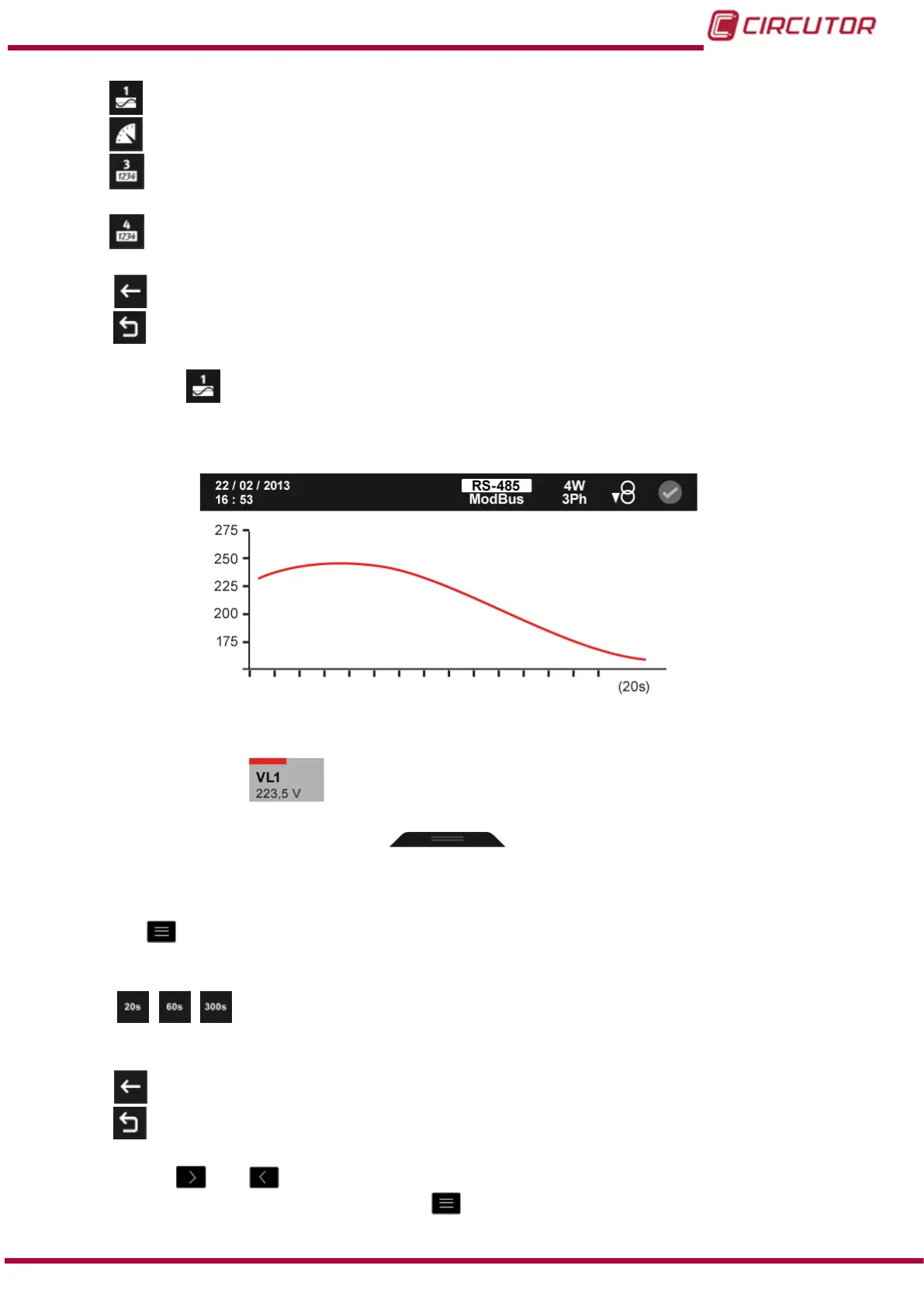

Figure 32 shows the graphical display screen.
Figure 32: Instantaneous parameters, graphic view (displays 1 parameter).
The menu in the lower area disappears after 3 seconds.
Press the
key to display the lower area again.
The lower area menu options are:
, , Selecting the graph display time ( X-axis ). The time can be set to 20, 60
or 300 seconds
Note: The option selected is not displayed on the menu.
Back, returns to the instantaneous parameters display menu screen, Figure 31.
Main Menu, back to the main menu, Figure 25.
Use the keys
and to browse the different options.
To access the option selected press the key
.
43
Instruction Manual
CVM-B100 - CVM-B150
