5.1.1.2.1.1.1.- Selecting an instantaneous parameter.

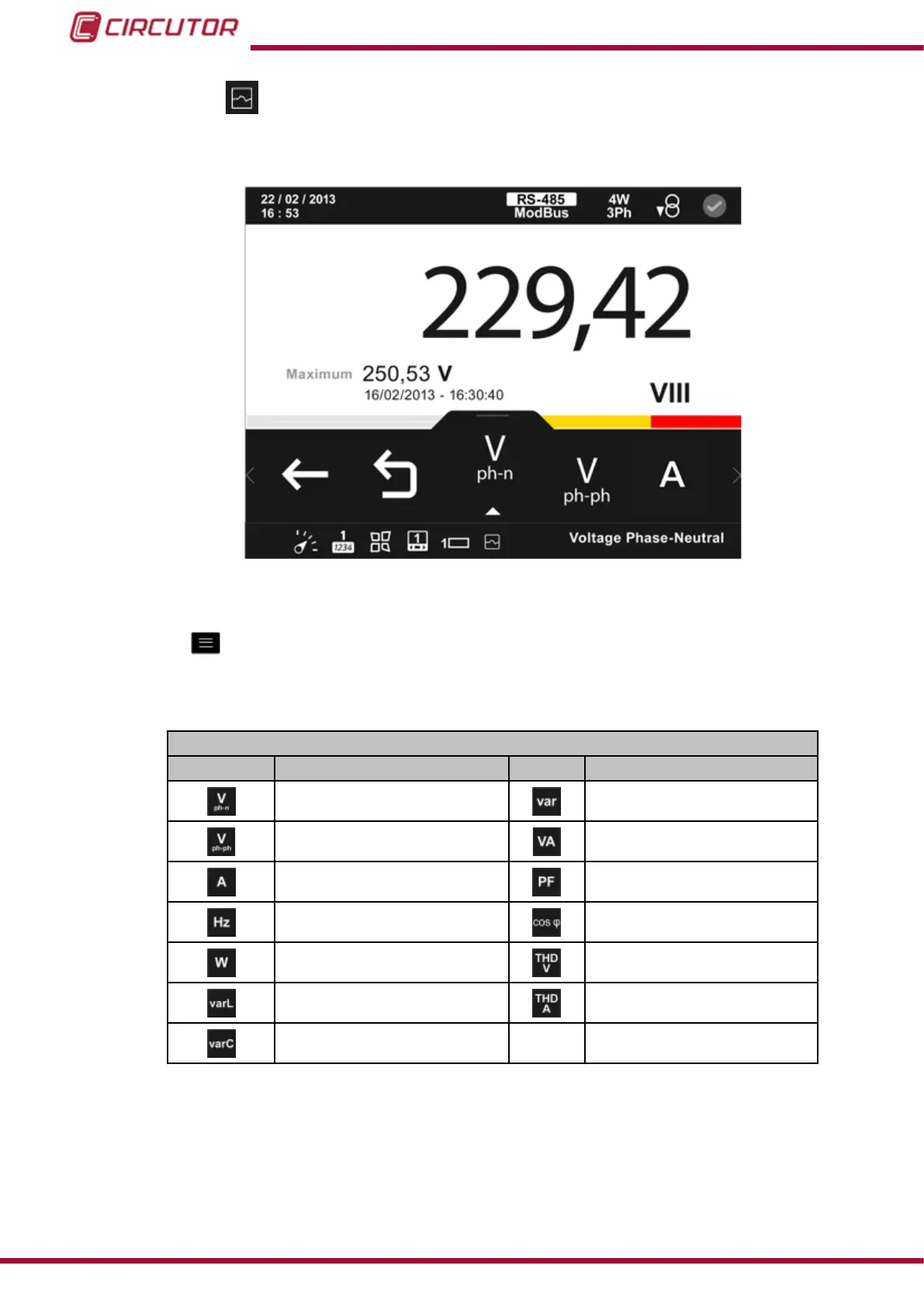

Figure 47 shows the screen for selecting the Instantaneous parameters.
Figure 47: Custom parameters screen, selecting an instantaneous parameter (displays 1 parameter).
The menu in the lower area disappears after 3 seconds.
Press the
key to display the lower area again.
The menu at the bottom displays all the available instantaneous parameters (Table 11).
Table 11: Instantaneous parameters that can be selected on the customisation screens.
Customisation screen
Icon Instantaneous parameter Icon Instantaneous parameter
Phase-Neutral Voltage Total reactive power
Phase-Phase Voltage Apparent power
Current Power factor
Frequency Cosine phi
Active power Voltage THD
Inductive reactive power Current THD
Capacitive reactive power
58
CVM-B100 - CVM-B150
Instruction Manual
