5.1.3.1.1.1.1.- Graphic view.

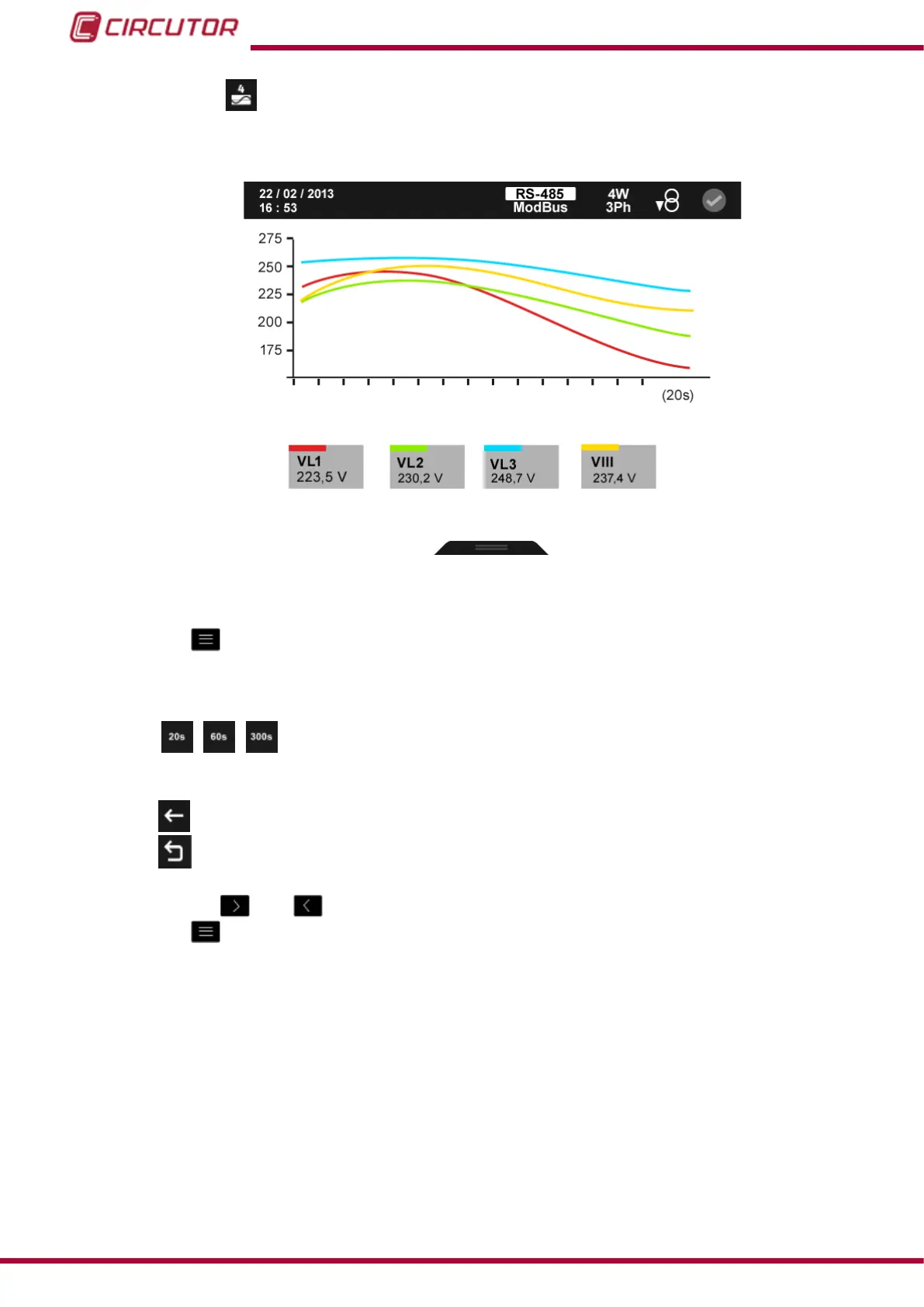

Figure 69 shows the graphical display screen .
Figure 69: Instantaneous parameters, graphical representation (displays 4 parameters).
The menu in the lower area disappears after a few seconds.
Press the
key to display the lower area again.
The lower area menu options are:
, , Selecting the graph display time ( X-axis ). The time can be set to 20,
60 or 300 seconds
Note: The option selected is not displayed on the menu.
Back, returns to the instantaneous parameters display screen, Figure 68.
Main Menu, back to the main menu, Figure 25.
Use the keys
and to browse the various parameters.
Press the
key to display the lower area.
84
CVM-B100 - CVM-B150
Instruction Manual
