Catalyst 3750-X and 3560-X Switch Software Configuration Guide
OL-25303-03
Chapter 1 Configuring MSDP
Configuring MSDP

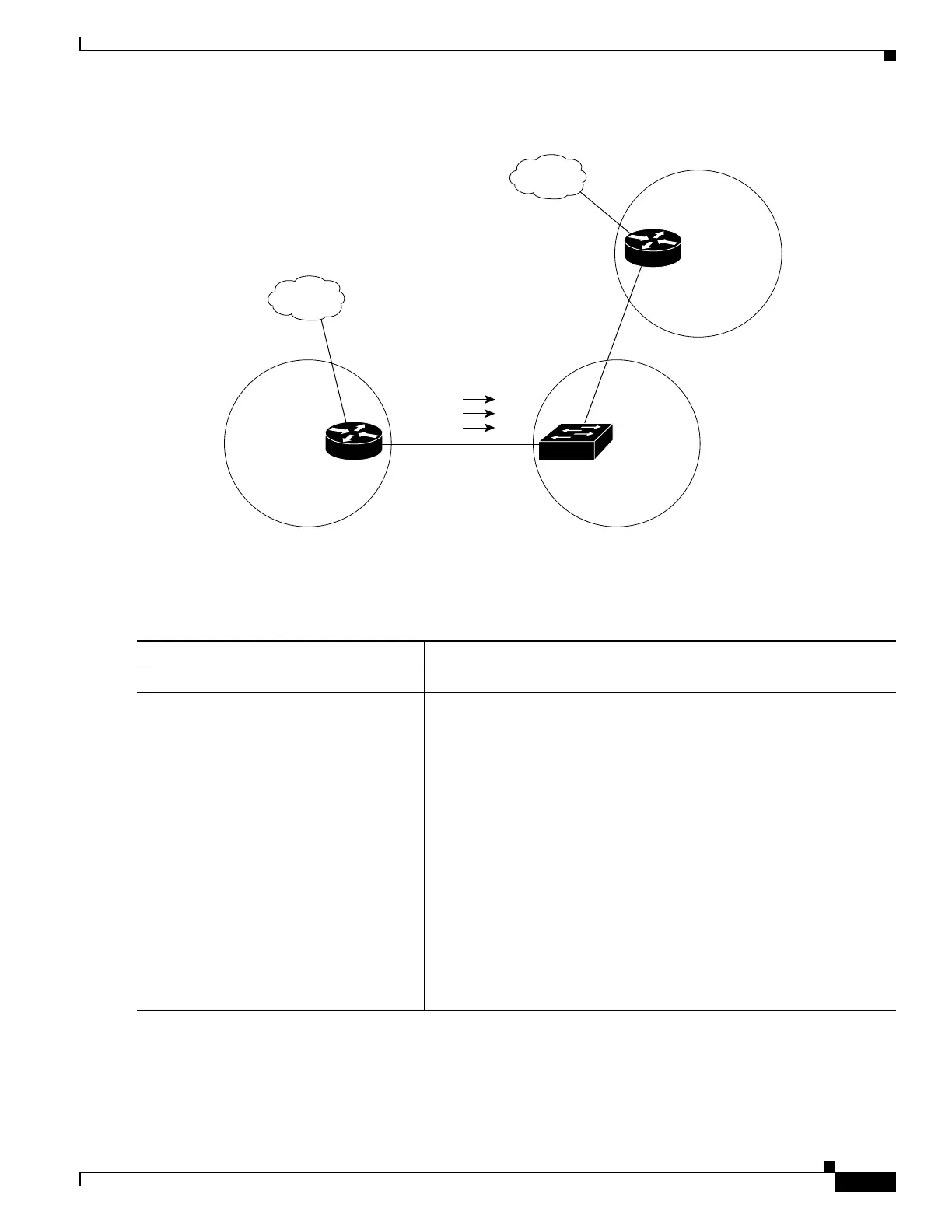

Figure 1-2 Default MSDP Peer Network
Beginning in privileged EXEC mode, follow these steps to specify a default MSDP peer. This procedure
is required.
ISP A PIM domain
ISP C PIM domain
SA
Router A
Switch B
10.1.1.1
Default MSDP peer
Default MSDP peer
Default MSDP peer
Customer PIM domain
Router C
SA
SA
86515
Command Purpose
Step 1
configure terminal Enter global configuration mode.
Step 2
ip msdp default-peer ip-address | name
[prefix-list list]
Define a default peer from which to accept all MSDP SA messages.
• For ip-address | name, enter the IP address or Domain Name
System (DNS) server name of the MSDP default peer.
• (Optional) For prefix-list list, enter the list name that specifies the
peer to be the default peer only for the listed prefixes. You can have
multiple active default peers when you have a prefix list associated
with each.
When you enter multiple ip msdp default-peer commands with the
prefix-list keyword, you use all the default peers at the same time
for different RP prefixes. This syntax is typically used in a service
provider cloud that connects stub site clouds.
When you enter multiple ip msdp default-peer commands without
the prefix-list keyword, a single active peer accepts all SA
messages. If that peer fails, the next configured default peer accepts
all SA messages. This syntax is typically used at a stub site.

Cisco Catalyst 3560-X Specifications

General

Enclosure Type	Rack-mountable - 1U
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000 + 4 x SFP
Flash Memory	64 MB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Operating System	Cisco IOS
Device Type	Switch
Performance	Switching capacity: 128 Gbps
Jumbo Frame Support	Yes
Routing Protocol	RIP-1, RIP-2, EIGRP
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS
Features	DHCP support, VLAN support, QoS, IPv6 support, Syslog
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at
Stacking	Stackable
Security Features	SSH, RADIUS, TACACS+
Management	CLI
Dimensions (H x W x D)	17.5 in
Operating Temperature	32 to 113 °F (0 to 45 °C)
Humidity	10 - 95% (non-condensing)
