Catalyst 3750-X and 3560-X Switch Software Configuration Guide
OL-25303-03
Chapter 1 Configuring Flex Links and the MAC Address-Table Move Update Feature
Configuring Flex Links and MAC Address-Table Move Update

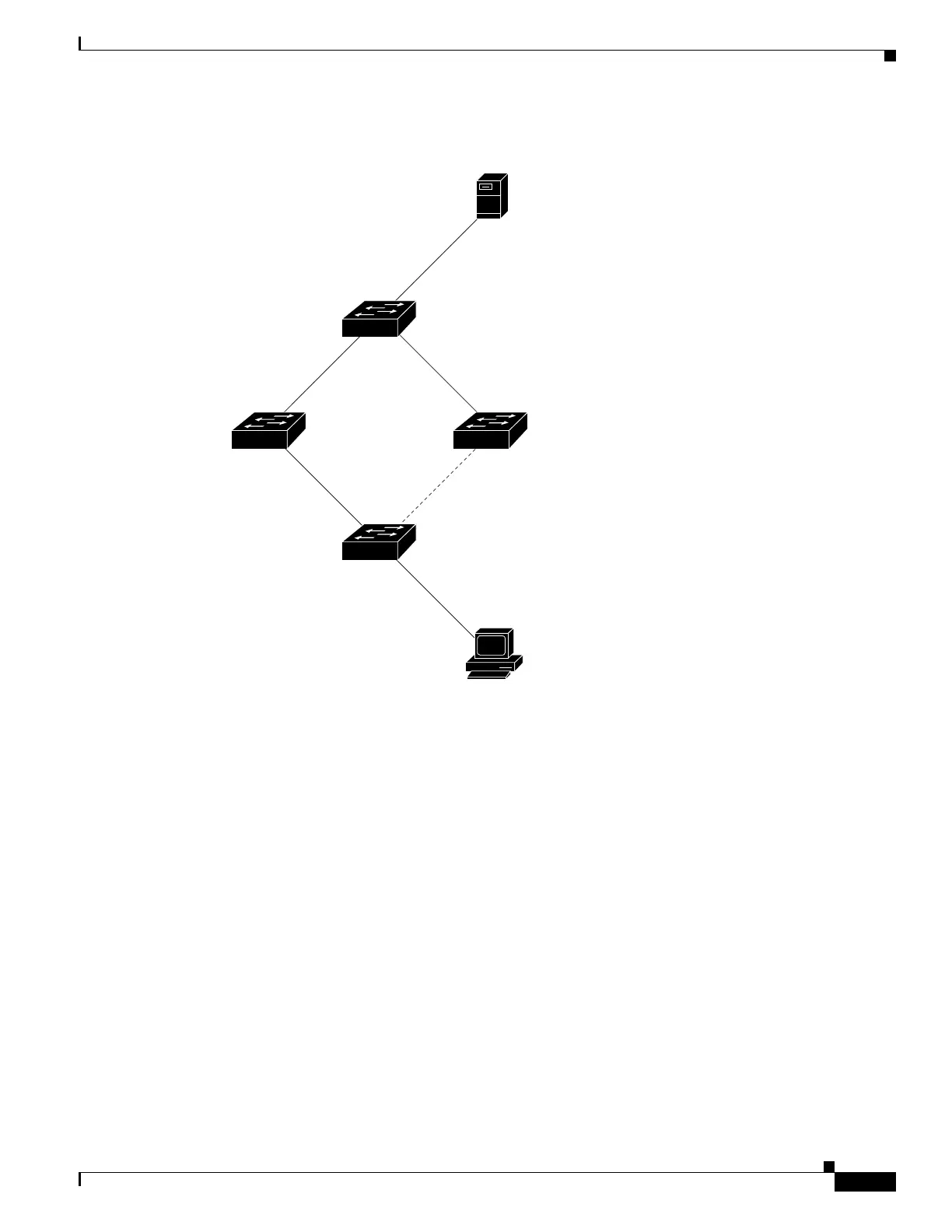

Figure 1-3 MAC Address-Table Move Update Example
Configuring Flex Links and MAC Address-Table Move Update
These sections contain this information:
• Configuration Guidelines, page 1-7
• Default Configuration, page 1-8
• Configuring Flex Links, page 1-8
• Configuring VLAN Load Balancing on Flex Links, page 1-10
• Configuring the MAC Address-Table Move Update Feature, page 1-12
Configuration Guidelines
• You can configure up to 16 backup links.
• You can configure only one Flex Link backup link for any active link, and it must be a different
interface from the active interface.
Switch C
Port 3
Port 1
Port 2
Port 4
Switch A
Switch B Switch D
Server
PC
141223

Cisco Catalyst 3560-X Specifications

General

Enclosure Type	Rack-mountable - 1U
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000 + 4 x SFP
Flash Memory	64 MB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Operating System	Cisco IOS
Device Type	Switch
Performance	Switching capacity: 128 Gbps
Jumbo Frame Support	Yes
Routing Protocol	RIP-1, RIP-2, EIGRP
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS
Features	DHCP support, VLAN support, QoS, IPv6 support, Syslog
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at
Stacking	Stackable
Security Features	SSH, RADIUS, TACACS+
Management	CLI
Dimensions (H x W x D)	17.5 in
Operating Temperature	32 to 113 °F (0 to 45 °C)
Humidity	10 - 95% (non-condensing)
