Catalyst 3750-X and 3560-X Switch Software Configuration Guide
OL-25303-03
Chapter 1 Configuring Cisco IOS Configuration Engine
Understanding Cisco Configuration Engine Software

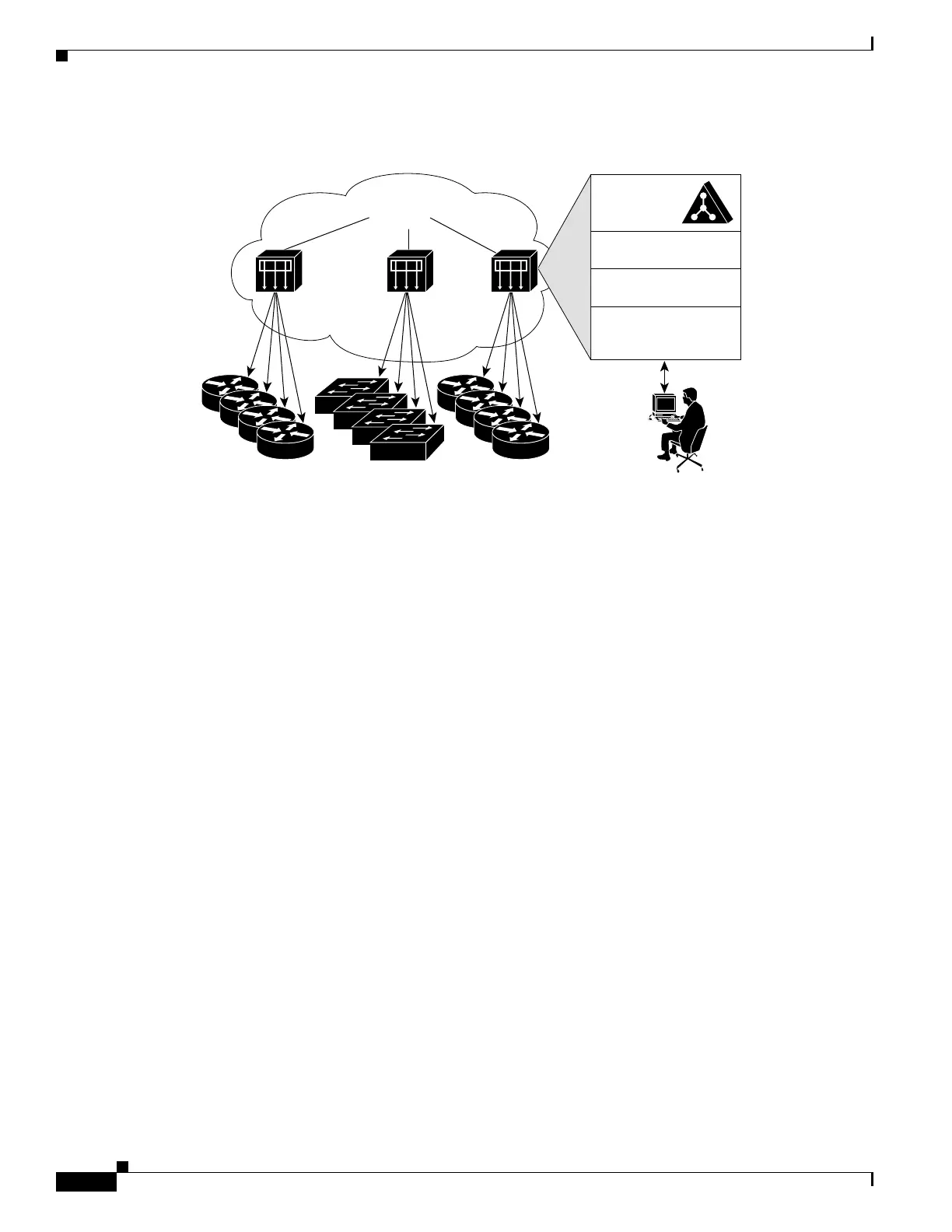

Figure 1-1 Configuration Engine Architectural Overview
These sections contain this conceptual information:
• Configuration Service, page 1-2
• Event Service, page 1-3
• What You Should Know About the CNS IDs and Device Hostnames, page 1-3
Configuration Service
The Configuration Service is the core component of the Cisco Configuration Engine. It consists of a
configuration server that works with Cisco IOS CNS agents on the switch. The Configuration Service
delivers device and service configurations to the switch for initial configuration and mass
reconfiguration by logical groups. Switches receive their initial configuration from the Configuration
Service when they start up on the network for the first time.
The Configuration Service uses the CNS Event Service to send and receive configuration change events
and to send success and failure notifications.
The configuration server is a web server that uses configuration templates and the device-specific
configuration information stored in the embedded (standalone mode) or remote (server mode) directory.
Configuration templates are text files containing static configuration information in the form of CLI
commands. In the templates, variables are specified by using Lightweight Directory Access Protocol
(LDAP) URLs that reference the device-specific configuration information stored in a directory.
The Cisco IOS agent can perform a syntax check on received configuration files and publish events to
show the success or failure of the syntax check. The configuration agent can either apply configurations
immediately or delay the application until receipt of a synchronization event from the configuration
server.
Configuration
engine
Service provider network
Order entry
configuration management
Data service
directory
Configuration server
Event service
Web-based
user interface
141327

Cisco Catalyst 3560-X Specifications

General

Enclosure Type	Rack-mountable - 1U
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000 + 4 x SFP
Flash Memory	64 MB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Operating System	Cisco IOS
Device Type	Switch
Performance	Switching capacity: 128 Gbps
Jumbo Frame Support	Yes
Routing Protocol	RIP-1, RIP-2, EIGRP
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS
Features	DHCP support, VLAN support, QoS, IPv6 support, Syslog
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at
Stacking	Stackable
Security Features	SSH, RADIUS, TACACS+
Management	CLI
Dimensions (H x W x D)	17.5 in
Operating Temperature	32 to 113 °F (0 to 45 °C)
Humidity	10 - 95% (non-condensing)
