Cisco Catalyst 3560-X User Manual

CHAPTER
1-1
Catalyst 3750-X and 3560-X Switch Software Configuration Guide
OL-25303-03
1
Configuring TelePresence E911 IP Phone Support
Unless otherwise noted, the term switch refers to a standalone switch and to a switch stack.
Note This feature is not supported on switches running the LAN base feature set.
The Catalyst 3750-X and 3560-X switch command reference has command syntax and usage
information.
• Understanding TelePresence E911 IP Phone Support, page 1-1
• Configuring TelePresence E911 IP Phone Support, page 1-2
Understanding TelePresence E911 IP Phone Support
You can use a Cisco IP phone as a user interface in a Cisco TelePresence System. See in Figure 1. In this
configuration, the IP phone must always be on and available for emergency calls. If the power to the
codec in the Cisco TelePresence System fails, is disrupted or if the codec fails, the IP phone is not
available.

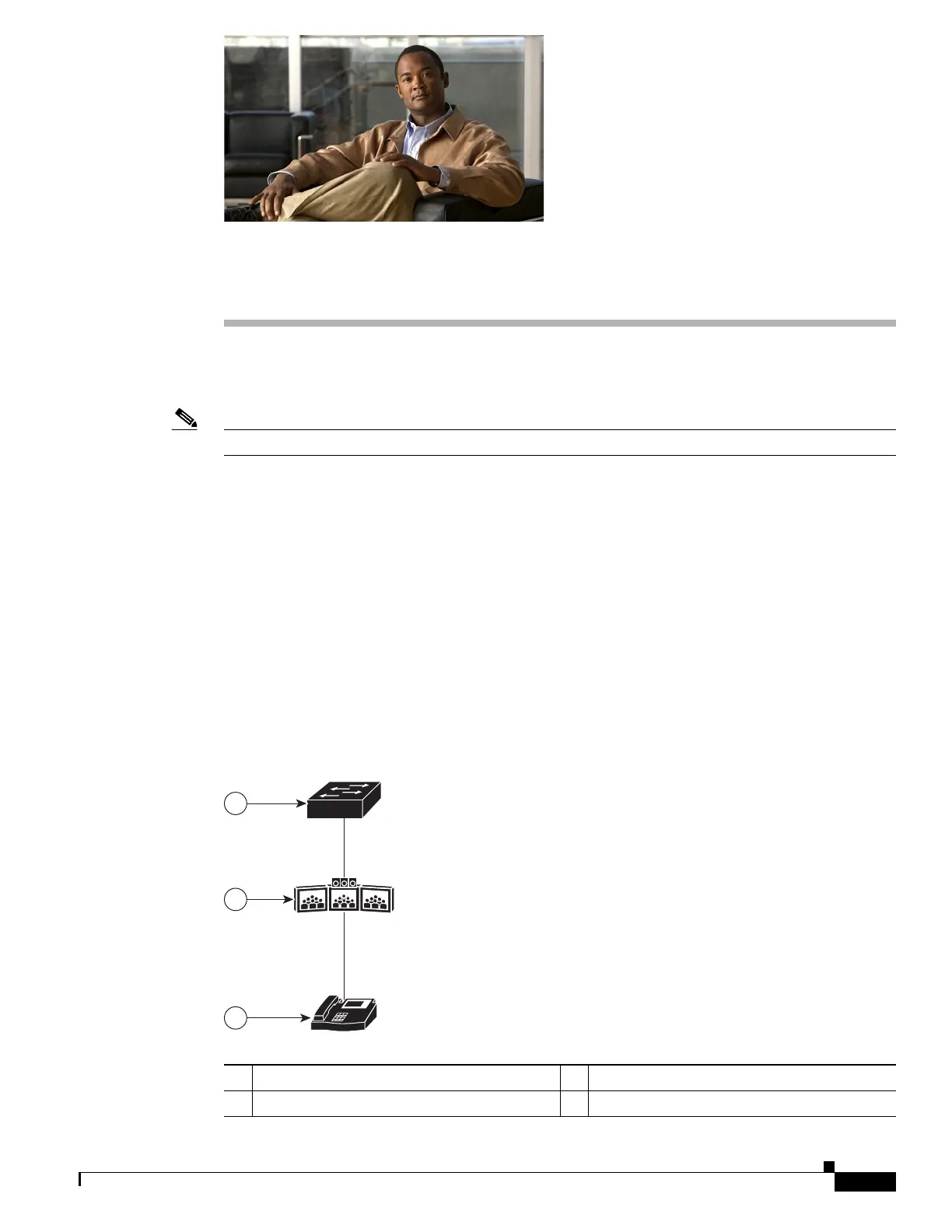

Figure 1-1 Phone-Codec-Switch Connection
1 Switch 3 IP phone
2 Cisco TelePresence System with a codec
IP
1
2
3
277226

Cisco Catalyst 3560-X Specifications

General

Enclosure Type	Rack-mountable - 1U
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000 + 4 x SFP
Flash Memory	64 MB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Operating System	Cisco IOS
Device Type	Switch
Performance	Switching capacity: 128 Gbps
Jumbo Frame Support	Yes
Routing Protocol	RIP-1, RIP-2, EIGRP
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS
Features	DHCP support, VLAN support, QoS, IPv6 support, Syslog
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at
Stacking	Stackable
Security Features	SSH, RADIUS, TACACS+
Management	CLI
Dimensions (H x W x D)	17.5 in
Operating Temperature	32 to 113 °F (0 to 45 °C)
Humidity	10 - 95% (non-condensing)
