Chapter 1 Configuring Network Security with ACLs
Displaying IPv4 ACL Configuration

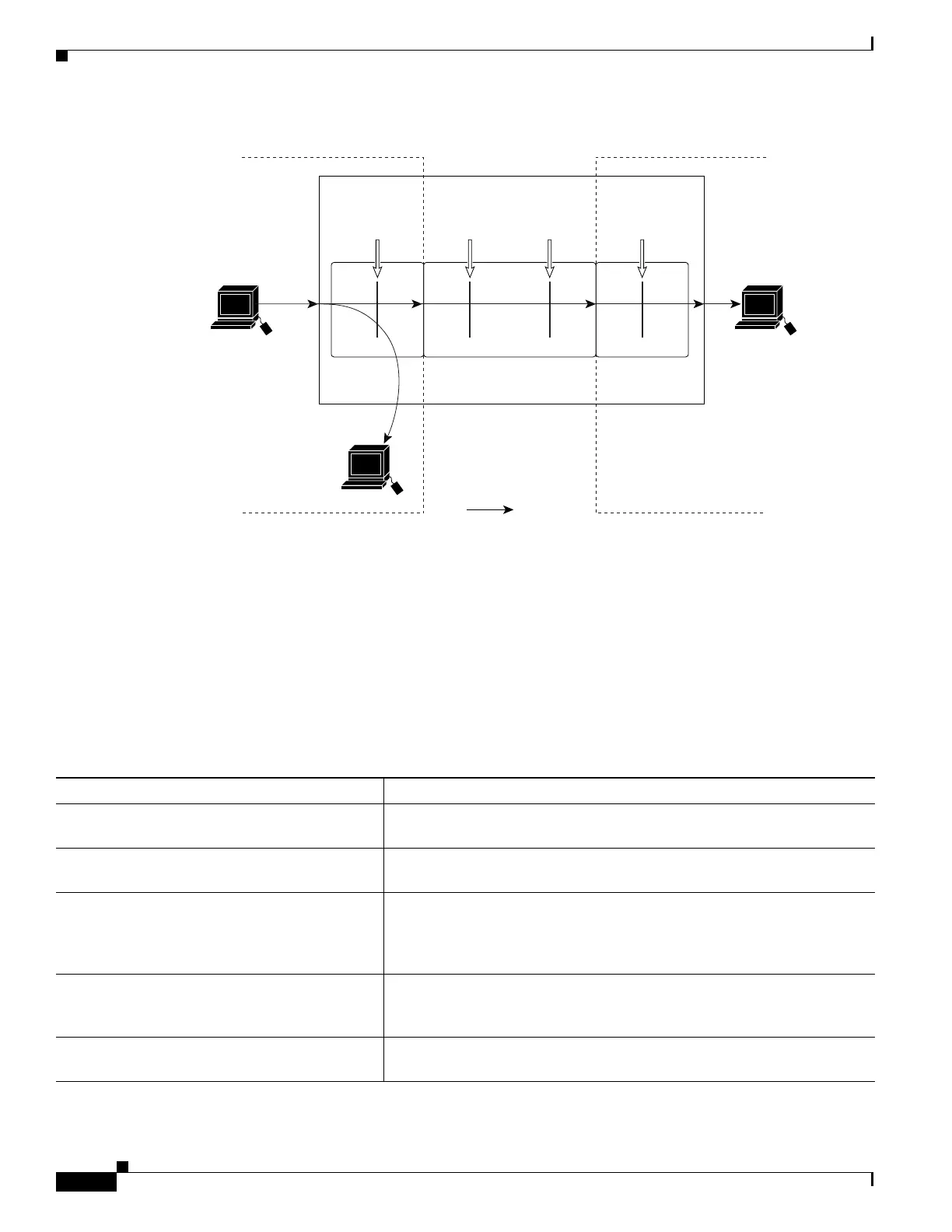

Figure 1-9 Applying ACLs on Multicast Packets
Displaying IPv4 ACL Configuration
You can display the ACLs that are configured on the switch, and you can display the ACLs that have
been applied to interfaces and VLANs.
When you use the ip access-group interface configuration command to apply ACLs to a Layer 2 or 3
interface, you can display the access groups on the interface. You can also display the MAC ACLs
applied to a Layer 2 interface. You can use the privileged EXEC commands as described in Table 1-2 to
display this information.
VLAN 10
map
Frame
Input
router
ACL
Output
router
ACL
Routing function
VLAN 10 VLAN 20
Host C
(VLAN 10)
Host A
(VLAN 10)
Host B
(VLAN 20)
VLAN 20
map
Packet
101360
Table 1-2 Commands for Displaying Access Lists and Access Groups
Command Purpose
show access-lists [number | name] Display the contents of one or all current IP and MAC address access lists
or a specific access list (numbered or named).
show ip access-lists [number | name] Display the contents of all current IP access lists or a specific IP access list
(numbered or named).
show ip interface interface-id Display detailed configuration and status of an interface. If IP is enabled
on the interface and ACLs have been applied by using the ip access-group
interface configuration command, the access groups are included in the
display.
show running-config [interface interface-id] Displays the contents of the configuration file for the switch or the
specified interface, including all configured MAC and IP access lists and
which access groups are applied to an interface.
show mac access-group [interface interface-id]
Displays MAC access lists applied to all Layer 2 interfaces or the specified
Layer 2 interface.

Cisco Catalyst 3560-X Specifications

General

Enclosure Type	Rack-mountable - 1U
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000 + 4 x SFP
Flash Memory	64 MB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Operating System	Cisco IOS
Device Type	Switch
Performance	Switching capacity: 128 Gbps
Jumbo Frame Support	Yes
Routing Protocol	RIP-1, RIP-2, EIGRP
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS
Features	DHCP support, VLAN support, QoS, IPv6 support, Syslog
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at
Stacking	Stackable
Security Features	SSH, RADIUS, TACACS+
Management	CLI
Dimensions (H x W x D)	17.5 in
Operating Temperature	32 to 113 °F (0 to 45 °C)
Humidity	10 - 95% (non-condensing)
