Cisco Catalyst 3560-X User Manual

1-43
Catalyst 3750-X and 3560-X Switch Software Configuration Guide
OL-25303-03
Chapter 1 Configuring Network Security with ACLs
Using VLAN Maps with Router ACLs
ACLs and Routed Packets
Figure 1-8 shows how ACLs are applied on routed packets. The ACLs are applied in this order:
1. VLAN map for input VLAN
2. Input router ACL
3. Output router ACL
4. VLAN map for output VLAN

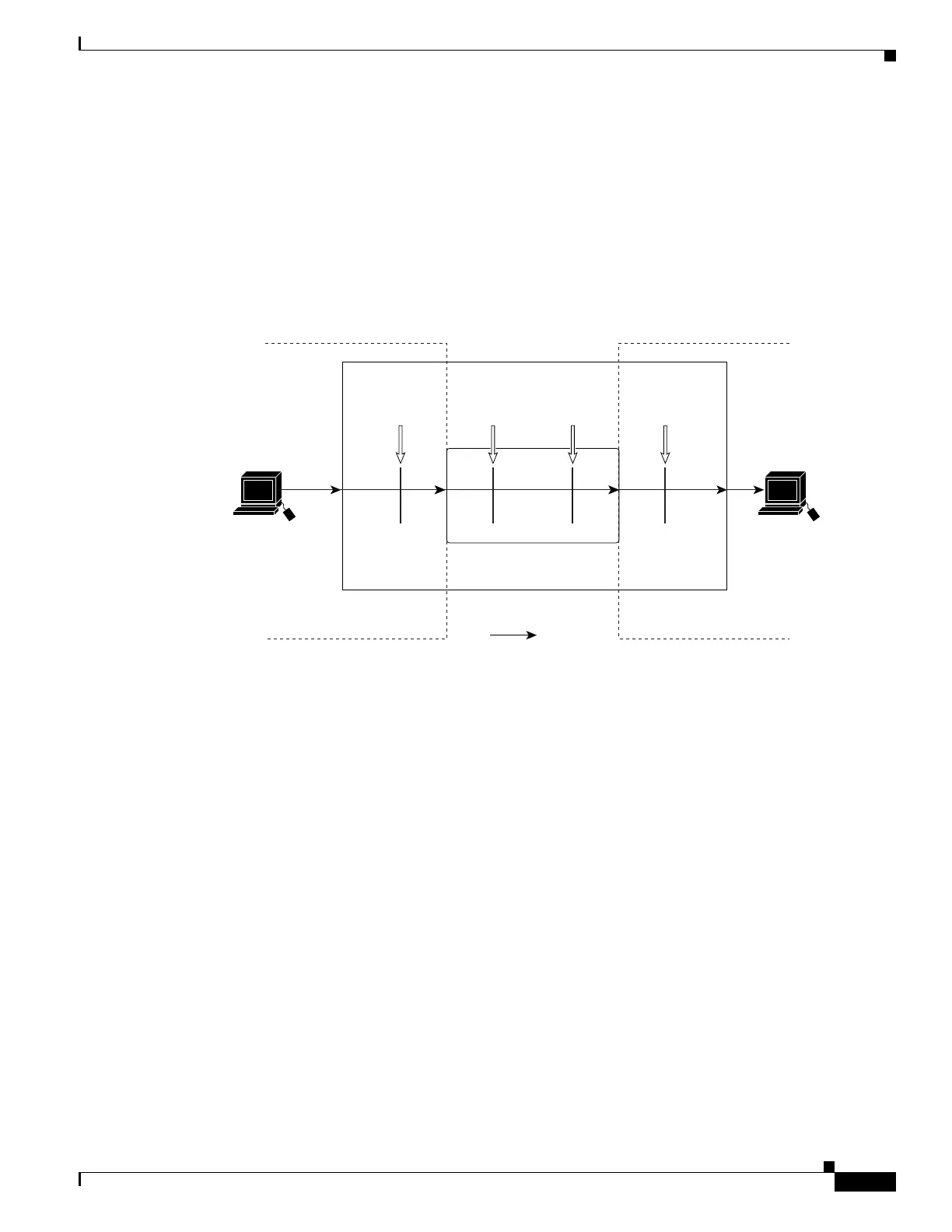

Figure 1-8 Applying ACLs on Routed Packets
ACLs and Multicast Packets
Figure 1-9 shows how ACLs are applied on packets that are replicated for IP multicasting. A multicast
packet being routed has two different kinds of filters applied: one for destinations that are other ports in
the input VLAN and another for each of the destinations that are in other VLANs to which the packet
has been routed. The packet might be routed to more than one output VLAN, in which case a different
router output ACL and VLAN map would apply for each destination VLAN.
The final result is that the packet might be permitted in some of the output VLANs and not in others. A
copy of the packet is forwarded to those destinations where it is permitted. However, if the input VLAN
map (VLAN 10 map in Figure 1-9) drops the packet, no destination receives a copy of the packet.
Frame
Routing function
VLAN 10
Host A
(VLAN 10)
Packet
101359
VLAN 20
Host B
(VLAN 20)
VLAN 10
map
Input
router
ACL
Output
router
ACL
VLAN 20
map

Cisco Catalyst 3560-X Specifications

General

Enclosure Type	Rack-mountable - 1U
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000 + 4 x SFP
Flash Memory	64 MB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Operating System	Cisco IOS
Device Type	Switch
Performance	Switching capacity: 128 Gbps
Jumbo Frame Support	Yes
Routing Protocol	RIP-1, RIP-2, EIGRP
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS
Features	DHCP support, VLAN support, QoS, IPv6 support, Syslog
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at
Stacking	Stackable
Security Features	SSH, RADIUS, TACACS+
Management	CLI
Dimensions (H x W x D)	17.5 in
Operating Temperature	32 to 113 °F (0 to 45 °C)
Humidity	10 - 95% (non-condensing)
