Catalyst 3750-X and 3560-X Switch Software Configuration Guide
OL-25303-03
Chapter 1 Configuring HSRP and VRRP
Understanding HSRP

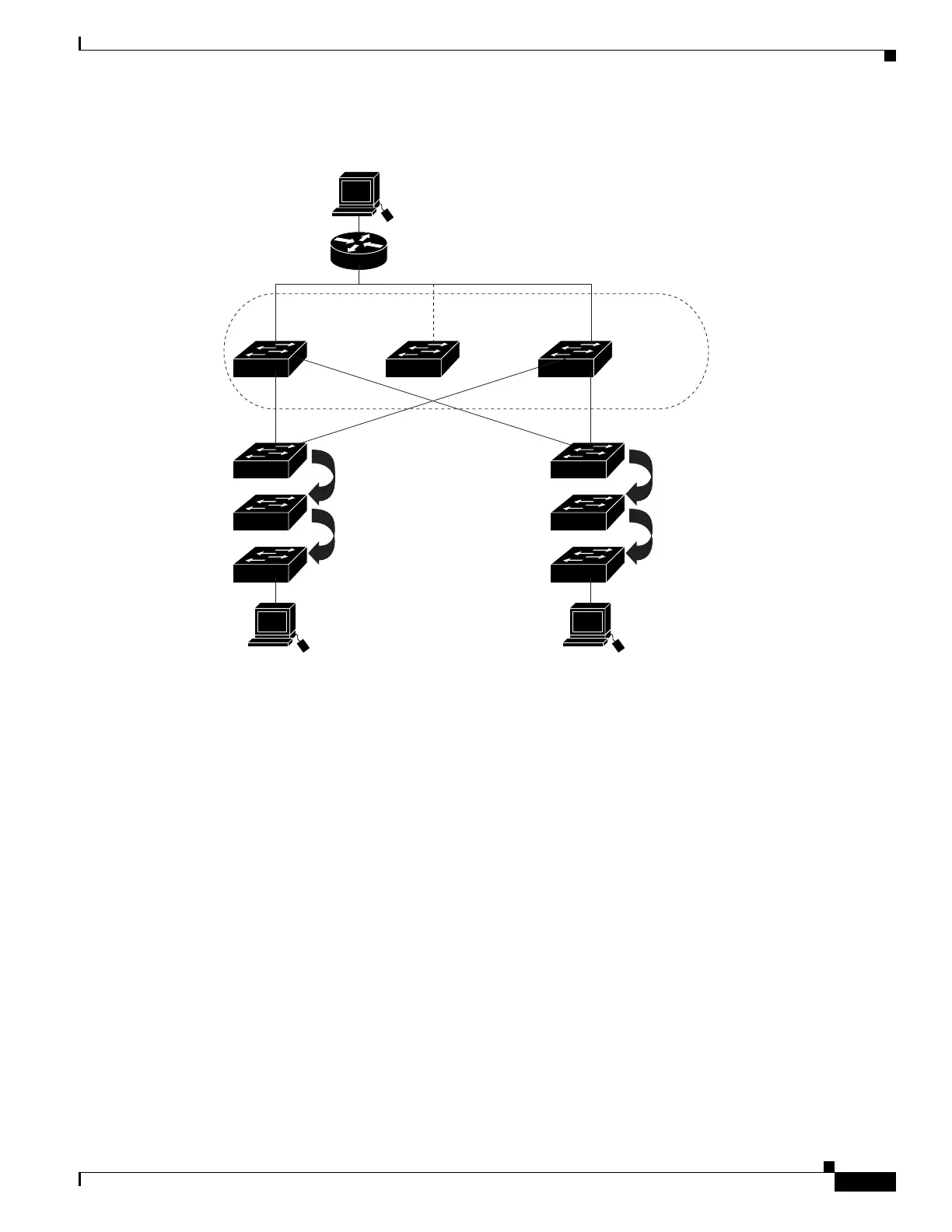

Figure 1-1 Typical HSRP Configuration
HSRP Versions
The switch supports these HSRP versions:
• HSRPv1—Version 1 of the HSRP, the default version of HSRP. It has these features:
– The HSRP group number can be from 0 to 255.
– HSRPv1 uses the multicast address 224.0.0.2 to send hello packets, which can conflict with
Cisco Group Management Protocol (CGMP) leave processing. You cannot enable HSRPv1 and
CGMP at the same time; they are mutually exclusive.
• HSRPv2—Version 2 of the HSRP has these features:
– To match the HSRP group number to the VLAN ID of a subinterface, HSRPv2 can use a group
number from 0 to 4095 and a MAC address from 0000.0C9F.F000 to 0000.0C9F.FFFF.
– HSRPv2 uses the multicast address 224.0.0.102 to send hello packets. HSRPv2 and CGMP
leave processing are no longer mutually exclusive, and both can be enabled at the same time.
– HSRPv2 has a different packet format than HRSPv1.
A switch running HSRPv1 cannot identify the physical router that sent a hello packet because
the source MAC address of the router is the virtual MAC address.
Host B
172.20.130.5
172.20.128.32
Host A
172.20.128.55
172.20.128.1 172.20.128.3 172.20.128.2
Virtual
router
Active
router
Standby
router
Router A Router B
101361
Host C

Cisco Catalyst 3560-X Specifications

General

Enclosure Type	Rack-mountable - 1U
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000 + 4 x SFP
Flash Memory	64 MB
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Operating System	Cisco IOS
Device Type	Switch
Performance	Switching capacity: 128 Gbps
Jumbo Frame Support	Yes
Routing Protocol	RIP-1, RIP-2, EIGRP
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS
Features	DHCP support, VLAN support, QoS, IPv6 support, Syslog
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at
Stacking	Stackable
Security Features	SSH, RADIUS, TACACS+
Management	CLI
Dimensions (H x W x D)	17.5 in
Operating Temperature	32 to 113 °F (0 to 45 °C)
Humidity	10 - 95% (non-condensing)
