Planning a Switch Cluster

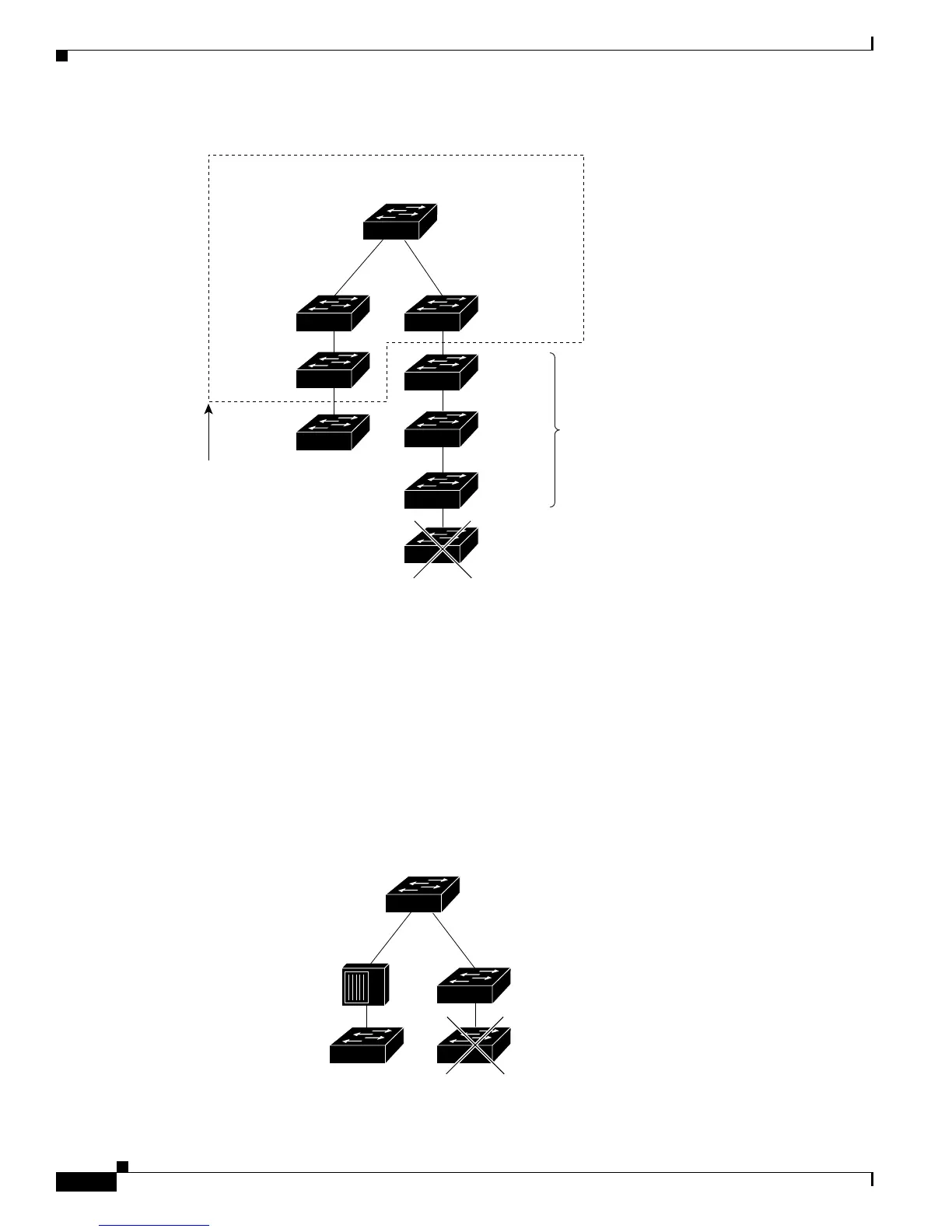

Figure 6-1 Discovery Through CDP Hops
Discovery Through Non-CDP-Capable and Noncluster-Capable Devices
If a cluster command switch is connected to a non-CDP-capable third-party hub (such as a non-Cisco
hub), it can discover cluster-enabled devices connected to that third-party hub. However, if the cluster
command switch is connected to a noncluster-capable Cisco device, it cannot discover a cluster-enabled
device connected beyond the noncluster-capable Cisco device.
Figure 6-2 sh
ows that the cluster command switch discovers the switch that is connected to a third-party
hub. However, the cluster command switch does not discover the switch that is connected to a
Ca
talyst 5000 switch.
Figure 6-2 Discovery Through Non-CDP-Capable and Noncluster-Capable Devices
Command device
Member
device 10
Member
device 8
Member
device 9
VLAN 62
Edge of
cluster
VLAN 16
101321
Device 11
candidate
device
Candidate
devices
Device 12
Device 13
Device 14
Device 15
Command device
Catalyst 5000 switch
(noncluster-capable)
Third-party hub
(non-CDP-capable)
Candidate device Candidate device
89377

Cisco Catalyst 3750-X Specifications

General

Switching Capacity	160 Gbps
Stacking Bandwidth	64 Gbps
Max Stacking Units	9
Layer Support	Layer 2 and Layer 3
Form Factor	Rack-mountable
DRAM	256 MB
Flash Memory	64 MB
Model	Cisco Catalyst 3750-X Series
Ports	24 or 48 10/100/1000 Ethernet ports
Uplink Interfaces	4 SFP or 2 SFP+
Features	StackWise Plus, EnergyWise
Image	IP Base or IP Services
Operating Temperature	0 to 40°C
Operating Humidity	10 to 85% noncondensing
