Chapter 37 Configuring Network Security with ACLs
Configuring IPv4 ACLs
ACLs in a Small Networked Office
Figure 37-3 shows a small networked office environment with routed Port 2 connected to Server A,
containing benefits and other information that all emplo
yees can access, and routed Port 1 connected to
Server B, containing confidential payroll data. All users can access Server A, but Server B has restricted
access.
Use router ACLs to do this in one of two ways:
• Create a standard ACL, and filter traffic coming to the server from Port 1.
• Create an extended ACL, and filter traffic coming from the server into Port 1.

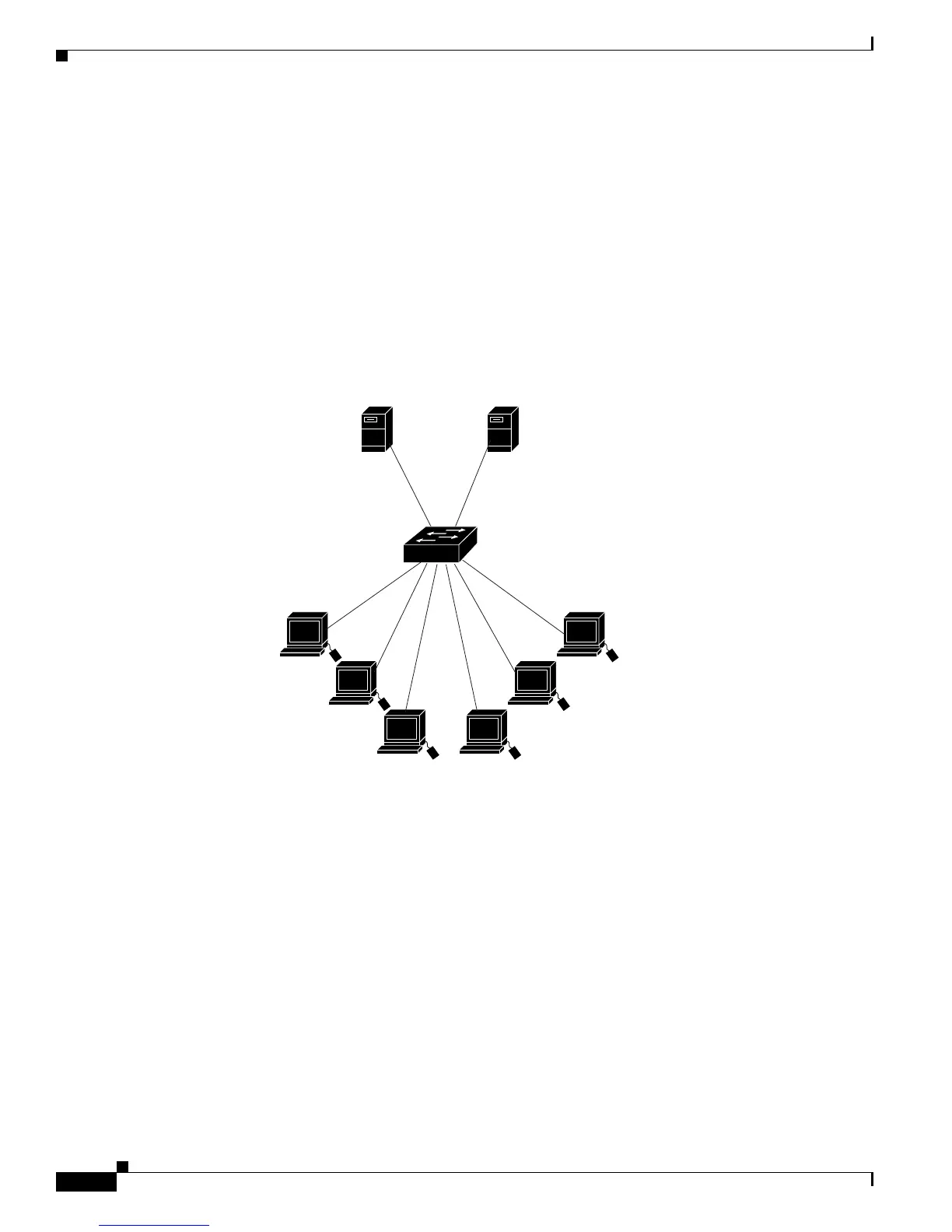

Figure 37-3 Using Router ACLs to Control Traffic
This example uses a standard ACL to filter traffic coming into Server B from a port, permitting traffic
only from Accounting’s source addresses 172.20.128.64 to 172.20.128.95. The ACL is applied to traffic
coming out of routed Port 1 from the specified source address.
Switch(config)# access-list 6 permit 172.20.128.64 0.0.0.31
Switch(config)# end
Switch# s
how access-lists
Standard IP access list 6
10 permit 172.20.128.64, wildcard bits 0.0.0.31
Switch(config)# interface gigabit
ethernet1/0/1
Switch(config-if)# ip access-grou
p 6 out
This example uses an extended ACL to filter traffic coming from Server B into a port, permitting traffic
from any source address (in this case Server B) to only the Accounting destination addresses
172.20.128.64 to 172.20.128.95. The ACL is applied to traffic going into routed Port 1, permitting it to
go only to the specified destination addresses. Note that with extended ACLs, you must enter the
protocol (IP) before the source and destination information.
Switch(config)# access-list 106 permit ip any 172.20.128.64 0.0.0.31
Switch(config)# end
Switch# s
how access-lists
Server A
Benefits
Server B
Payroll
Port 2 Port 1
Accounting
172.20.128.64-95
Human Resources
172.20.128.0-31
101354

Cisco Catalyst 3750-X Specifications

General

Switching Capacity	160 Gbps
Stacking Bandwidth	64 Gbps
Max Stacking Units	9
Layer Support	Layer 2 and Layer 3
Form Factor	Rack-mountable
DRAM	256 MB
Flash Memory	64 MB
Model	Cisco Catalyst 3750-X Series
Ports	24 or 48 10/100/1000 Ethernet ports
Uplink Interfaces	4 SFP or 2 SFP+
Features	StackWise Plus, EnergyWise
Image	IP Base or IP Services
Operating Temperature	0 to 40°C
Operating Humidity	10 to 85% noncondensing
