Chapter 39 Configuring QoS
Configuring Standard QoS
Regardless of the DSCP transparency configuration, the switch modifies the internal DSCP value of the
packet, which the switch uses to generate a class of service (CoS) value that represents the priority of
the traffic. The switch also uses the internal DSCP value to select an egress queue and threshold.
Beginning in privileged EXEC mode, follow these steps to e
nable DSCP transparency on a switch:
To configure the switch to modify the DSCP value based on the trust setting or on an ACL by disabling
DSC
P transparency, use the mls qos rewrite ip dscp global configuration command.
If you disable QoS by using the no
mls qos global configuration command, the CoS and DSCP values
are not changed (the default QoS setting).
If you enter the no mls qos r
ewrite ip dscp global configuration command to enable DSCP transparency
and then enter the mls qos trust [cos | dscp] interface configuration command, DSCP transparency is
still enabled.
Configuring the DSCP Trust State on a Port Bordering Another QoS Domain
If you are administering two separate QoS domains between which you want to implement QoS features
for IP traffic, you can configure the switch ports bordering the domains to a DSCP-trusted state as shown
in Figure 39-16. Then the receiving port accepts the DSC
P-trusted value and avoids the classification
stage of QoS. If the two domains use different DSCP values, you can configure the
DSCP-t
o-DSCP-mutation map to translate a set of DSCP values to match the definition in the other
domain.

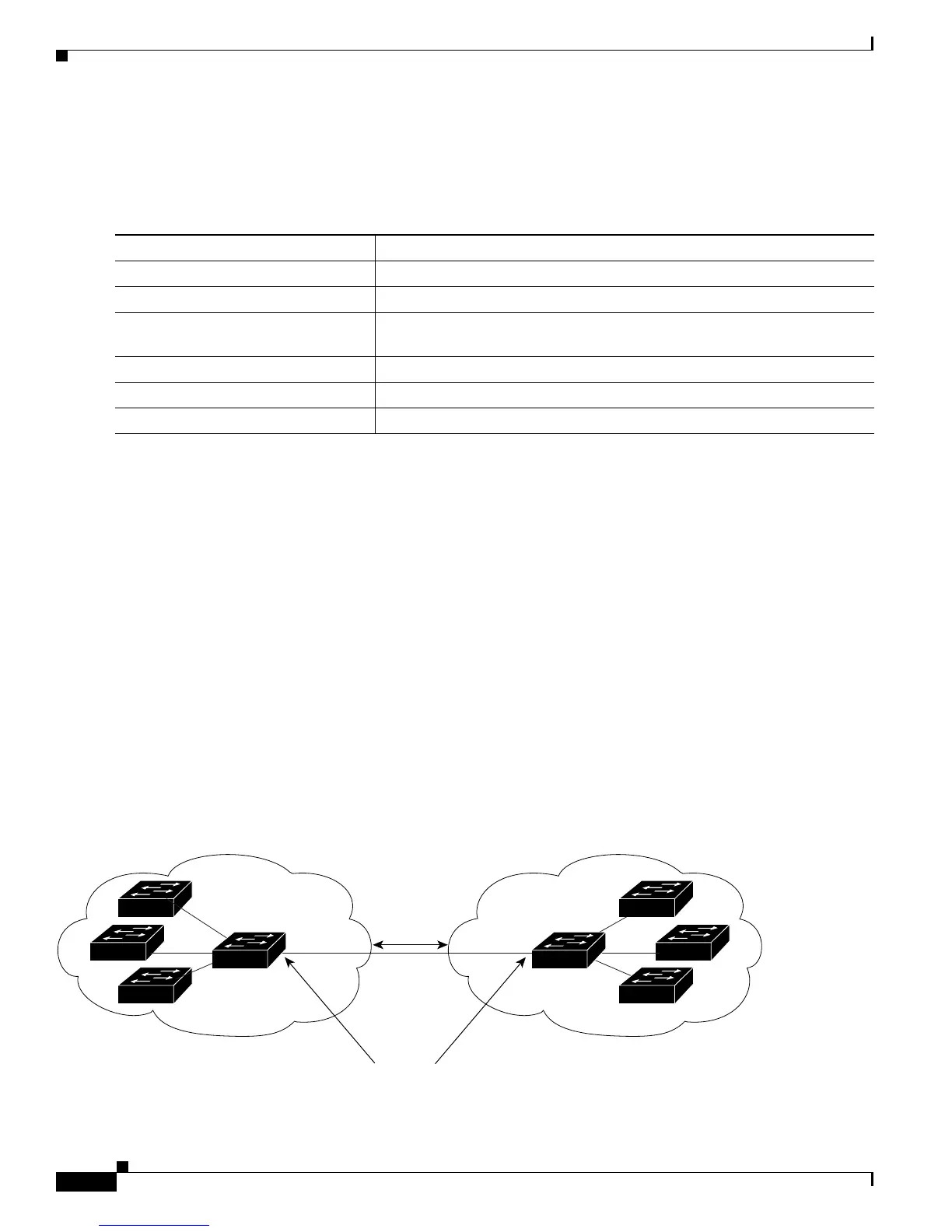

Figure 39-16 DSCP-Trusted State on a Port Bordering Another QoS Domain
Command Purpose
Step 1
configure terminal Enter global configuration mode.
Step 2
mls qos Enable QoS globally.
Step 3
no mls qos rewrite ip dscp Enable DSCP transparency. The switch is configured to not modify the
DSCP field of the IP packet.
Step 4
end Return to privileged EXEC mode.
Step 5
show mls qos interface [interface-id] Verify your entries.
Step 6
copy running-config startup-config (Optional) Save your entries in the configuration file.
101235
QoS Domain 1 QoS Domain 2
Set interface to the DSCP-trusted state.
Configure the DSCP-to-DSCP-mutation map.
IP traffic

Cisco Catalyst 3750-X Specifications

General

Switching Capacity	160 Gbps
Stacking Bandwidth	64 Gbps
Max Stacking Units	9
Layer Support	Layer 2 and Layer 3
Form Factor	Rack-mountable
DRAM	256 MB
Flash Memory	64 MB
Model	Cisco Catalyst 3750-X Series
Ports	24 or 48 10/100/1000 Ethernet ports
Uplink Interfaces	4 SFP or 2 SFP+
Features	StackWise Plus, EnergyWise
Image	IP Base or IP Services
Operating Temperature	0 to 40°C
Operating Humidity	10 to 85% noncondensing
