12-5

Catalyst 3750-X and 3560-X Switch Software Configuration Guide

OL-21521-01

Chapter 12 Configuring Web-Based Authentication

Understanding Web-Based Authentication

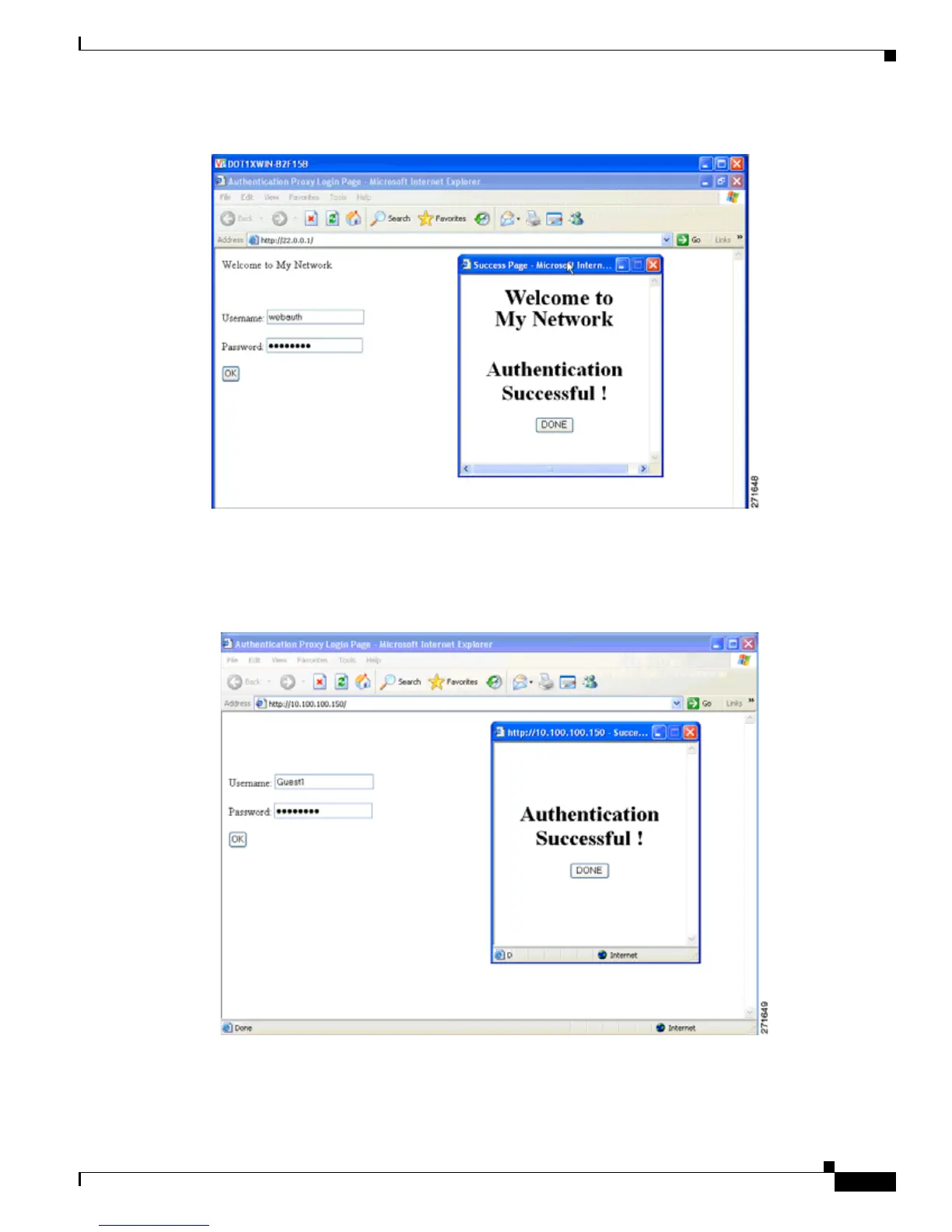

Figure 12-3 Customized Web Banner

If you do not enable a banner, only the username and password dialog boxes appear in the web

authentication login screen, and no banner appears when you log into the switch, as shown in

Figure 12-4.

Figure 12-4 Login Screen With No Banner

For more information, see the Cisco IOS Security Command Reference and the “Configuring a Web

Authentication Local Banner” section on page 12-16.
