21-4
Catalyst 3750-X and 3560-X Switch Software Configuration Guide
OL-21521-01
Chapter 21 Configuring MSTP
Understanding MSTP
The IST connects all the MSTP switches in the region and appears as a subtree in the CIST that
encompasses the entire switched domain. The root of the subtree is the CIST regional root. The MST
region appears as a virtual switch to adjacent STP switches and MST regions.

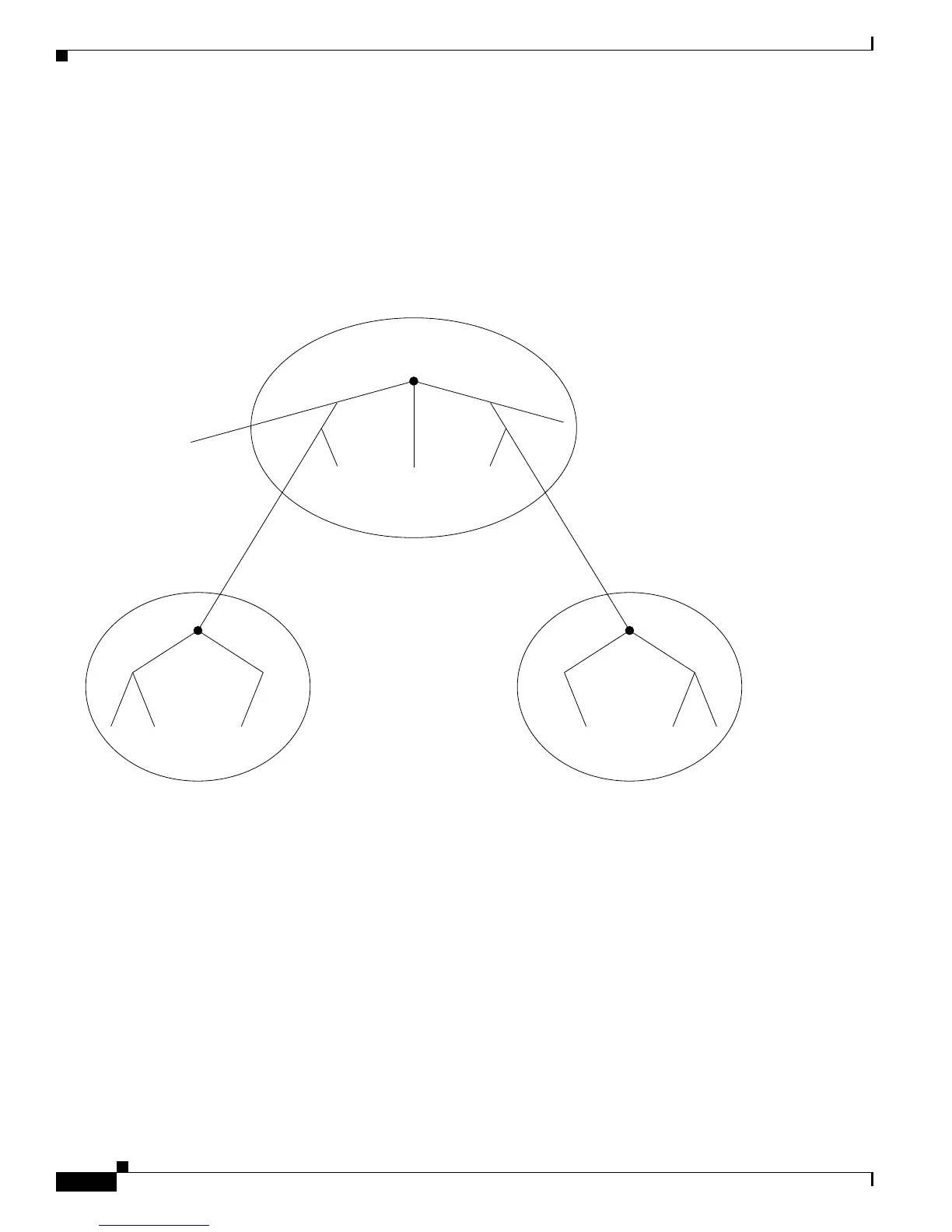

Figure 21-1
shows a network with three MST regions and a legacy IEEE 802.1D switch (D). The CIST
regional root for region 1 (A) is also the CIST root. The CIST regional root for region 2 (B) and the CIST
re
gional root for region 3 (C) are the roots for their respective subtrees within the CIST. The RSTP runs
in all regions.
Figure 21-1 MST Regions, CIST Masters, and CST Root
Only the CST instance sends and receives BPDUs, and MST instances add their spanning-tree
information into the BPDUs to interact with neighboring switches and compute the final spanning-tree
topology. Because of this, the spanning-tree parameters related to BPDU transmission (for example,
hello time, forward time, max-age, and max-hops) are configured only on the CST instance but affect all
MST instances. Parameters related to the spanning-tree topology (for example, switch priority, port
VLAN cost, and port VLAN priority) can be configured on both the CST instance and the MST instance.
MSTP switches use Version 3 RSTP BPDUs or IEEE 802.1D
STP BPDUs to communicate with legacy
IEEE 802.1D switches. MSTP switches use MSTP BPDUs to communicate with MSTP switches.
IST master
and CST root
IST master IST master
A
MST Region 1
D
Legacy IEEE 802.1D
B
MST Region 2 MST Region 3
C
92983
