Cisco Catalyst 3750-X User Manual

1-26
Catalyst 3750-X and 3560-X Switch Software Configuration Guide
OL-21521-01
Chapter 1 Overview
Network Configuration Examples
86931
Si
Si
Si
Si
Si
Si
Campus
core
Catalyst
6500 switches
Catalyst 4500
multilayer switches
StackWise Plus
switch stacks
Server racks

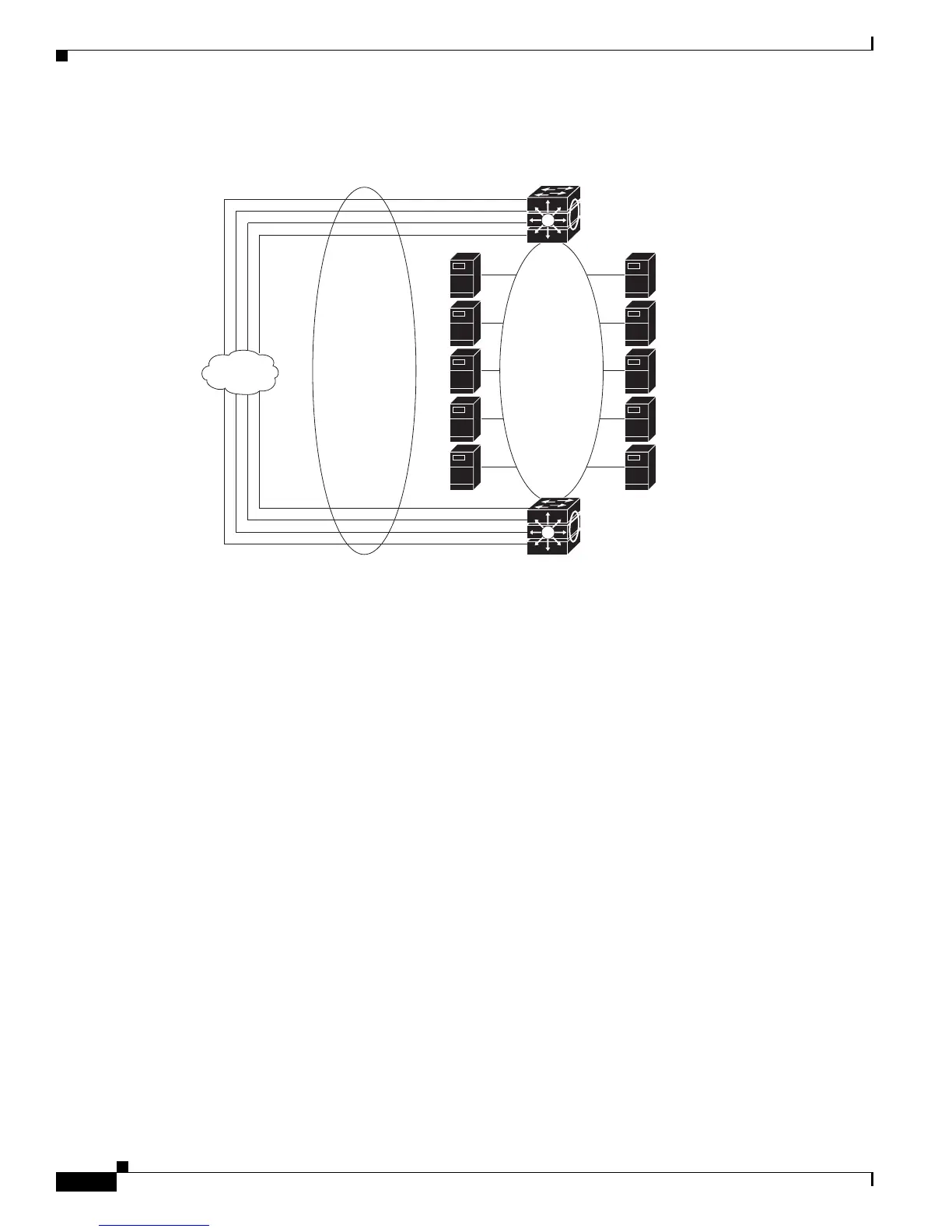

Figure 1-6 Linux Server Cluster
Small to
Medium-Sized Network Using Catalyst 3750-X and 3560-X Switches
Figure 1-7 and Figure 1-8 show a configuration for a network of up to 500 employees. This network uses
a Catalyst 3750-X-only Layer 3 switch stack or Catalyst 3560-X Layer 3 switches with high-speed
con
nections to two routers. For network reliability and load-balancing, this network has HSRP enabled
on the routers and on the switches. This ensures connectivity to the Internet, WAN, and mission-critical
network resources in case one of the routers or switches fails. The switches are using routed uplinks for
faster failover. They are also configured with equal-cost routing for load sharing and redundancy. (When
the network uses Catalyst 3750-X switches, a Layer 2 switch stack can use cross-stack Et
herChannel for
load sharing.)
The switches are connected to w
orkstations, and local servers, and IEEE 802.3af compliant and
noncompliant powered devices (such as Cisco IP Phones). The server farm includes a call-processing
server running Cisco CallManager software. Cisco CallManager controls call processing, routing, and
Cisco IP Phone features and configuration. The switches are interconnected through Gigabit interfaces.
200858
Campus
core
EtherChannel
across uplinks
Linux cluster
parallel-
processing
server farm
32-Gbps ring
StackWise Plus
switch stack
StackWise Plus
switch stack
Redundant SFP
module uplinks

Cisco Catalyst 3750-X Specifications

General

Switching Capacity	160 Gbps
Stacking Bandwidth	64 Gbps
Max Stacking Units	9
Layer Support	Layer 2 and Layer 3
Form Factor	Rack-mountable
DRAM	256 MB
Flash Memory	64 MB
Model	Cisco Catalyst 3750-X Series
Ports	24 or 48 10/100/1000 Ethernet ports
Uplink Interfaces	4 SFP or 2 SFP+
Features	StackWise Plus, EnergyWise
Image	IP Base or IP Services
Operating Temperature	0 to 40°C
Operating Humidity	10 to 85% noncondensing
