Chapter 40 Configuring EtherChannels and Link-State Tracking
Understanding Link-State Tracking

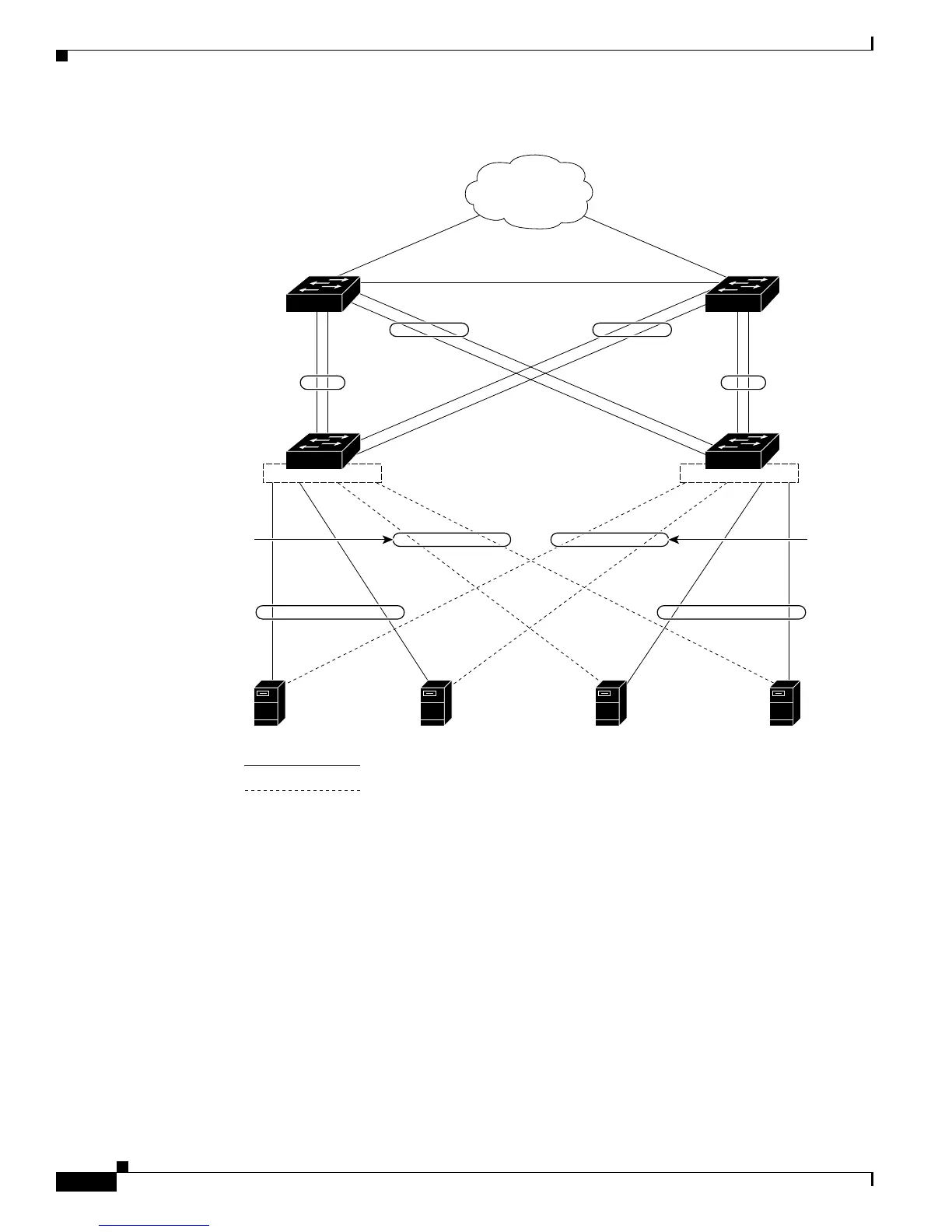

Figure 40-6 Typical Link-State Tracking Configuration
The configuration in Figure 40-6 ensures that the network traffic flow is balanced as follows:
• For links to switches and other network devices
– Server 1 and server 2 use switch A for primary links and switch B for secondary links.
– Server 3 and server 4 use switch B for primary links and switch A for secondary links.
• Link-state group 1 on switch A
– Switch A provides primary links to server 1 and server 2 through link-state group 1. Port 1 is
connected to server 1, and port 2 is connected to server 2. Port 1 and port 2 are the downstream
in
terfaces in link-state group 1.
– Port 5 and port 6 are connected to distribution switch 1 through link-state group 1. Port 5 and
port 6 are the upstream interfaces in link-state group 1.
141680
Network
Layer 3 link
Server 1 Server 2 Server 3 Server 4
Distribution
switch 1
Distribution
switch 2
Switch A Switch B
Port
1
Port
5
Port
4
Port
3
Port
2
Port
2
Port
3
Port
4
Port
8
Port
7
Port
6
Port
5
Port
1
Port
6
Port
7
Port
8
Link-
state
group 2
Link-state
group 1
Link-state
group 1
Link-state
group 2
Link-state
group 2
Link-
state
group 1
Link-
state
group 1
Primary link
Secondary link
Link-
state
group 2

Cisco Catalyst 3750-X Specifications

General

Switching Capacity	160 Gbps
Stacking Bandwidth	64 Gbps
Max Stacking Units	9
Layer Support	Layer 2 and Layer 3
Form Factor	Rack-mountable
DRAM	256 MB
Flash Memory	64 MB
Model	Cisco Catalyst 3750-X Series
Ports	24 or 48 10/100/1000 Ethernet ports
Uplink Interfaces	4 SFP or 2 SFP+
Features	StackWise Plus, EnergyWise
Image	IP Base or IP Services
Operating Temperature	0 to 40°C
Operating Humidity	10 to 85% noncondensing
