Cisco DX650 Administration Guide

d) Use the included screws and a no. 2 Phillips screwdriver to attach the bracket to the wall.

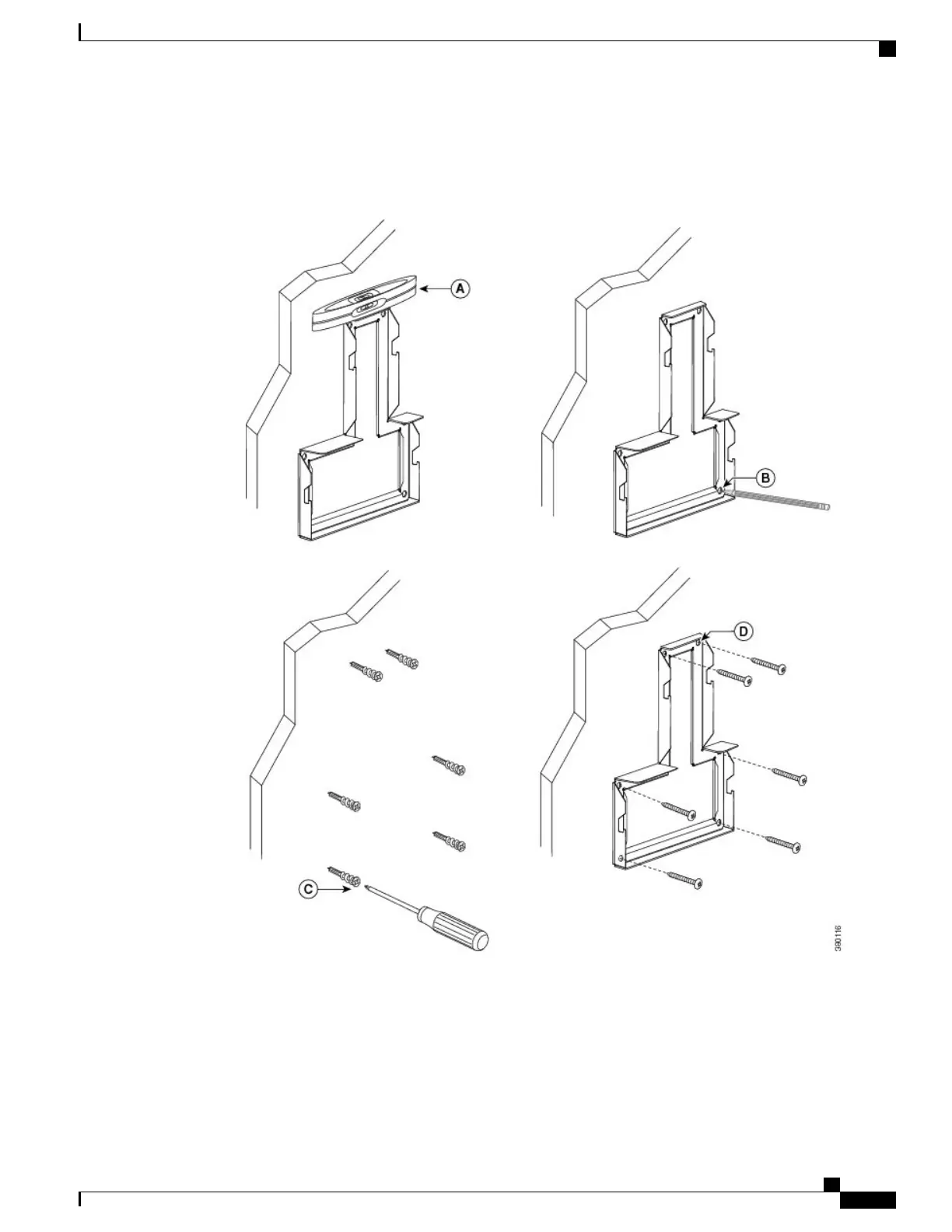

Figure 2: Mount Wall Bracket
Step 2
Attach the phone bracket to the phone.
a) Detach the handset cord (and headset cord, if any), power cord, and any other attached cords from the
base of the phone.
b) Slide the phone bracket onto the phone. Make sure the phone ports are accessible through the holes in the
bracket.
Cisco Desktop Collaboration Experience DX650 Administration Guide, Release 10.1(1)
63
Install Cisco Desktop Collaboration Experience

Cisco DX650 Specifications

General

Resolution	800 x 480 pixels
Audio	Wideband audio
USB Ports	2 x USB 2.0
Display	7-inch capacitive touchscreen
Camera	HD 720p
Connectivity	Ethernet, Wi-Fi
Bluetooth	Yes
SIP Protocol	Supported
Speakerphone	Full-duplex
Headset Jack	3.5 mm
Network Interfaces	10/100/1000 Ethernet
Supported Protocols	SIP
Codecs	G.722
Power over Ethernet (PoE)	Yes, IEEE 802.3af
Weight	2.2 lbs
