2-42 Compaq ProLiant ML570 Maintenance and Service Guide
Table 2-7
System Board Expansion Slots
Slot Description
PCI slot, 33-MHz/64-bit (non-hot-pluggable)
PCI slot, 33-MHz/64-bit
PCI slot, 33-MHz/64-bit
PCI slot, 66-MHz/64-bit
PCI slot, 66-MHz/64-bit
PCI slot, 33-MHz/64-bit (non-hot-pluggable)
Peripheral board slot (non-hot-pluggable)
PCI Hot Plug expansion slots are accessible using the PCI Hot Plug access door.
NOTE: The following procedure is for hot-pluggable I/O expansion boards. The board illustrated
in Figure 2-34 is an example of an extended SCSI type I/O expansion board.
To remove a hot-pluggable I/O expansion board:
1. Unlock and open the PCI Hot Plug access door.

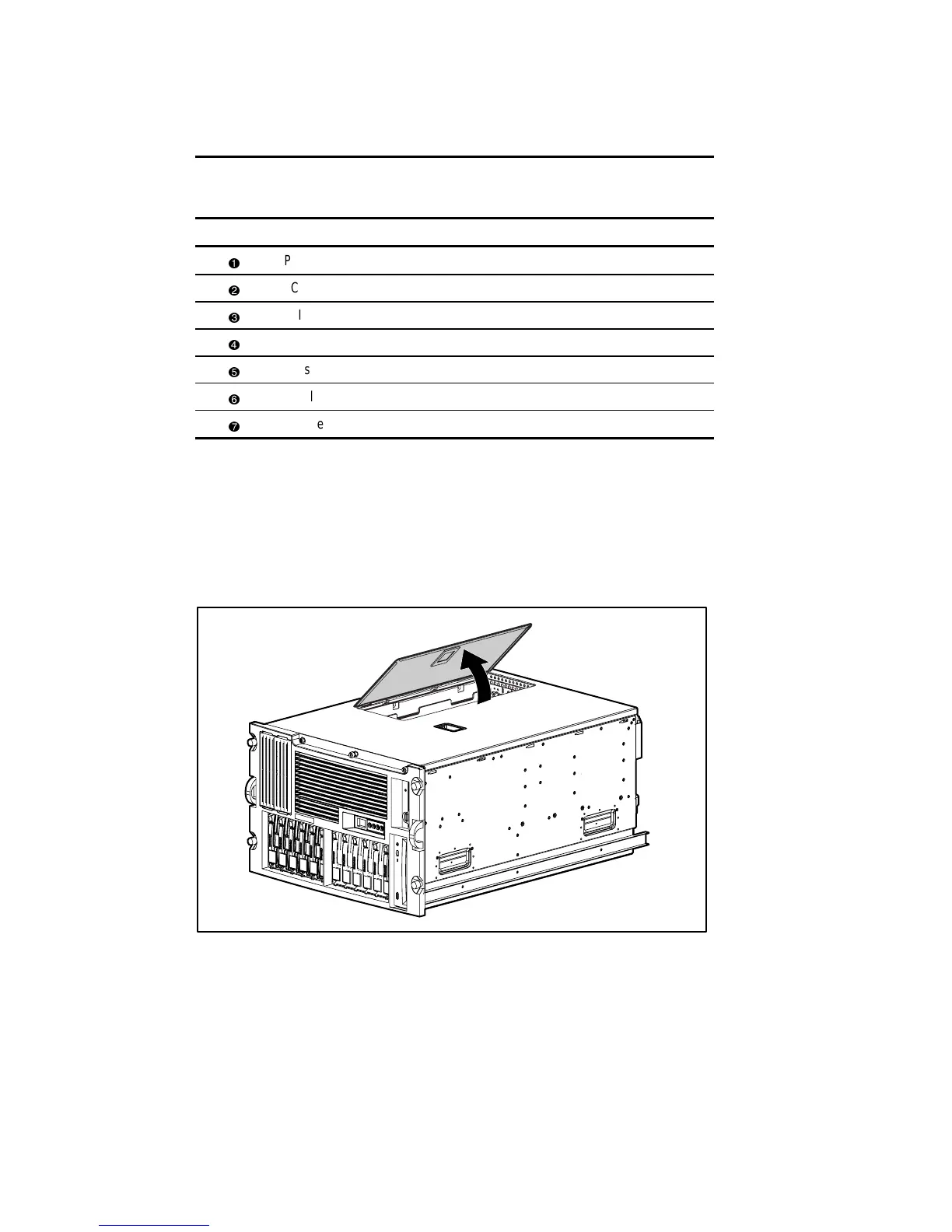

Figure 2-33. Opening the PCI Hot Plug access door
