Installation – RF Path Elements P/N 709C011801 Page 103
To install the mid-mount option:
5. Referring to Figure 5-58, assemble the RAU Frame Cover (provided with the RAU) onto the RAU.

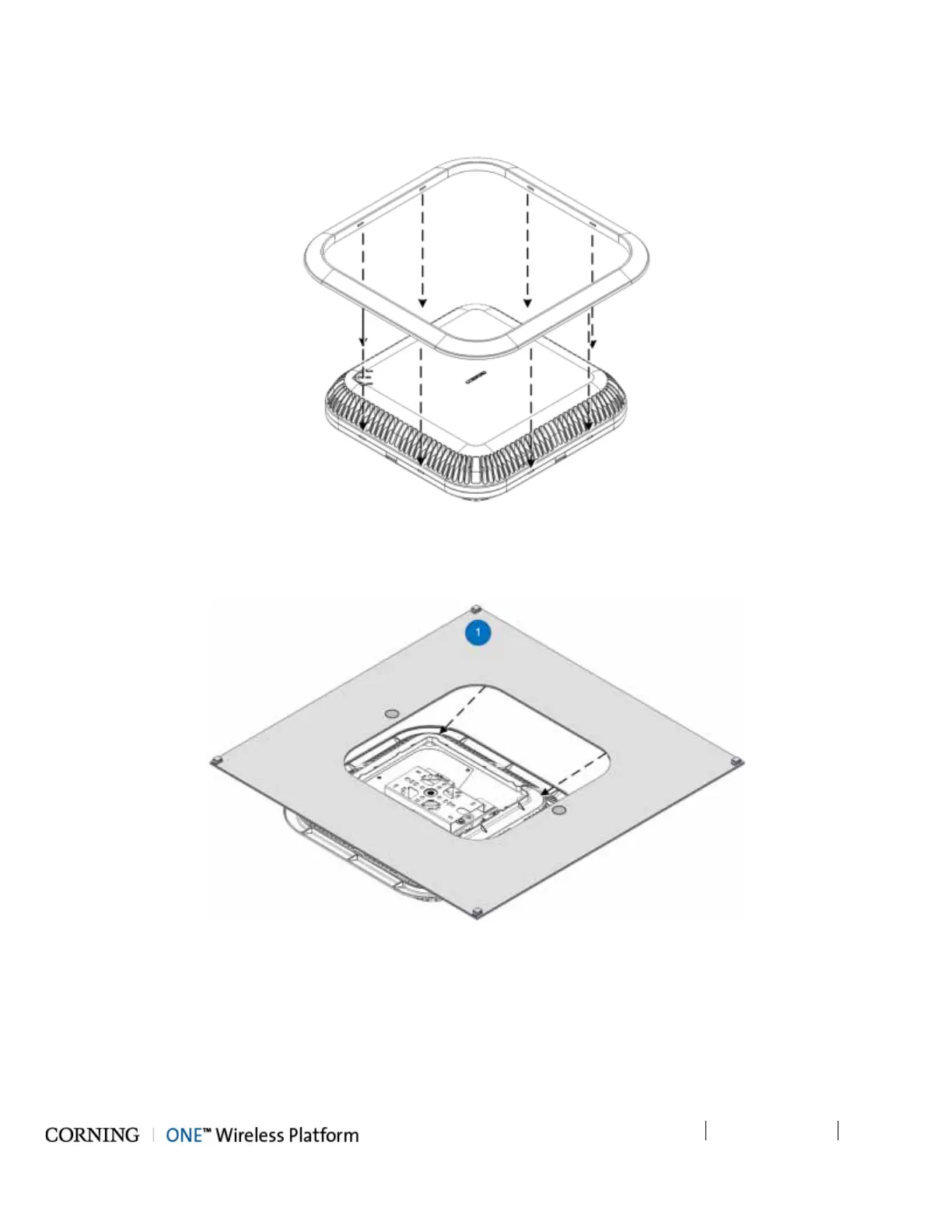

Figure 5-58. Assembling RAU Frame Cover
6. Position the RAU on a flat surface with the mounting bracket facing upwards and lower the plate (Item 1) onto the RAU, as
shown in Figure 5-59.
Figure 5-59. Lowering Plate onto RAU
