Installation – RF Path Elements P/N 709C011801 Page 104
DRAFT
7. Slide the Spacer (Item 2) in through the RAU mounting bracket and insert into bracket middle hole. Refer to Figure 5-60.

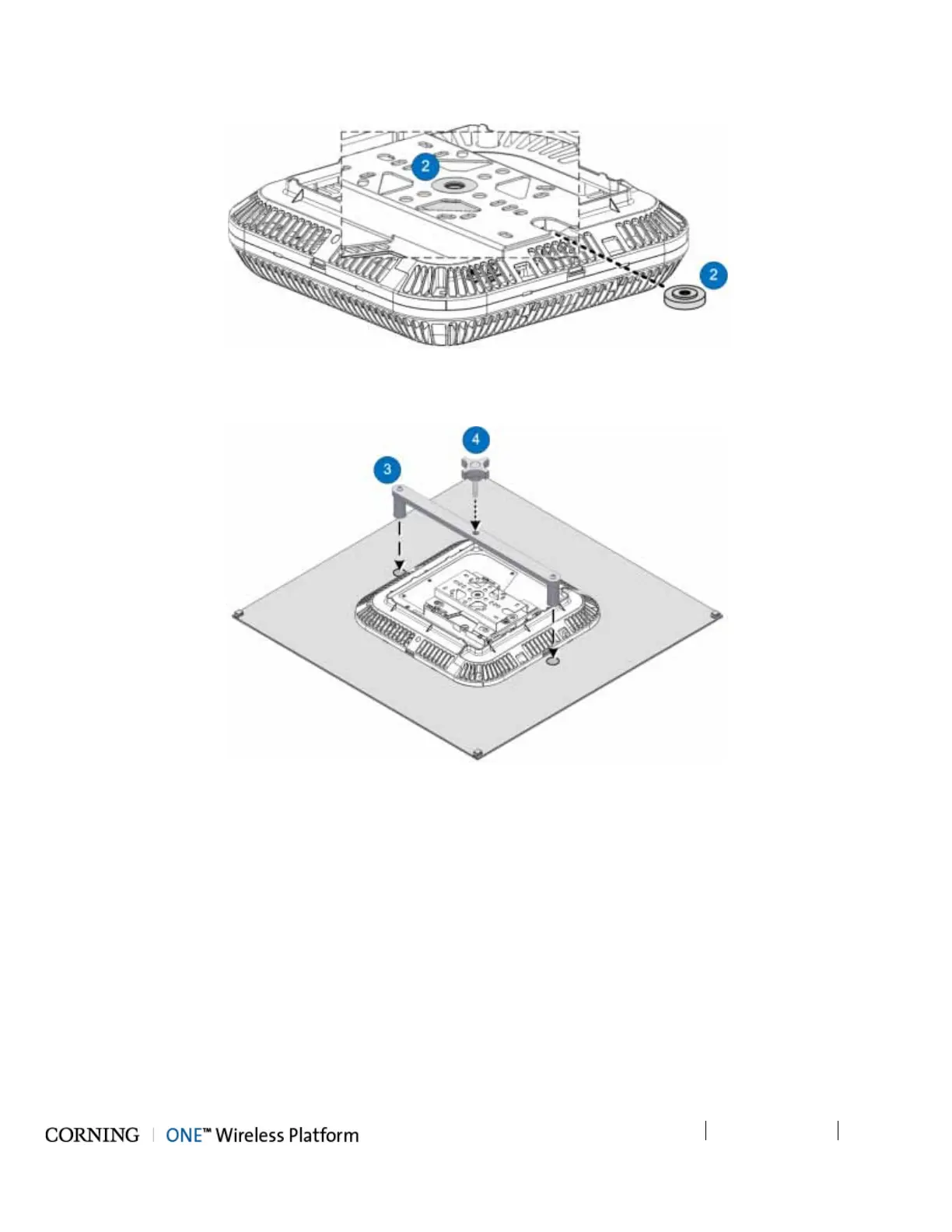

Figure 5-60. Inserting Spacer into RAU Mounting Bracket
8. Assemble Flat Bar (Item 3) and Knob (Item 4) as shown in Figure 5-61.
Figure 5-61. Assembling Flat Bar and Knob onto Plate
