Installation – RF Path Elements P/N 709C011801 Page 107
5. Pull the front panel and remove to access connectors. See Figure 5-64.
6. Connect optic fiber pair to RAU module LC APC connector. See Figure 5-65.
7. RAU optional RF connections:
• EXTERNAL ANT. – for RAU installations above acoustic ceiling requiring external antennas; QMA connector
• RF FILTER – (QMA) External Filter connections (if required by site planner; refer to section 5.2.3).

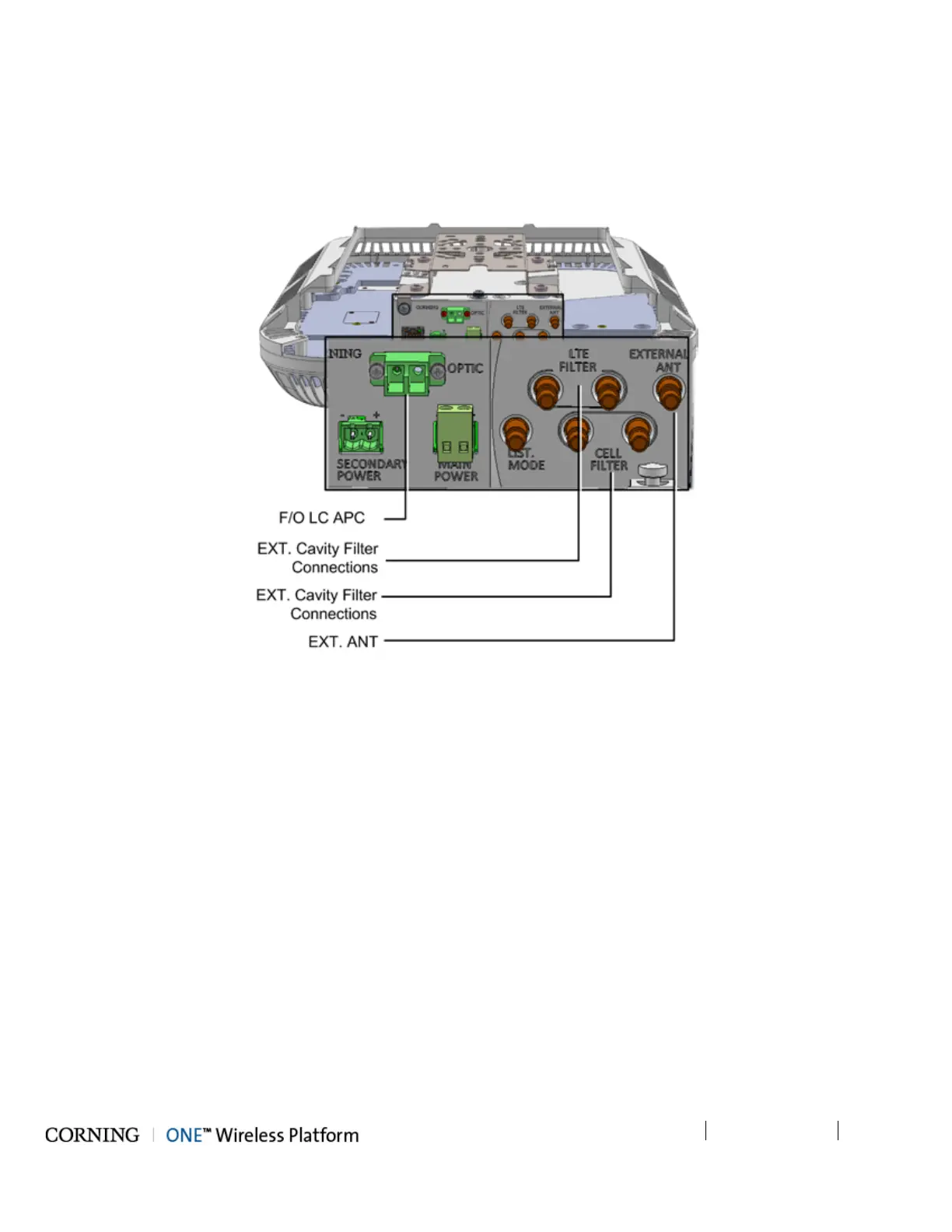

Figure 5-65. RAU Front Panel Connections
