User's Manual
2
2 The Grand Tour
This section introduces front panel, rear panel, port function and button function, indicator light
status, and so on.
2.1 8-HDD Series
2.1.1 Front Panel

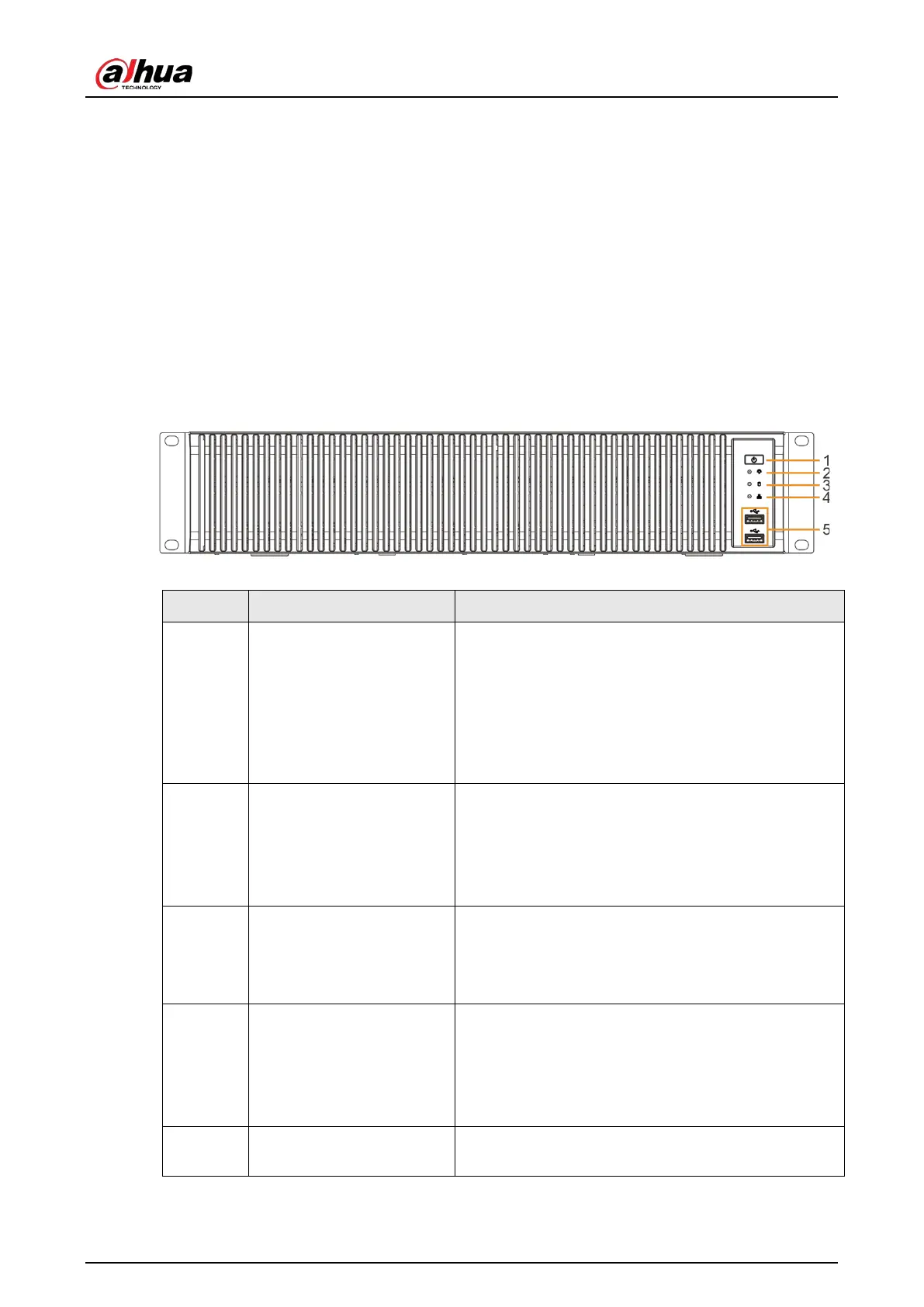

Figure 2-1 Front panel
Table 2-1 Front panel description
No. Button/Port Description
1 Power
Boot up or shut down device. Power indicator light
status is as follows:
●
When device is off (indicator light is off), press the
button for a short period to boot up device.
●
When device is running, (blue indicator light is
on), press the button for at least 4 seconds to shut
down the device.
2 Alarm indicator light
Displays local input alarm status.
●
The indicator light is off: There is no local alarm
input event.
●
Red indicator light is on: There is local alarm input
event.
3
System status indicator
light
Displays the system running status.
●
The blue light is on: Device is running properly.
●
The indicator light is off: The device is not
running.
4 Network indicator light
Displays current network status.
●
The indicator light is blue: It means at least one
Ethernet port has connected to the network.
●
The indicator light is off: No Ethernet ports are
connected to the network.
5 USB
Connects to external devices such as USB storage
device, keyboard and mouse.
To Next Page
