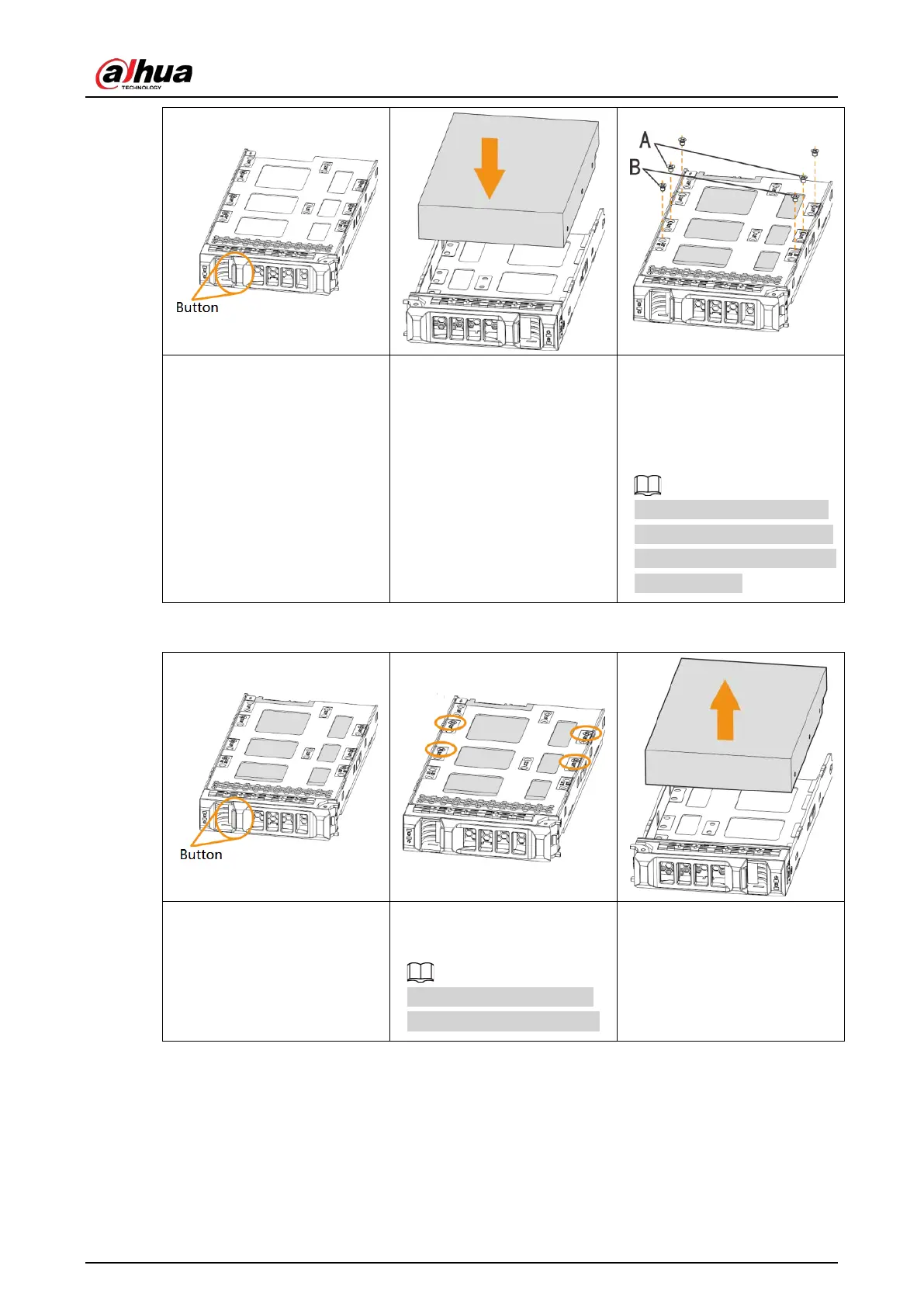

①

Press the button on the

front panel of IVSS, open the

handle, and then pull out the

HDD box.

②

Put the HDD into the box

along the direction shown in

the figure.

③

Lock the screws on the

back of the HDD box. Insert

the box into the HDD slot,

push it to the bottom, and

then close the handle.

In the figure, you only need

to lock one set of the screws

(Group A or Group B). See the

actual situation.

Removing HDD

①

Press the button on the

front panel of IVSS, open the

handle, and then pull out the

HDD box.

②

Unlock the screws on the

back of the HDD box.

The screws are at different

positions for different HDDs.

③

Take out the HDD and

reinsert the box to the slot.

Push it to the bottom and

close the box handle.

3.4 Cable Connection

The section introduces cable connection of the Device.
