User's Manual
5
2.1.3 Dimensions

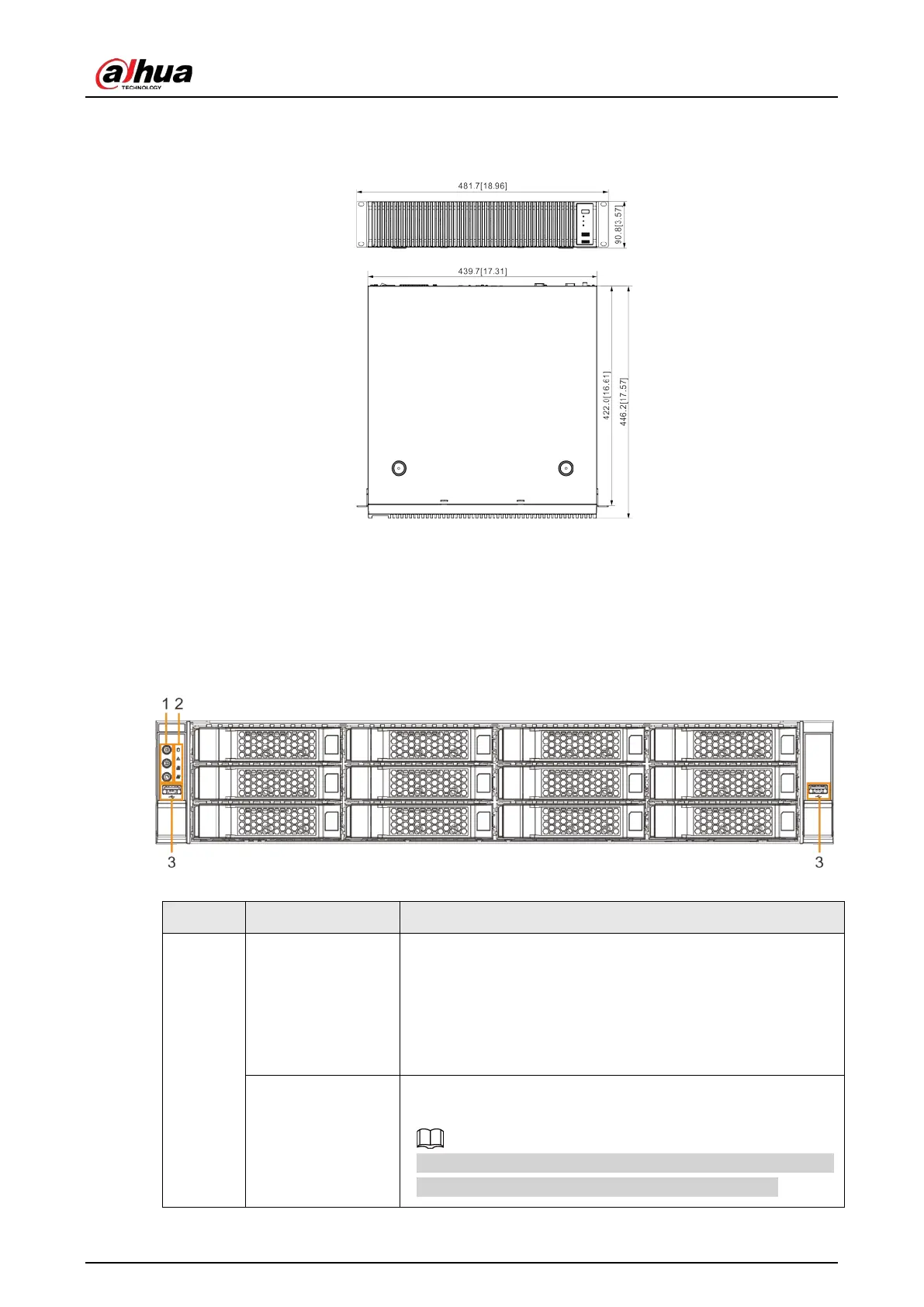

Figure 2-5 Dimension (mm [inch])
2.2 12-HDD Series
2.2.1 Front Panel
Figure 2-6 Front panel
Table 2-3 Front panel description
1
Power
Boot up or shut down device. Power indicator light status is as
follows:
●
When device is off (indicator light is off), press the button
for a short period to boot up device.
●
When device is running, (blue indicator light is on), press
the button for at least 4 seconds to shut down the device.
ID button
Position button. It is to used control the ID indicator light on
the rear panel to position the device.
ID button has the indicator light function. Its display status is
the same with the ID indicator light on the rear panel.
