Introduction to FC 300

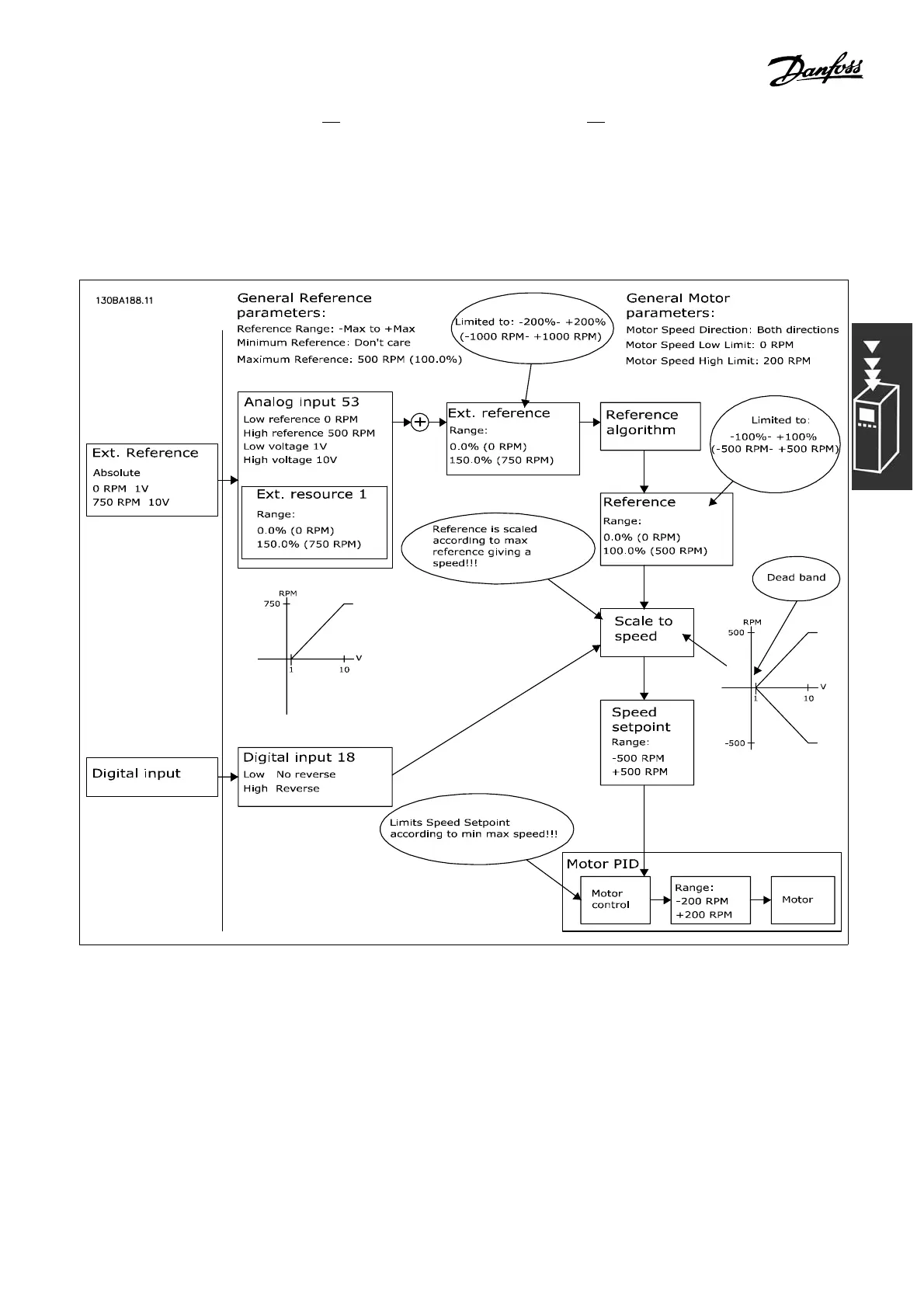

Case 2: Positive Reference with Dead band, Digital input to trigger rever se. Clamping ru les.
This Case shows how Reference input with limits outside -Max - +Max limits clamps to the
inputs low and high lim its before addition to Exte rnal reference. And how the External reference
is clamped to -Max - +Max by the Reference alg o rithm .
