How to Install

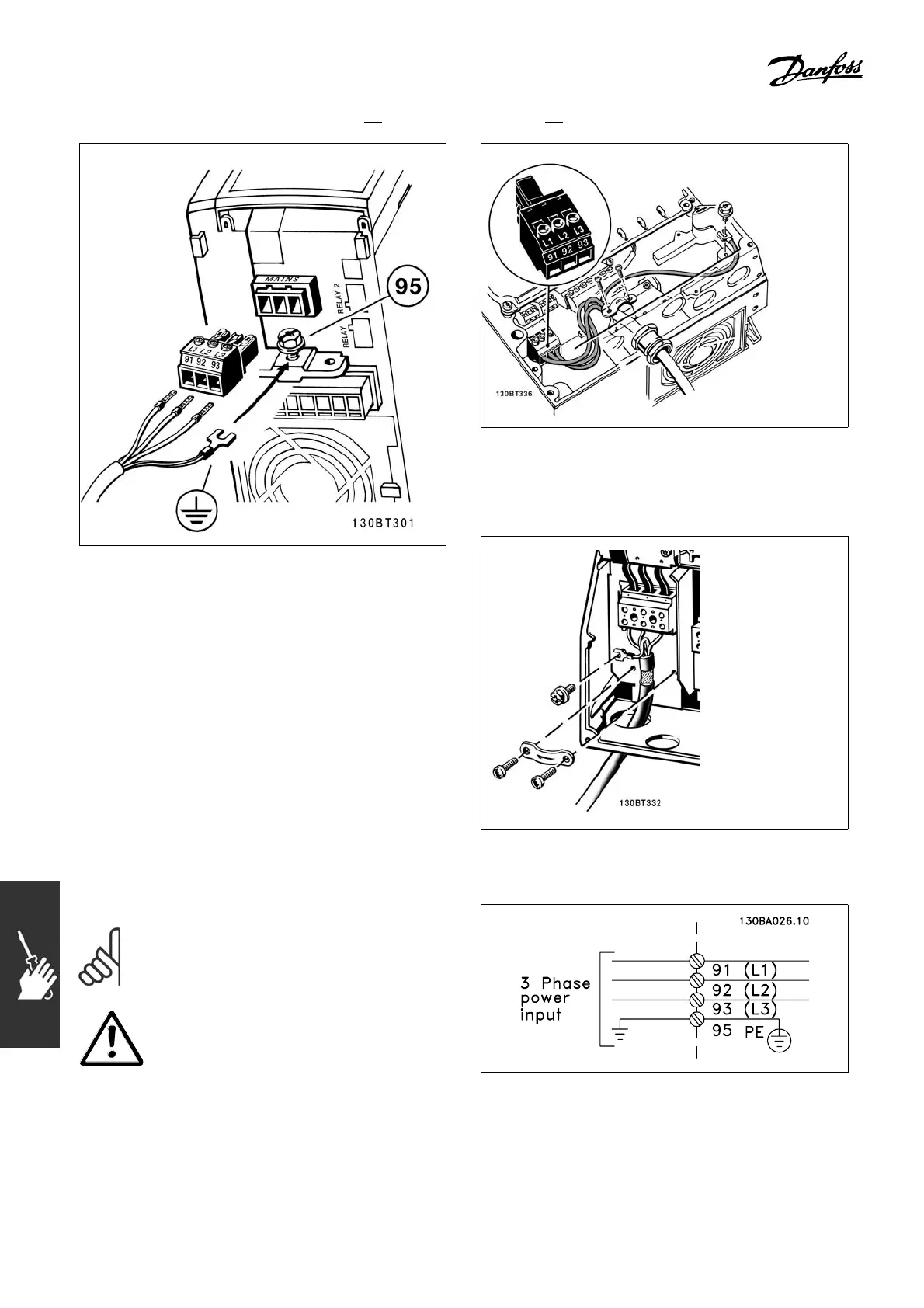

How to connect to the line supply and grounding
(A2 and A3 enclosure).
How to connect to the line supply and ground-
ing (A5 enclosure).
Howtoconnecttothelinesupplyandgrounding
(B1 and B2 enclosure).
NOTE
Check that AC line voltage corresponds to
the line voltage of the FC 300 nameplate.
IT Line
Do not conne
ct 400 V adjustable
frequency drives with RFI filters to line
supplies with a voltage between p h ase
and grou
nd of more tha n 440 V.
For IT lines and delta ground (grounded leg),
line voltage may exceed 440 V betw een
phase a
nd ground.
Terminals for line supply a nd grounding.
98
MG.33.B6.22 - VLT is a registered Danfoss trademark
