10.2.19 Dimensions of the Control Unit Mounting Plate
20
(0.79)
39.5
(1.55)
3.5
(0.14)
234
(9.21)
212.25
(8.36)
27.5
(1.08)
Ø5
(0.2)
16.75
(0.66)
e30bi575.11

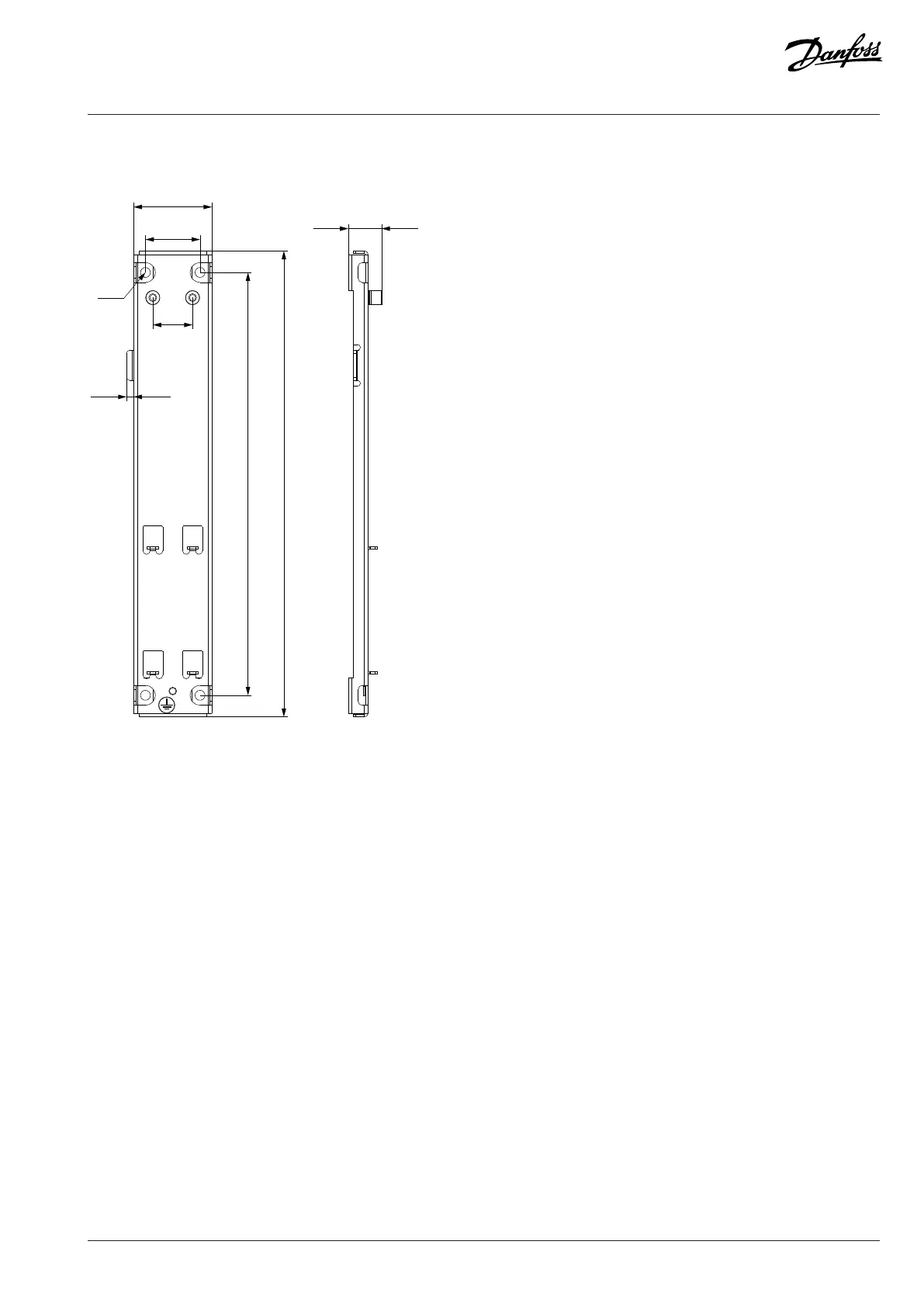

Figure 145: Dimensions of the Modular Control Unit Mounting Plate in mm (in), 2 Places
