10.2.26 Dimensions of the Pre-charging Unit, UL
292
(11.5)
240
(9.45)
60
(2.36)
Ø6
(0.24)
60
(2.36)
263
(10.35)
239
(9.41)
30
(1.18)
15
(0.59)
240
(9.45)
112
(4.41)
115
(4.53)
156
(6.14)
e30bj822.11

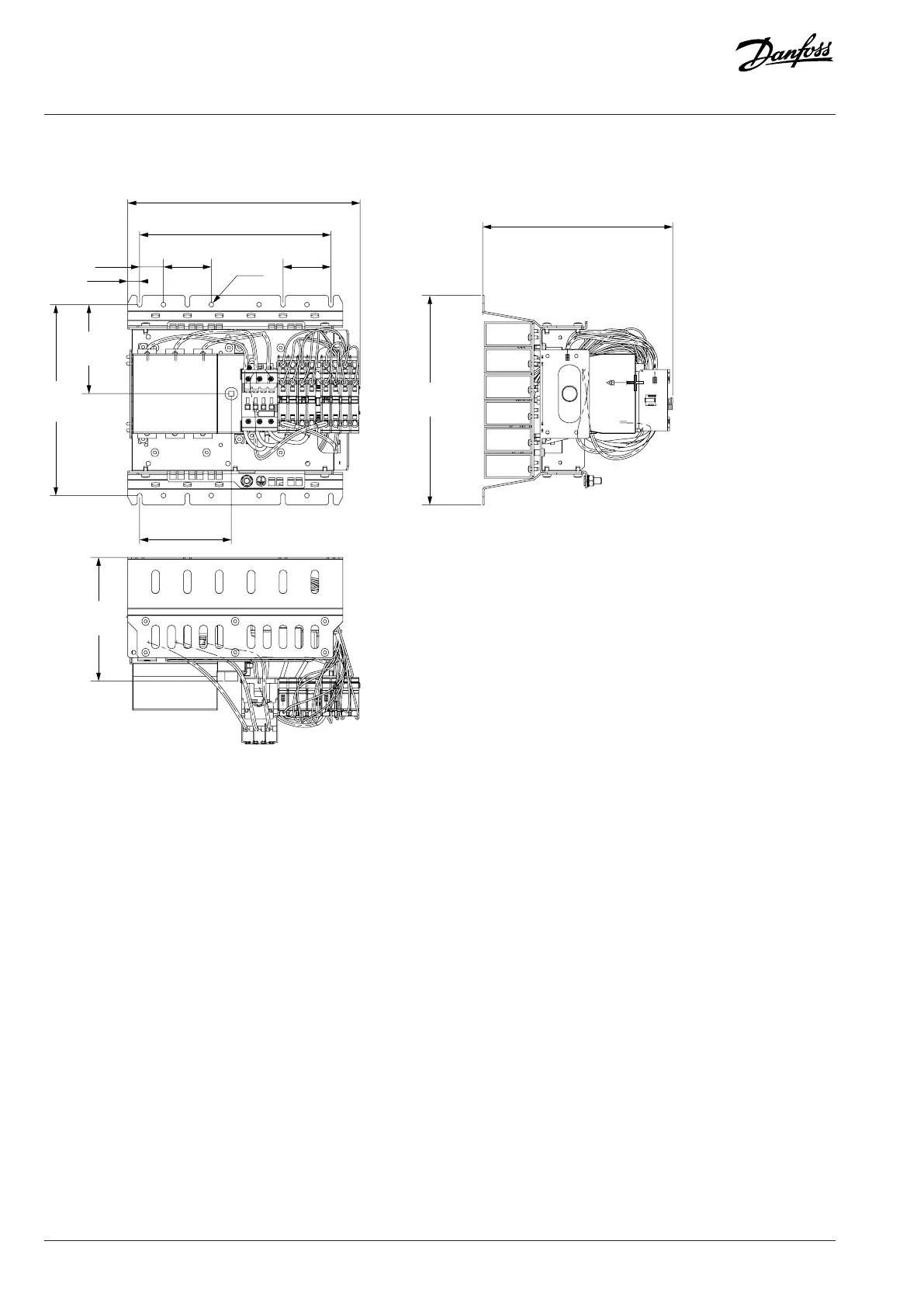

Figure 153: Dimensions of the Pre-charging Unit in mm (in), UL
152 | Danfoss Drives Oy © 2024.03 AJ475942178716en-000101 / 172K2848A
Design Guide | iC7 Series Liquid-cooled System Modules
