Danfoss iC7 Series Design Guide

Design Guide | iC7 Series Liquid-cooled System Modules
10.2.27 Dimensions of the DC Fuses, xx10L
13
(0.51)
40
(1.57)
35
(1.37)
37 (1.45)
198 (7.79)
110 (4.33)
26 (1.02)
155 ± 3
(6.10)
4
(0.15)
113 (4.44)
0.5
(0.01)
2 × M10 Max 20 (0.78)
e30bl501.10

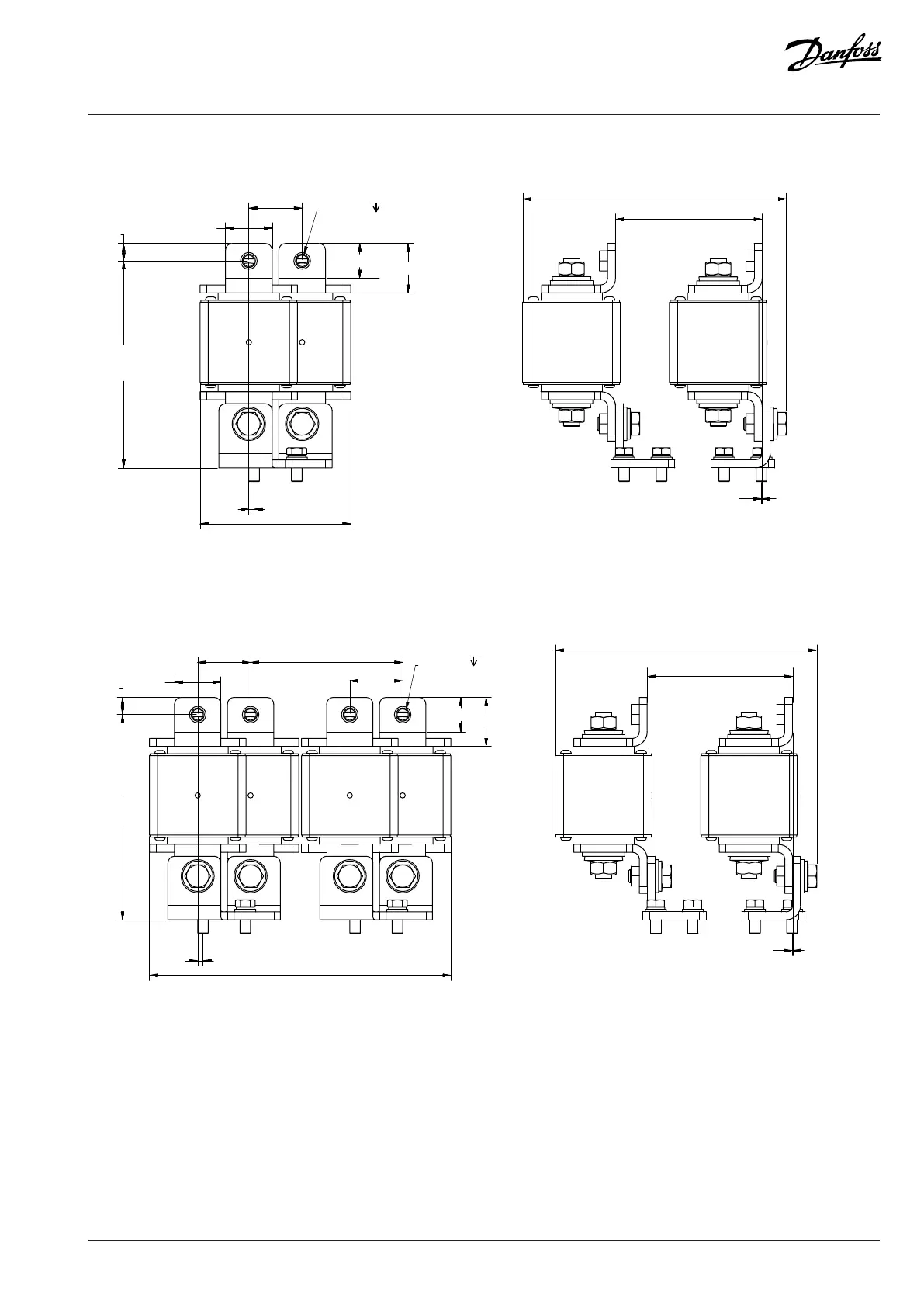

Figure 154: Dimensions of the DC Fuses, AR10L, IR10L, DR10L, AM10L, IM10L, DM10L, in mm (in)
10.2.28 Dimensions of the DC Fuses, xx12L
13
(0.51)
40
(1.57)
40
(1.57)
35
(1.37)
198 (7.79)
110 (4.33)
155 ± 3
(6.10)
4
(0.15)
228 (8.97)
115(4.52)
0.5
(0.01)
37 (1.45)
26 (1.02)
4 × M10
Max 20 (0.78)
e30bl502.10
Figure 155: Dimensions of the DC Fuses, AR12L, IR12L, DR12L, AM12L, IM12L, DM12L, in mm (in)
Danfoss Drives Oy © 2024.03 AJ475942178716en-000101 / 172K2848A | 153
