Table 10: Examples of Measured Coolant Flow Rates of IR12L
Channel 1 flow rate (l/min) Channel 2 flow rate (l/min) Total flow rate (l/min)
11.6 25.2 36.8
14.7 32.4 47.1
17.4 38.3 55.7
18.2 40.2 58.4
Table 11: Examples of Measured Coolant Flow Rates of AR12L
Channel 1 flow rate (l/min) Channel 2 flow rate (l/min) Total flow rate (l/min)
12.8 21 33.8
16.4 26.8 43.2
19.3 31.7 51
20.2 33.1 53.3
6.4.4 Volume of the Pipe
[L]
[m]
0.6
0.5
0.4
0.3
0.2
0.1
0
0
0.2
0.4
0.6 0.8
1
e30bh471.10
E
F
G
A
B
C
D
A 8 mm B 10 mm
C 12 mm D 13 mm
E 16 mm F 19 mm
G 25 mm

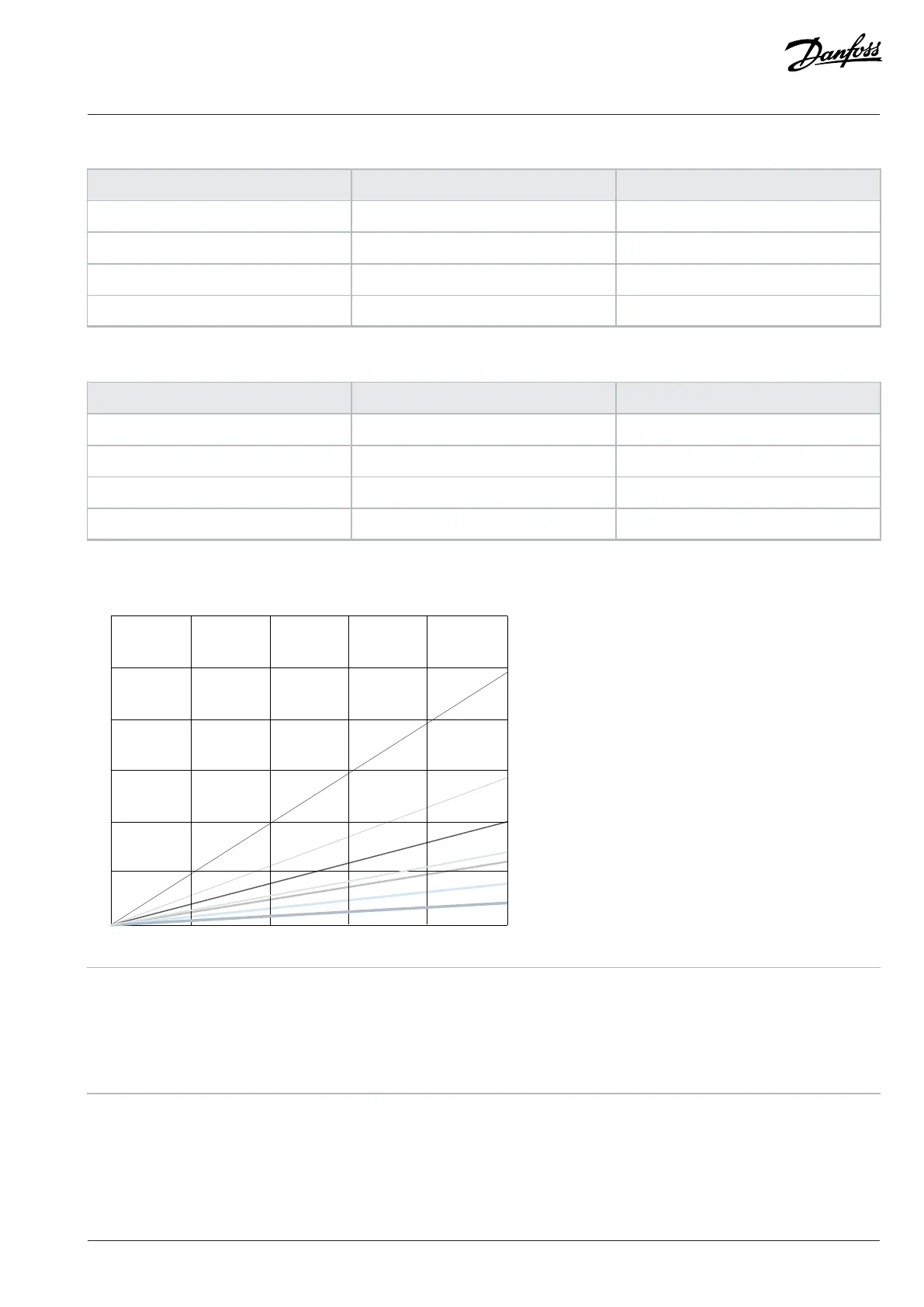

Figure 24: Volume of the Pipe with Different Inside Diameters, 8–25 mm
Danfoss Drives Oy © 2024.03 AJ475942178716en-000101 / 172K2848A | 43
