Design Guide | iC7 Series Liquid-cooled System Modules

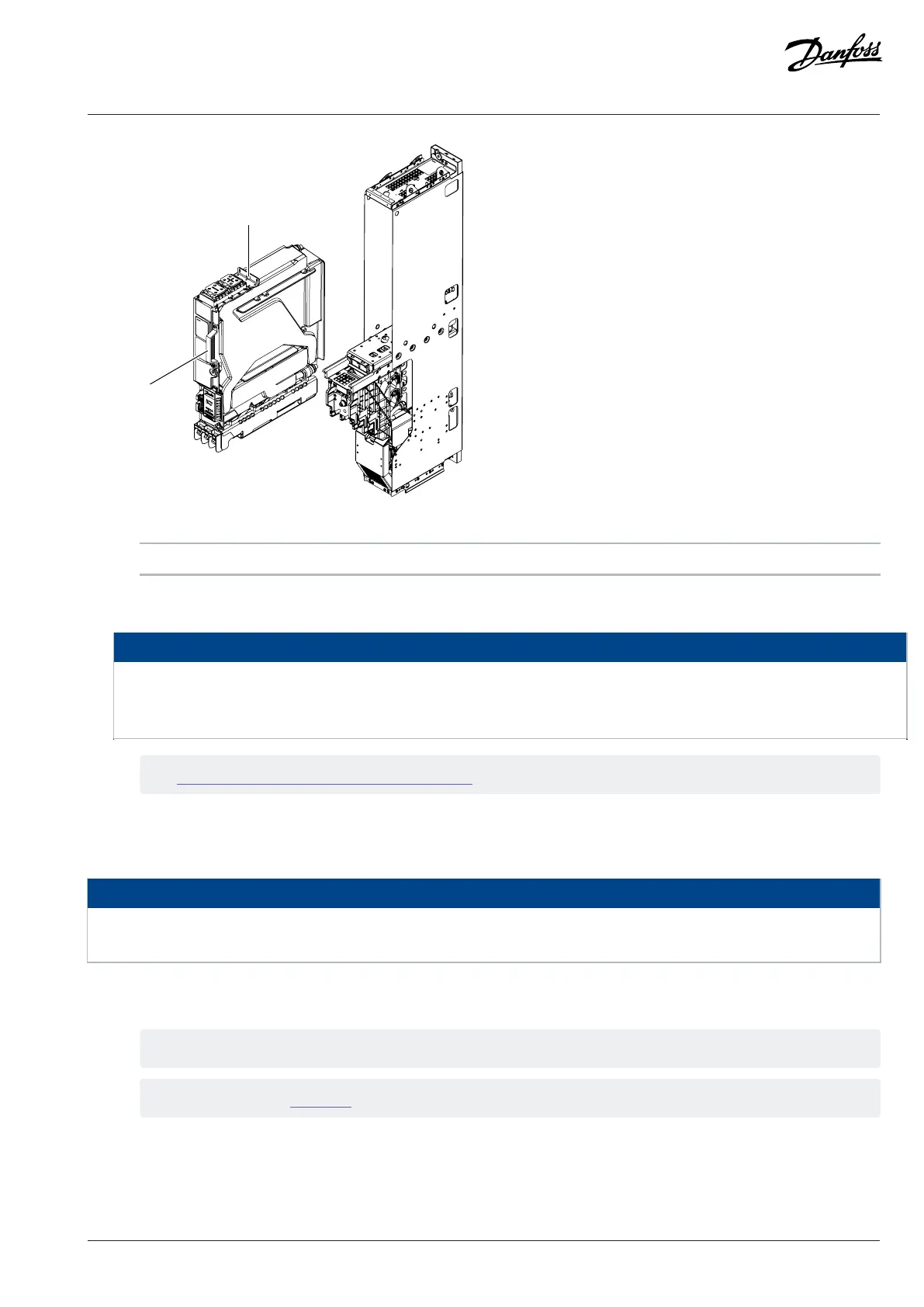

Figure 121: Lifting the System Module from the Integration Unit
1 Handle 2 Lifting point
8. Drain the system module before storage or transportation.
NOTICE
When the system module is removed, the cooling circuit is filled with coolant. If the module is not drained, the coolant in the
cooling channels expands as a function of temperature, and can break the components in the module.
l Always drain the system module before storage or transportation.
See 9.7.2 Draining the Power Units for xR10L and xR12L.
9.6 Installing the System Module in the Integration Unit
Before you begin:
NOTICE
MODULE COMPATIBILITY
Do not install modules with different configurations in the same drive system.
1. If necessary, use a lifting device to lift the system module in the integration unit. Attach the lifting device on the top of the
system module and use the handle to move the module and push it in the integration unit.
The weight of the system module is approximately 40 kg (88 lb).
See the lifting points in Figure 121.
2. To make sure that the push-in cooling connectors at the back of the system module are connected properly, push the system
module all the way to the back of the integration unit.
Danfoss Drives Oy © 2024.03 AJ475942178716en-000101 / 172K2848A | 121
