Danfoss iC7 Series Design Guide

10.2.22 Dimensions of the I/O and Relay Option
19.8
(0.78)
Ø4.8
(0.19)
9.8
(0.38)
69.3
(2.73)
e30bi579.11
8
(0.31)
4.5
(0.18)
196
(7.72)
189
(7.44)
1
(0.04)
Ø4
(0.16)

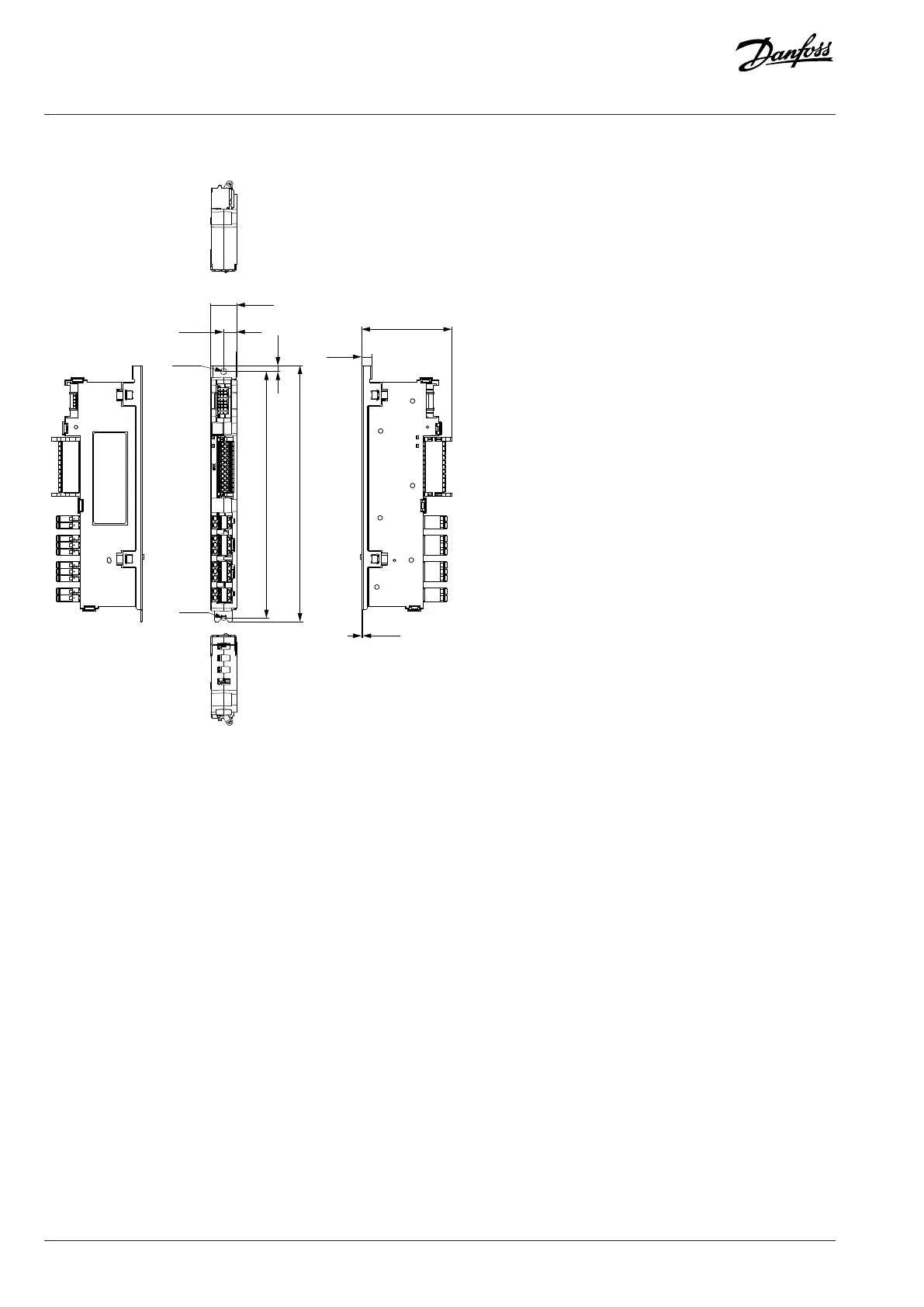

Figure 149: Dimensions of the I/O and Relay Option in mm (in)
148 | Danfoss Drives Oy © 2024.03 AJ475942178716en-000101 / 172K2848A
Design Guide | iC7 Series Liquid-cooled System Modules
