Design Guide | iC7 Series Liquid-cooled System Modules

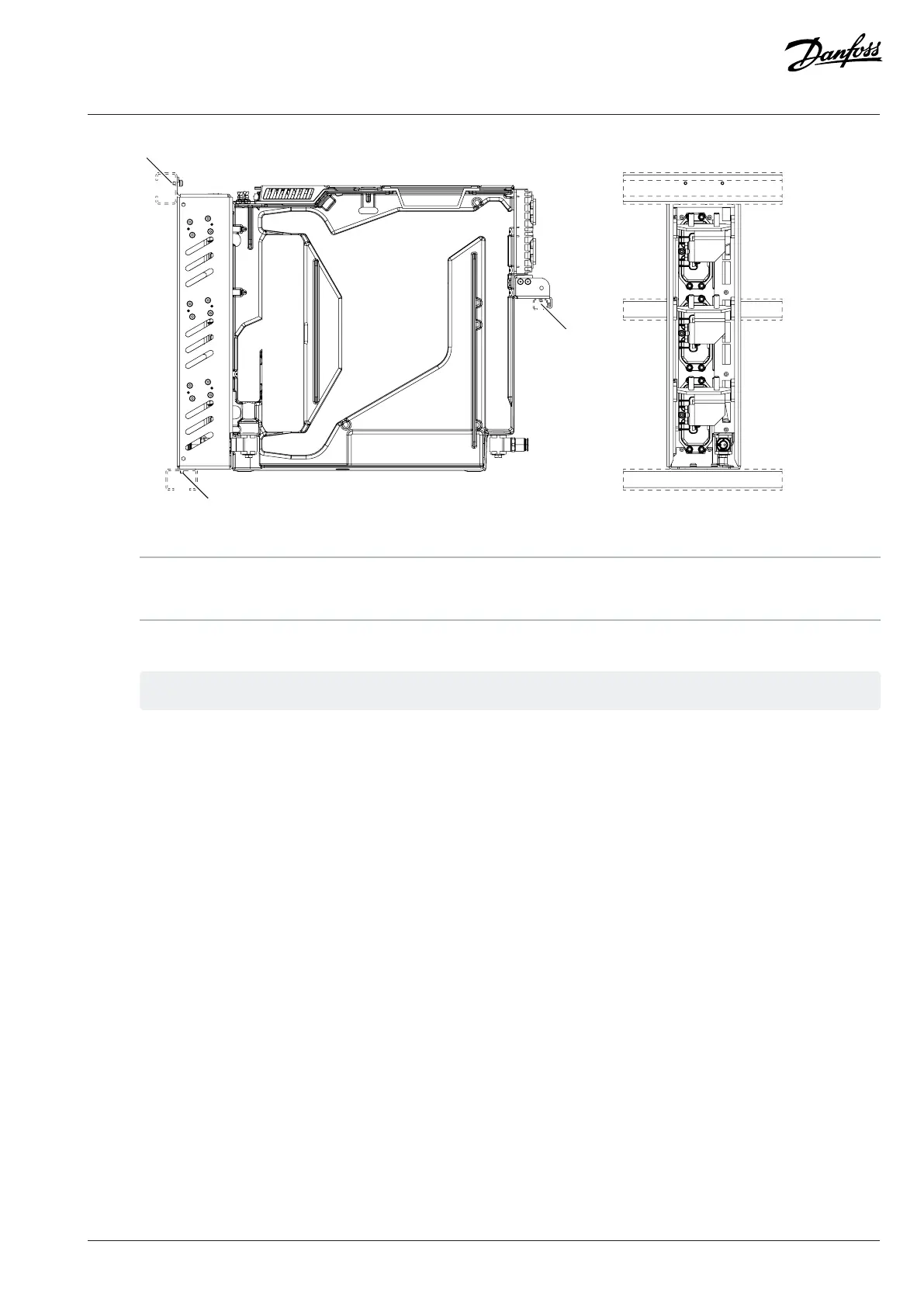

Figure 15: Mounting Holes of the System Module on its Backside
1 Mounting holes 2 View from the side
3 View from the bottom
3. Attach the system module to the mounting brackets of the cabinet.
The mounting brackets are not included in the delivery.
5.3.4 Installing System Modules with Integration Units
5.3.4.1 Installing System Modules with Integration Units into a Cabinet Vertically
1. Install the system module into the cabinet in a vertical position.
2. Use mounting holes to attach the system module into the cabinet.
a. For aluminum parts, use M6 grade 8.8 screws with a thread depth of 6–14 mm (0.24–0.55in), and a tightening torque of 6–
8 Nm (53–71 in-lb).
b. For sheet metal parts, use M5 (DIN 7500) screws with a maximum thread depth of 20 mm (0.78 in), and a tightening torque
of 3–4 Nm (27–35 in-lb).
